Advantech BB-LR77 v2 Series
Cellular Routers LTE
BB-LR2 X 710 X X X
- Designed for M2M applications
- WiFi, M-BUS and Modbus TCP / Modbus RTU
- Modular design to fit application requirements
- Single or dual SIM cards for redundant backhaul
- LTE up to 50 Mbps upload to 100 Mbps download
- Open LINUX platform & advanced networking functions
- Advanced security features
4G LTE router LR77 v2 provides wireless connection of equipment and devices via Ethernet 10/100 or serial interfaces to the Internet or intranet. 4G router LR77 v2 is ideal for transferring large data loads. With LTE its ultra fast data transfer speed reaches up to 100 Mbit/s download and up to 50 Mbit/s upload. The LR77 v2 series is an ideal wireless solution for traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals, etc.
This extra fast 4G LR77 v2 wireless router is equipped with one Ethernet 10/100, one USB Host port, one binary input/output (I/O) port and one SIM card. To save and backup communication data, a version with 2 x SIM cards is available. A wide range of user-defined interface options further expands optional Port1 and Port2. Port1 is available as an Ethernet port 10/100, serial interface ports RS232/RS485/RS422/M-Bus/WiFi or (I/O - CNT). Port2 may be equipped with serial interfaces RS232/RS485/ RS422/M-Bus or (I/O - CNT). Another option is inserting a XC-SW board to provide 3 x switched Ethernet 10/100 ports. Routers are available in either plastic or metal casings. FULL version of the router is equipped with GPS.
Configuration is done via web interface protected by password. The 4G LTE router supports creation of VPN tunnels using IPsec, OpenVPN and L2TP to ensure safe communications. Web interface provides detailed statistics about router activities, signal strength, detailed log, etc. Supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, HTTPS, SSH, OSPF, RIP, BGP control by SMS and many other functions.
Other diagnostic functins to ensure continuous communication include automatic inspection of PPP connection with an automatic restart feature in case of connection losses and a hardware watchdog which monitors the status of the router. With the help of a start up script window you may insert Linux scripts for various actions. For some applications it is possible to create several different configurations or profiles for router (maximum of 4), and the option to switch between them (for example via SMS, binary input status, etc.). Cellular LTE wireless router LR77 v2 supports automatic upgrade of configuration and firmware from the server. This allows mass reconfiguration of multiple routers in one time. It is also possible to develop user defined modules that modify LTE router behavior.
APPLICATIONS
- Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Meteorology, alarm and warning systems
SPECIFICATIONS
FIXED INTERFACES - BASIC VERSION | |
1× Ethernet | 10/100 Mbits, independent or bridged |
1× SIM | SIM Card |
1× I/O | Binary input/output |
1× USB | USB 2.0 Host, Type A |
OPTIONAL INTERFACES | |
1× PORT 1 | Ethernet (10/100Mbps), RS232, RS422/485, M-BUS, I/O Input/Output, Ethernet Switch (with PORT 2) |
ANTENNA CONNECTORS | |
2× SMA | – 50 Ohm |
FIXED INTERFACES - FULL VERSION | |
1× Ethernet | 10/100 Mbits, independent or bridged |
2× SIM | SIM Card |
1× I/O | Binary input/output |
1× USB | USB 2.0 Host, Type A |
OPTIONAL INTERFACES | |
1× PORT 1 | Ethernet (10/100Mbps), RS232, RS422/485, M-BUS I/O Input/Output, Ethernet Switch (with PORT 2) |
1× PORT 2 | RS232, RS422/485, M-BUS, WMBUS, WiFi Ethernet Switch (with PORT 1) |
1× Optional | 2nd SIM card holder (“F” router versions) |
ANTENNA CONNECTORS | |
3× SMA | – 50 Ohm |
POWER | |
Source | 9 - 36 VDC |
Consumption | Idle - 2.3 W GPRS - to 3.5 W (GPRS transmission) LTE - to 5.5 W (LTE transmission) |
MECHANICAL | |

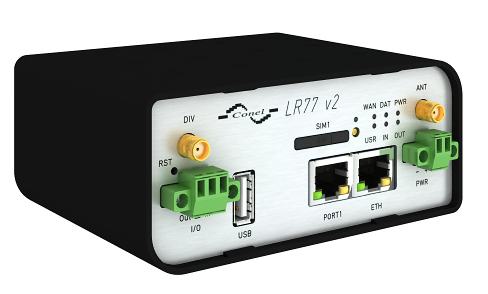

Dimension Plastic version | 51 x 87 x 116mm |

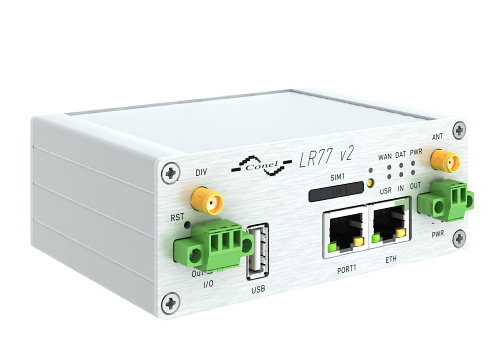

Dimension Metallic version | 42 x 87 x 113mm |
Protection | IP30 |
Weight Plastic version | 150g |
Weight Metallic version | 280g |
ENVIRONMENTAL | |
Operating Temperature | -40 to +75°C |
Storage Temperature | -40° to +85°C |
Humidity | Operating - 0 to 95% relative humidity non condensing Storage - 0 to 95% relative humidity non condensing |
WIFI *optional (“F” router versions) | |
Antenna connector | R-SMA – 50 Ohms |
Supported WiFi band | 2.4 GHz |
Standards | 802.11b, 802.11g, 802.11n |
2.4 GHz supported channels | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
RX Sensitivity | 11b, 11 Mbps: typ. -85 dBm 11g, 54 Mbps: typ. -70 dBm (HT20) 11n, MSC7: typ. -66 dBm (HT40) 11n, MSC7: typ. -62 dBm |
TX Output Power | 11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm 11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm 802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm 802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm |
Type of device | Access point, station |
GPS SPECIFICATIONS | |
Antenna | 50 Ohms – active |
Protocols | NMEA 0183 v3.0 |
Frequency | 1575.42MHz |
Sensitivity | Tracking: -161dBm Acquisition (Assisted): -158dBm Acquisition (Standalone): -145dBm |
Acquisition time | Hot start: 1 s Warm start: 29 s Cold start: 32 s |
Accuracy | Horizontal: < 2m (50 %); < 5m (90 %) Altitude: < 4m (50 %); < 8m (90 %) Velocity: < 0.2 m/s |
CPU & MEMORY | |
CPU | 32b ARM microprocessor, 0.25 DMIPS per MHz |
Flash memory | 16 MB DDR SDRAM |
RAM | 64 MB |
M-RAM | 128 kB |
I/O PORT (CNT) | |
Binary input | Reed contact with trigger level 1.3 up to 1.4 V |
Binary output | 100 mA/ max. 30 V |
PARAMETERS - LTE module | |
LTE parameters | Bit rate 100 Mbps (DL) / 50 Mbps (UL) 3GPP rel. 8 standard Supported bandwidths: 5 MHz, 10 MHz, 20 MHz Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz |
HSPA+ parameters | Bit rate 42 Mbps (DL) / 5,76 Mbps (UL) 3GPP rel. 7 standard UE CAT. 1 to 6, 8, 10, 12, 14 3GPP data compression Supported frequencies: 900 / 1800 / 2100 MHz |
UMTS parameters | PS bit rate 384 kbps (DL) / 384 kbps (UL) CS bit rate 64 kbps (DL) / 64 kbps (UL) W-CDMA FDD standard Supported frequencies: 900 / 1800 / 2100 MHz |
GPRS/EDGE | Bit rate 237 kbps (DL) / 59,2 kbps (UL) GPRS multislot class 10, CS 1 to 4 EDGE multislot class 12, CS 1 to 4, MCS 1 to 9 Supported frequencies: 900 / 1800 MHz |
GPRS/EDGE - Supported Power Classes | EGSM 900: Class 4 (33 dBm) GSM 1800: Class 1 (30 dBm) EDGE 900: Class E2 (27 dBm) EDGE 1800: Class E2 (26 dBm) |
STANDARDS/REGULATIONS | |
Telecom and Emission | ETSI EN 301 511 V9.0.2 (2003-03), ETSI EN 301 908-2 V11.1.1 (2016-07), ETSI EN 301 908-13 V11.1.1 (2016-07), ETSI EN 300 328 V2.1.1 (2016-11), ETSI EN 300 220-2 V3.1.1 (2017-02) |
EMC | ETSI EN 301 489-1 V2.1.1 (2016-11), ETSI EN 301 489-17 V3.1.1 (2017-02), ETSI EN 301 489-3 V2.1.1 (2017-03) |
Safety | EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011 |
ORDERING INFORMATION
Available Modules - Basis Version | |
BB-LR2B710010 | LR77 v2BG, EMEA, 1x ETH, Plastic, No ACC |
BB-LR2B710011 | LR77 v2BG, EMEA, 1x ETH, Plastic |
BB-LR2B710012 | LR77 v2BG, EMEA, 1x ETH, Plastic, ACC UK |
BB-LR2B710020 | LR77 v2BG, EMEA, 1x ETH, Metal, No ACC |
BB-LR2B710021 | LR77 v2BG, EMEA, 1x ETH, Metal |
BB-LR2B711010 | LR77 v2BG, EMEA, 2x ETH, Plastic, No ACC |
BB-LR2B711011 | LR77 v2BG, EMEA, 2x ETH, Plastic |
BB-LR2B711021 | LR77 v2BG, EMEA, 2x ETH, Metal |
BB-BB-LR2B712011 | LR77 v2BG, EMEA, 1x ETH, 1x RS232, Plastic |
BB-LR2B712021 | LR77 v2BG, EMEA, 1x ETH, 1x RS232, Metal |
BB-LR2B713011 | LR77 v2BG, EMEA, 1x ETH, 1x RS485, Plastic |
BB-LR2B713021 | LR77 v2BG, EMEA, 1x ETH, 1x RS485, Metal |
BB-LR2B714011 | LR77 v2BG, EMEA, 1x ETH, 1x RS422, Plastic, ACC EU |
BB-LR2B716011 | LR77 v2BG, EMEA, 1x ETH, 1x CNT, Plastic |
BB-LR2B716020 | LR77 v2BG, EMEA, 1x ETH, 1x CNT, Metal, No ACC |
BB-LR2B716021 | LR77 v2BG, EMEA, 1x ETH, 1x CNT, Metal |
Available Modules - Full Version | |
BB-LR2F710010 | LR77 v2FG, EMEA, 1x ETH, Plastic, No ACC |
BB-LR2F710011 | LR77 v2FG, EMEA, 1x ETH, Plastic |
BB-LR2F710012 | LR77 v2FG, EMEA, 1x ETH, Plastic, ACC UK |
BB-LR2F710020 | LR77 v2FG, EMEA, 1x ETH, Metal, No ACC |
BB-LR2F710021 | LR77 v2FG, EMEA, 1x ETH, Metal |
BB-LR2F710022 | LR77 v2FG, EMEA, 1x ETH, Metal, ACC UK |
BB-LR2F710710 | LR77 v2FG, EMEA, 1x ETH, WIFI, Plastic, No ACC |
BB-LR2F710711 | LR77 v2FG, EMEA, 1x ETH, WIFI, Plastic |
BB-LR2F710711-5 | LR77 v2FG, EMEA, 1x ETH, WIFI, Plastic, ACC EU |
BB-LR2F710714-SWH | LR77 v2FG, EMEA, 1x ETH, WIFI, Plastic, ACC US |
BB-LR2F710720 | LR77 v2FG, EMEA, 1x ETH, WIFI, Metal, No ACC |
BB-LR2F710721 | LR77 v2FG, EMEA, 1x ETH, WIFI, Metal, ACC EU |
BB-LR2F710721-3 | LR77 v2FG, EMEA, 1x ETH, WIFI, Metal, ACC EU |
BB-LR2F711011 | LR77 v2FG, EMEA, 2x ETH, Plastic, ACC EU |
BB-LR2F711020 | LR77 v2FG, EMEA, 2x ETH, Metal, No ACC |
BB-LR2F711021 | LR77 v2FG, EMEA, 2x ETH, Metal, ACC EU |
BB-LR2F711211 | LR77 v2FG, EMEA, 2x ETH, 1x RS232, Plastic |
BB-LR2F711221 | LR77 v2FG, EMEA, 2x ETH, 1x RS232, Metal |
BB-LR2F711311 | LR77 v2FG, EMEA, 2x ETH, 1x RS485, Plastic |
BB-LR2F711321 | LR77 v2FG, EMEA, 2x ETH, 1x RS485, Metal |
BB-LR2F711710 | LR77 v2FG, EMEA, 2x ETH, WIFI, Plastic, No ACC |
BB-LR2F711711 | LR77 v2FG, EMEA, 2x ETH, WIFI, Plastic |
BB-LR2F711711-3 | LR77 v2FG, EMEA, 2x ETH, WIFI, Plastic, ACC EU |
BB-LR2F711720 | LR77 v2FG, EMEA, 2x ETH, WIFI, Metal, No ACC |
BB-LR2F711720-3 | LR77 v2FG, EMEA, 2x ETH, WIFI, Metal, No ACC |
BB-LR2F711721 | LR77 v2FG, EMEA, 2x ETH, WIFI, Metal |
BB-LR2F711721-3 | LR77 v2FG, EMEA, 2x ETH, WIFI, Metal, ACC EU |
BB-LR2F711921 | LR77 v2FG, EMEA, 2x ETH, Metal, ACC EU |
BB-LR2F712011 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, Plastic, ACC EU |
BB-LR2F712012 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, Plastic, ACC UK |
BB-LR2F712014-SWH | LR77 v2FG, EMEA, 1x ETH, 1x RS232, Plastic, ACC US |
BB-LR2F712021 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, Metal |
BB-LR2F712211 | LR77 v2FG, EMEA, 1x ETH, 2x RS232, Plastic |
BB-LR2F712211-SWH | LR77 v2FG, EMEA, 1x ETH, 2x RS232, Plastic, ACC EU |
BB-LR2F712214-SWH | LR77 v2FG, EMEA, 1x ETH, 2x RS232, Plastic, ACC US |
BB-BB-LR2F712220 | LR77 v2FG, EMEA, 1x ETH, 2x RS232, Metal, No ACC |
BB-LR2F712221 | LR77 v2FG, EMEA, 1x ETH, 2x RS232, Metal |
BB-LR2F712311 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, 1x RS485, Plastic, ACC EU |
BB-LR2F712321 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, 1x RS485, Metal |
BB-LR2F712322 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, 1x RS485, Metal, ACC UK |
BB-LR2F712721 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, WIFI, Metal |
BB-LR2F712721-3 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, WIFI, Metal, ACC EU |
BB-LR2F713011 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, Plastic, ACC EU |
BB-LR2F713014-SWH | LR77 v2FG, EMEA, 1x ETH, 1x RS485, Plastic, ACC US |
BB-LR2F713021 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, Metal, ACC EU |
BB-LR2F713311-SWH | LR77 v2FG, EMEA, 1x ETH, 2x RS485, Plastic, ACC EU |
BB-LR2F713511 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, 1x MBUS, Plastic, ACC EU |
BB-BB-LR2F713521 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, 1x MBUS, Metal, ACC EU |
BB-LR2F715010 | LR77 v2FG, EMEA, 1x ETH, 1x MBUS, Plastic, No ACC |
BB-LR2F715011 | LR77 v2FG, EMEA, 1x ETH, 1x MBUS, Plastic, ACC EU |
BB-LR2F715311 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, 1x MBUS, Plastic, ACC EU |
BB-LR2F715510 | LR77 v2FG, EMEA, 1x ETH, 2x MBUS, Plastic, No ACC |
BB-LR2F715821-4 | LR77 v2FG, EMEA, 1x ETH, 1x MBUS, 1x WMBUS, Metal, ACC EU |
BB-LR2F715822 | LR77 v2FG, EMEA, 1x ETH, 1x MBUS, 1x WMBUS, Metal, ACC UK |
BB-LR2F716021 | LR77 v2FG, EMEA, 1x ETH, 1x CNT, Metal, ACC EU |
BB-LR2F716211 | LR77 v2FG, EMEA, 1x ETH, 1x RS232, 1x CNT, Plastic, ACC EU |
BB-LR2F716311 | LR77 v2FG, EMEA, 1x ETH, 1x RS485, 1x CNT, Plastic, ACC EU |
BB-LR2F716521 | LR77 v2FG, EMEA, 1x ETH, 1x MBUS, 1x CNT, Metal, ACC EU |
BB-LR2F716620 | LR77 v2FG, EMEA, 1x ETH, 2x CNT, Metal, No ACC |
BB-LR2F716711 | LR77 v2FG, EMEA, 1x ETH, 1x CNT, WIFI, Plastic, ACC EU |
BB-LR2F716720-5 | LR77 v2FG, EMEA, 1x ETH, 1x CNT, WIFI, Metal, No ACC |
BB-LR2F716721 | LR77 v2FG, EMEA, 1x ETH, 1x CNT, WIFI, Metal |
BB-LR2F719011 | LR77 v2FG, EMEA, 3x ETH, Plastic |
BB-LR2F719021 | LR77 v2FG, EMEA, 3x ETH, Metal |
