Advantech BB-D9D15M

DB15M TO DEUTSCH 9 CBL 40 INCH

Advantech BB-D9D15M
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Provides a quick interconnection between a Deutsch connector and B+B’s J1708 and J1939 adapters equipped with DB15 connectors
  • Overmolded cables are 40 inches (1.0 m)
  • Strain relief molded into both ends
  • Conductors are 20 gauge

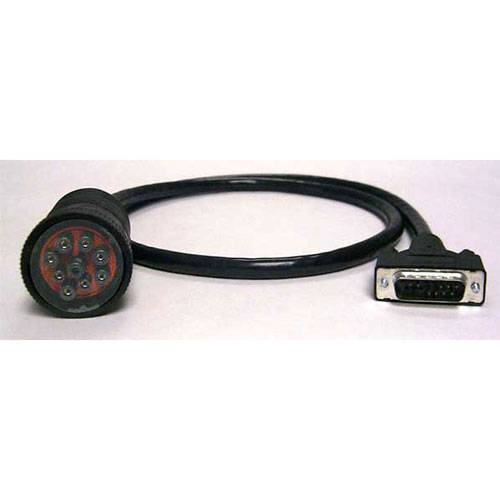

The D9D15M provides a quick interconnection between a Deutsch 9-pin connector and B&B’s J1708 adapters equipped with DB15 connectors. The overmolded cable is 40 inches long (1.0 m) and has a strain relief molded into both ends. The cable pinout is listed in the chart below. All conductors are 20 gauge.
ProdGrafik

ORDERING INFORMATION

Available Modules - Basis Version
BB-D9D15M DB15M TO DEUTSCH 9 CBL 40 INCH
