Advantech BB-MDR-100 Series

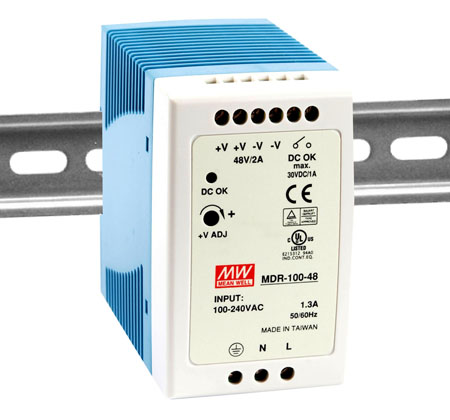

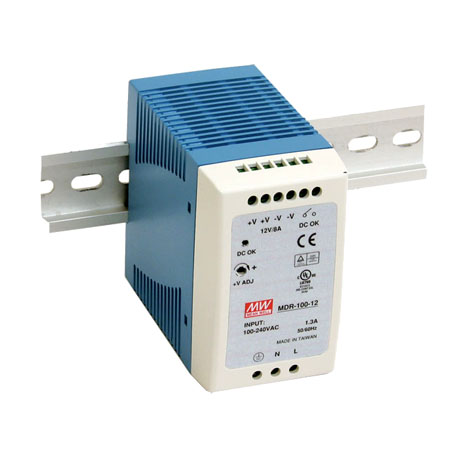

Model serie MDR-100 is an industrial single-phase, low-profile, low cost power supply suitable for installations where space is at a premium - ideal for control panels and other industrial, control and automation applications. This switched-mode unit features a wide operating temperature range, finger-safe terminals and protection from short-circuit, overload and over-voltage. The power supply is adaptable to TS-35 / 7.5 or 15 DIN mount installation.

SPECIFICATIONS

MODEL	MDR-100-12	MDR-100-24	MDR-100-48
OUTPUT
DC VOLTAGE	12V	24V	48V
RATED CURRENT	7.5A	4A	2A
CURRENT RANGE	0 ~ 7.5A	0 ~ 4A	0 ~ 2A
RATED POWER	90W	96W	96W
OUTPUT	120mVp-p	150mVp-p	200mVp-p
VOLTAGE ADJ. RANGE	12 ~ 15V	24 ~ 30V	48 ~ 56V
VOLTAGE TOLERANCE    Note.3	± 1.0%	± 1.0%	± 1.0%
LINE REGULATION	± 1.0%	± 1.0%	± 1.0%
LOAD REGULATION	± 1.0%	± 1.0%	± 1.0%
SETUP, RISE TIME     Note.5	3000ms, 50ms/230VAC      3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)	50ms/230VAC      20ms/115VAC at full load
INPUT
VOLTAGE RANGE   Note.6	85 ~ 264VAC      120 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR (Typ.)	PF
EFFICIENCY (Typ.)	83%	86%	87%
AC CURRENT (Typ.)	1.3A/115VAC      0.8A/230VAC
INRUSH CURRENT (Typ.)	COLD START 30A/115VAC      60A/230VAC
LEAKAGE CURRENT (Typ.)	<1mA / 240VAC
PROTECTION
OVERLOAD	105 ~ 150% rated output power
	Protection type :Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE	15.6 ~ 18V	31.2 ~ 36V	57.6 ~ 64.8V
	Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE	Shut down o/p voltage, auto-recovery or re-power on to recover
FUNCTION
DC OK SIGNAL	Relay contact rating(max.): 30V/1A resistive
ENVIRONMENT
WORKING TEMP.	-10 ~ +60 °C (Refer to "Derating Curve")
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-40 ~ +85 °C, 10 ~ 95% RH
TEMP. COEFFICIENT	± 0.03%/ °C °C (0 ~ 50)
VIBRATION	Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6
SAFETY &EMC (Note 4)
SAFETY STANDARDS	UL508, TUV EN60950-1 approved
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION	Compliance to EN55011, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS
MTBF	346K hrs min. MIL-HDBK-217F (25 °C )
DIMENSION	55*90*100mm (W*H*D)
PACKING	0.42Kg; 30pcs/13.6Kg/0.82CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. Deating maybe needed under low input voltages, please check the derating curve for more detail.

Ordering Information

Available Modules
BB-MDR-100-12	90W, 12VDC, 7.5A, AC-DC Single Output DIN Power Supply, Slim Plastic Case
BB-MDR-100-24	96W, 24VDC, 4A, AC-DC Single Output DIN Power Supply, Slim Plastic Case
BB-MDR-100-48	96W, 48VDC, 2A, AC-DC Single Output DIN Power Supply, Slim Plastic Case
