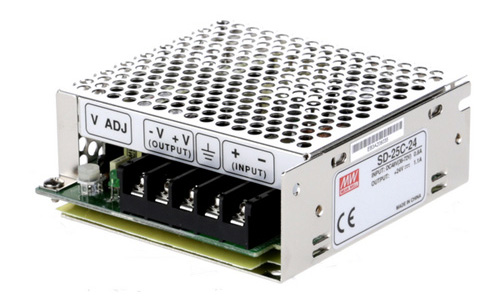

Advantech BB-SD-25 Serie

Power all your devices – no matter what the voltage. Many applications have devices that use different voltages. Mean Well DC-DC converters deliver the correct voltages to power other DC devices with differing voltage requirements. Mean Well converters are used in nearly every industry requiring low-to-medium DC-to-DC voltage conversion in the 15-1000 Watt range.

SPECIFICATIONS

MODEL	BB-SD-25B-12	BB-SD-25C-12	BB-SD-25A-24	BB-SD-25C-24
OUTPUT
DC VOLTAGE	12V		24V
RATED CURRENT	2-1 A		1.1 A
CURRENT RANGE	0 ~ 2.1A		0 ~ 1.1A
RATED POWER	25,2W		26,4W
RIPPLE & NOISE (max.)      Note.2	120mVp-p		150mVp-p
VOLTAGE ADJ. RANGE	11 ~16 VDC		23 ~30 VDC
VOLTAGE TOLERANCE     Note.3	± 1.0%		± 1.0%
LINE REGULATION	± 0.3%		± 0.2%
LOAD REGULATION	± 0.3%		± 0.2%
SETUP, RISE ,HOLD UP TIME	2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load
INPUT
VOLTAGE RANGE	A: 9.2 ~18VDC         B:18 ~ 36VDC         C:36~72VDC
EFFICIENCY(Typ.)	75%	78%	75%	81%
DC CURRENT(Typ.)	1.6A/24V	0.8A/48V	3.2A/12V	0.8A/48V
PROTECTION
OVER LOAD	105 ~160% rated output power
	Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE	16.8 ~ 20 V/10% load		31.5 ~ 37.5V/10% load
	Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
WORKING TEMP.	-10 ~ +60°C (Refer to "Derating Curve" )
WORKING HUMIDITY	20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-20 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT	± 0,03%/°C ( 0-50°C )
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes
SAFETY & EMC      (Note 4)
SAFETY STANDARDS	Design refer to LVD
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION	Compliance to EN55032(CISPR32) Class B
EMC IMMUNITY	Compliance to EN61000-4-2,3,4,6,8, EN55024, light industry level, criteria A
OTHERS
MTBF	374.3K hrs min.(SD-25A)        369.9K Hrs min.(SD-25B)         377.5K Hrs min.(SD-25C)         MIL-HDBK-217F (25°C)
DIMENSION	99*97*36mm (L*W*H)
PACKING	0.38Kg, 45 PCS/17.8Kg / 0.9 CUFT

Ordering Informaation

Available Modules
BB-SD-25A-24	25W, Single-output, DC-DC Converter – 24V, 1.1A, 9.2~18 Input
BB-SD-25B-5	25W, Single-output, DC-DC Converter – 5V, 2.1A, 19~36 Input
BB-SD-25B-12	25W, Single-output, DC-DC Converter – 12V, 2.1A, 19~36 Input
BB-SD-25C-12	25W, Single-output, DC-DC Converter – 12V, 2.1A, 36~72 Input
BB-SD-25C-24	25W, Single-output, DC-DC Converter – 24V, 1.1A, 36~72 Input
