Advantech BB-SDR-240 Series

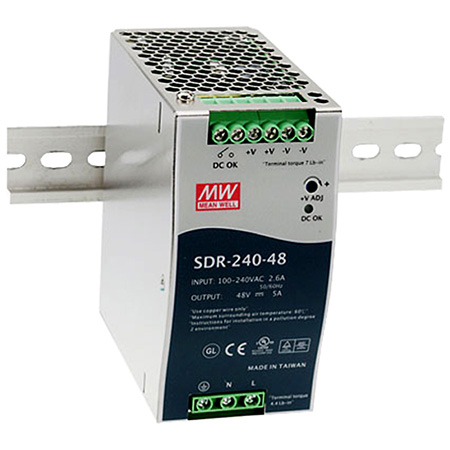

Model Series SDR-240 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s).

SPECIFICATIONS

MODEL	BB-SDR-240-24	BB-SDR-24-48
OUTPUT
DC VOLTAGE	24V	48V
RATED CURRENT	10A	5A
CURRENT RANGE	0 ~ 10A	0 ~ 5A
RATED POWER	240W	240W
PEAK CURRENT	15A	7.5A
PEAK POWER	360 W (3 sec.)
RIPPLE & NOISE (max.)	100mVp-p	120mVp-p
VOLTAGE ADJ. RANGE	24 ~ 28V	48 ~ 55V
VOLTAGE TOLERANCE	± 1.0%	± 1.0%
LINE REGULATION	± 0.5%	± 0.5%
LOAD REGULATION	± 1.0%	± 1.0%
SETUP, RISE TIME	1500ms, 60ms/230VAC        3000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.)	20ms/230VAC        20ms/115VAC at full load
INPUT
VOLTAGE RANGE	88 ~ 264VAC        124 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
POWER FACTOR (Typ.)	0.93/230VAC        0.99/115VAC at full load
EFFICIENCY (Typ.)	94%
AC CURRENT (Typ.)	2.6 A/115VAC        1.3A/230VAC
INRUSH CURRENT (Typ.)	33A/115VAC        65A/230VAC
LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION
OVERLOAD	Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery
	>150% rated power, constant current limiting with auto-recovery within 2 seconds and shut down o/p voltage after 2 seconds
OVER VOLTAGE	29 ~ 33V	56 ~ 65V
	Protection type : Shut down o/p voltage with auto-recovery
OVER TEMPERATURE	95 °C±5°C (TSW: detect on heatsink of power switch)
	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
DC OK REALY CONTACT RATINGS (max.)	60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT
WORKING TEMP.	-25 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY	20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY	-40 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT	± 0.03%/°C (0 ~ 50°C)
VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
SAFETY STANDARDS	Ul508, TUV EN60950-1 approved;(meet EN60204-1)
WITHSTAND VOLTAGE	I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC     O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION	Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A,SEMI F47, GL approved
OTHERS
MTBF	169.3K hrs min.        MIL-HDBK-217F (25°C)
DIMENSION	63*125.2*113.5mm (W*H*D)
PACKING	1.03Kg; 12pcs/13.4Kg/1.06CUFT

Ordering Information

Available Modules
BB-SDR-240-24	240W, 24VDC, 10A, AC-DC Industrial DIN Power Supply, Ultra Slim Metal Case
BB-SDR-240-48	240W, 48VDC, 5A, AC-DC Industrial DIN Power Supply, Ultra Slim Metal Case
