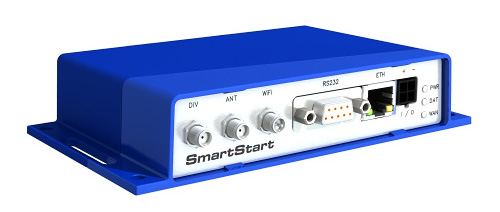

Advantech BB SmartStart SL30

Intelligent 4G LTE Router & Gateway

Advantech BB SmartStart SL30
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • For data applications
  • Ethernet, serial RS-232 and I/O for connecting a wide array of field assets with DIN rail or wall mounting
  • Low power consumption for solar and battery power applications
  • Exceptionally resilient wireless and wired connection
  • Enhanced memory to host custom software applications and a wide variety of protocols
  • Easy deployment, mass maintenance and troubleshooting with B+B SmartWorx remote management and monitoring tools
  • Loaded with advanced features to secure your data

The SmartStart™ LTE family of cellular routers and gateways are the perfect way to connect RS-232 and Ethernet devices to a cellular network. Industrial M2M and IoT applications include Ethernet lottery machines, ATM stations, kiosks, gaming terminals along with RS-232 traffic controllers, meters, UPS systems, PLCs and much more.

The processor is powerful enough to handle the full range of LTE communications capabilities, including video streams. The internal memory provides ample storage for custom scripts, software applications and a wide variety of protocols. In addition to its Ethernet and RS-232 ports, SmartStart™ has built-in digital I/O connectivity. Competing routers in the same price range generally provide only Ethernet or RS-232. StartSmart™ provides all three.

SmartStart™ combines best-in-class power consumption with LTE performance and is optimized for solar and battery powered applications. Low Power Mode extends battery life by dropping power consumption to 40 mW, and can be triggered by timers, low voltage detection or I/O. SmartStart™ is the industry’s only cellular gateway with power consumption equivalent to 2G devices. It is DIN rail and panel mountable.The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.

SmartStart™ is an excellent fit for applications that are migrating to LTE technology. SmartStart™ provides fallback to 3G/2G technologies to ensure that connectivity is reliable in areas where LTE is still under development. This futureproofs your existing installations and protects your investment. You can upgrade your systems according to your own schedule, as SmartStart™ will continue to connect your legacy devices, even after the cellular providers sunset their 2G and 3G cellular networks.

SmartStart™ is easy to install using SmartWorx HUB™, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster™, makes it easy to configure multiple routers via the same VPN tunnel.
ProdGrafik

SPECIFICATIONS

NETWORKING
Network and Routing DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/ Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup Routers, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging
Security HTTPS, SSH, VPN tunnels, SFTP, DMZ, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering)
VPN Tunnelling Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2
Configuration Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server, Backup configuration, Restore configuration
Firmware Management Automatic firmware update from server, Locally via LAN or remotely OTA (HTTP, HTTPS), Over-the-Air software updates, Over-the-Air cellular module update from FW
Diagnostic One CLICK report - current configuration / factory identification / system log / kernel log / reboot log / routing table, Remote diagnostics possible via SSH
Status Network Status, DHCP Status, IPSec Status, Statistics history for last 60days
Log System Log, Reboot Log, Kernel Log
Controlling and Diagnostic SMS, SNMP v1/v2c/v3, Statuses
Event Engine StartUp script & Up/Down script (Bash, Python), Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature. Report Types: SMS, email, SNMP Trap
Other Support of IPv6
PORTS, LED, ANTENNAS
Ethernet RJ45, 10/100 Mbps, 1.5kV RMS
SIM NAM/EMEA 1/2 Mini SIMs (2FF)
LED indicators PWR, DAT, WAN, ETH
2x ANT SMA connectors
WiFi antenna - *optional R-SMA connector
RS232 DB9 Female
I/O 1x Digital Input On Voltage: 2.7V to 36VDC
(4-Way Molex moni-fit connector)
MECHANICAL
Plastic case with metal DIN rail Plastic
Enclosure Dimensions 87x30x127mm (150mm including wall month sides)
Weight 187 g
POWER, CONSUMPTION, ENVIRONMENTAL, IP COVER
Power Supply 9–36VDC (4-Way Molex moni-fit connector)
Power Consumptionwith WiFi - Average/Peak/Sleep Mode 2,7 / 5.5 W / 40 mW
Power Consumption without WiFi - Idle/Average/Peak/Sleep Mode 2,1 / 4.8 W / 40 mW
Current with WiFi 0.65 A Max
Current without WiFi 0.55 A Max
Temperature Range with WiFi – Operating / Storage -25 to +55 °C / -40 to +85 °C
Temperature Range without WiFi – Operating / Storage -40 to +75 °C / -40 to +85 °C
Humidity – Operating / Storage (noncondensing) 0 to 95 % / 0 to 95 %
Cold Start -40 °C
Operating Altitude 2000 m / 70 kPa
Enclosure Rating IP30



CELLULAR MODULE PARAMETERS
SL304 Cat. 4 - EMEA & LATAM SL302 Cat. 1 - NAM - AT&T, Verizon
LTE parameters Bit rate 150 Mbps (DL) / 50 Mbps (UL)
LTE FDD Cat.4, 3GPP release 9 compliant
Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz
Bit rate 10 Mbps (DL) / 5 Mbps (UL)
LTE FDD Cat.1, 3GPP release 9 compliant
Supported bandwidths: 5 Mhz, 10 Mhz, 20 MHz
Supported frequencies: Supported frequencies: 700 MHz (Bd12/Bd13), 850 MHz (Bd5), AWS 1700 MHz (Bd4), 1900 MHz (Bd2)
WCDMA Bit rate 42.0 Mbps (DL) / 5.76 Mbps (UL)
Supported frequencies: 900 / 2100 MHz
Bit rate 42.0 Mbps (DL) / 5.76 Mbps (UL)
Supported frequencies: 850 / 1900 MHz
GPRS/EDGE parameters Bit rate 236 kbps (DL) / 236 kbps (UL)
Supported frequencies: 900 / 1800 MHz
-






ORDERING INFORMATION – Antennas & Power Supplies Sold Separately

MODEL NO.
- ORDER CODES
NAM*
LTE CAT.1
EMEA & LATAM
LTE CAT.4
1X
ETHERNET
RS232 I/O 2X SIM WI-FI SMARTWORX
HUB
SL30200110-X Yes Yes Yes Yes Yes
SL30210110-X Yes Yes Yes Yes Yes Yes
SL30200110-XSWH Yes Yes Yes Yes Yes Yes
SL30210110-XSWH Yes Yes Yes Yes Yes Yes Yes
SL30400110 Yes Yes Yes Yes Yes
SL30410110 Yes Yes Yes Yes Yes Yes
SL30400110-SWH Yes Yes Yes Yes Yes Yes
SL30410110-SWH Yes Yes Yes Yes Yes Yes Yes
