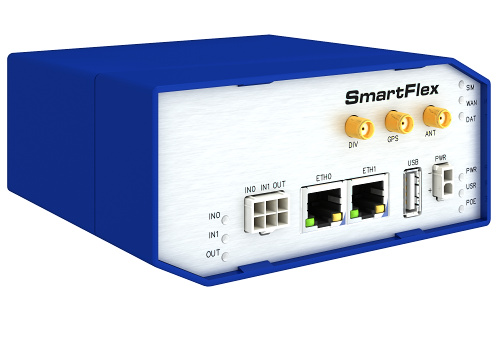

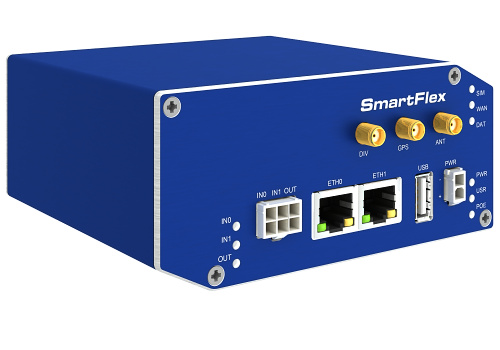

Advantech BB Smart Flex SR308
prodgraf


FLEXIBLE, MODULAR LTE ROUTER (Conel)


egenskaber


beskrivelse


SmartFlex TM cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, SmartFlex provides ample bandwidth, even for applications that require video.

SmartFlex places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (Long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage SmartFlex from remote locations. The router can also upgrade its configuration and firmware from the operator’s central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and can create multiple configurations for the same router and switch from one configuration to another at any time.

Modular SmartFlex can be configured for any application. Standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses and also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O), 1 binary output (I/O) and onboard GPS.

An optional built-in Wi-Fi module is also available, with industrial grade operating temperature ranges from -40 to +75 °C. Further optional boards include: 3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or RS-232/485 (isolation strength up to 2.5kV). The SmartFlex supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like SmartWorx HUB and R-SeeNet.



ProdGrafik

yderligere information


SPECIFICATIONS

PORTS, LED, ANTENNAS
Up to 5x ETH ports RJ45, 10/100 Mbps
SIM 2 Mini SIMs (2FF) (rear panel)
LED Indicators PWR, DAT, WAN, ETH, SIM, USR, POE, IN0, IN1, OUT
3x ANT - ANT, DIV, GPS
(sold separately)
SMA connectors
Wi-Fi Antenna
(sold separately)
R-SMA connector
USB USB Host connector 2.0
SD Card 1x Micro SD Card slot (rear panel)
RST RESET button (rear panel)
*Optional 3-port SWITCH 3x RJ45, 10/100 Mbps
*Optional ETH - R232 - RS485 RJ45, 4-pin terminal block, 3-pin terminal block connectors – Isolation up to 2.5 kV
*Optional RS232 - RS485 5-pin terminal block, 4-pin terminal block connectors – Isolation up to 2.5 kV
*Optional PoE PSE or PoE PD on ETH0 and ETH1


POWER
Power Supply
(sold separately)
10 – 60 VDC (2–Way Molex connector
Power Consumption Idle: 2.5 W
Average: 4 W
Peak: 11 W
Sleep Mode: 10mW


ENVIRONMENTAL
Temperature Range Operating: -40 to +75 °C
Storage: -40 to +85 °C
Humidity Operating: 0 to 95 %
Storage (Non-condensing): 0 to 95 %
Cold Start -40 °C
Operating Altitude 2000 m / 70 kPa
Ingress Protection Rating IP30


MECHANICAL
Plastic or metal case with plastic or metal DIN rail
Enclosure
Dimensions
55x97x125 mm
Weight Plastic 170 g
Weight Metal 375 g


OTHER TECHNICAL PARAMETERS
CPU Power 2 DMIPS per MHz
Flash memory 256 MB
RAM 512 MB
M-RAM 128 kB


POE PARAMETERS POE PD
parameters for opposite PSE
P0E PSE
Input voltage range 42.5 – 57 V 44 – 57 V, 65 W
Power available 25.50 W 2x 25.50 W
(ETH0, ETH1)
Maximum current 600 mA
Insul. Strength 1.5 kV from the router none
Standards IEEE 802.3at-2009 (PoE+) and IEEE 802.3af-2003 (PoE) supported. Cabling needed is Category 5, up to 12.5 Ω. It is possible to use a passive PoE injector


WI-FI - 802.11 A/B/G/N, AP OR CLIENT MODES
Supported Wi-Fi band 2.4 GHz, 5 GHz
Encryption None, WEP, TKIP, AES
5 GHz supported channels 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Number of clients 10
Authentication Open, Shared, WPA–PSK, WPA2–PSK



GNSS SPECIFICATIONS
Antenna 50 Ohms – active
Protocols NMEA 0183 v3.0
Frequency Frequency
Sensitivity Tracking: -161dBm
Acquisition (Assisted): -158dBm
Acquisition (Standalone): -145dBm
Acquisition time Hot start: 2.5 s
Warm start: 26 s
Cold start: 35 s
Accuracy Horizontal: < 2m (50 %); < 5m (90 %)
Altitude: < 4m (50 %); < 8m (90 %)
Velocity: < 0.2mps


CELLULAR MODULE PARAMETERS
LTE parameters LTE: Cat.4, 3GPP E-UTRA Release 11
FDD frequencies: 700 MHz (B28), 850 MHz (B5), 900 MHz (B8), 1700 MHz (B4), 1800 MHz (B3), 1900 MHz (B2), 2100 MHz (B1), 2600 MHz (B7)
TDD frequencies: 2300 MHz (B40)
LTE FDD bit rates: 150 Mbps (DL) / 50 Mbps (UL)
LTE TDD bit rates: 130 Mbps (DL) / 35 Mbps (UL)
Supported bandwidths: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz
HSPA+ parameters HSPA: 3GPP R8 DC-HSPA+
Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100 MHz
Bit rates: 42 Mbps (DL) / 5.76 Mbps (UL)
UMTS parameters Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100 MHz
Bit rates: 384 kbps (DL) / 384 kbps (UL)
TD-SCDMA parameters Supported frequencies: 850 MHz, 900 MHz, 1900 MHz, 2100 MHz
Bit rates: 384 kbps (DL) / 384 kbps (UL)
EDGE parameters Supported frequencies: 800MHz, 900 MHz, 1800 MHz, 1900MHz
Data throughput: max. 236.8 kbps
GPRS parameters Supported frequencies: 800MHz, 900 MHz, 1800 MHz, 1900MHz
Data throughput: max. 85.6 kbps


INDUSTRY CERTIFICATIONS & APPROVALS
SR308
Telecom and emission RCM (Australia, New Zealand)
EMC IEC 61000-6-2:2005, IEC 61000-6-3:2006
Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN 62311:2008


SOFTWARE
Network and Routing DHCP Server, , DHCP Client, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, NTP Client/ Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup routes, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging
Security HTTPS, SSH, VPN tunnels, SFTP, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering), DMZ (via iptables)
VPN Tunnelling Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, DMVPN, IPSec with IKEv1 and IKEv2
Configuration Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server Backup configuration, Restore configuration
Firmware Management Automatic firmware update from server, Locally via LAN and USB or remotely OTA (HTTP, HTTPS), Over-the-Air software updates, Over-the-Air cellular module update from FW
Diagnostic One CLICK report – current configuration / factory identification / system log / kernel log / reboot log / routing table, Remote diagnostics possible via SSH
Status Network Status, DHCP Status, IPSec Status, Statistics history for last 60 days
Log System Log, Reboot Log, Kernel Log
Controlling and Diagnostic SMS, SNMP v1/v2c/v3, Statuses, Log
Event Engine StartUp script & Up/Down script (Bash), Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
Report Types: SMS, email, SNMP Trap
Other IPv6 support





Ordering Information

Available Modules
BB-SR30800015-SWH SmartFlex, AUS/NZ, 2x ETH, Plastic
BB-SR30800025-SWH NETWORKING DEV, ANZ,2xETH,METAL,ACCIN,SWH
BB-SR30800115-SWH SmartFlex, AUS/NZ, 5x ETH, Plastic
BB-SR30800125-SWH SmartFlex, AUS/NZ, 5x ETH, Metal
BB-SR30800310 ETHERNET DEVICE, ANZ,2xETH,232,485,PLASTIC,NOACC
BB-SR30800315-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,PLASTIC,ACCIN,SWH
BB-SR30800325-SWH SmartFlex, AUS/NZ, 2x ETH, 1x RS232, 1x RS485, Metal
BB-SR30800415-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,PLASTIC,ACCIN,SWH
BB-SR30800425-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,METAL,ACCIN,SWH
BB-SR30808015-SWH ETHERNET DEVICE, ANZ,2xETH,PSE,PLASTIC,ACCIN,SWH
BB-SR30808025-SWH SmartFlex, AUS/NZ, 2x ETH, PoE PSE, Metal
BB-SR30808115-SWH ETHERNET DEVICE, ANZ,5xETH,PSE,PLASTIC,ACCIN,SWH
BB-SR30808125-SWH SmartFlex, AUS/NZ, 5x ETH, PoE PSE, Metal
BB-SR30808315-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,PSE,PLASTIC,ACCIN,SWH
BB-SR30808325-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,PSE,METAL,ACCIN,SWH
BB-SR30808415-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,PSE,PLASTIC,ACCIN,SWH
BB-SR30808425-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,PSE,METAL,ACCIN,SWH
BB-SR30809025-SWH ETHERNET DEVICE, ANZ,2xETH,PD,METAL,ACCIN,SWH
BB-SR30809125-SWH ETHERNET DEVICE, ANZ,5xETH,PD,METAL,ACCIN,SWH
BB-SR30810015-SWH ETHERNET DEVICE, ANZ,2xETH,WIFI,PLASTIC,ACCIN,SWH
BB-SR30810020 ETHERNET DEVICE, ANZ,2xETH,WIFI,METAL,NOACC
BB-SR30810025-SWH SmartFlex, AUS/NZ, 2x ETH, WIFI, Metal
BB-SR30810115-SWH ETHERNET DEVICE, ANZ,5xETH,WIFI,PLASTIC,ACCIN,SWH
BB-SR30810125-SWH SmartFlex, AUS/NZ, 5x ETH, WIFI, Metal
BB-SR30810310 NETWORKING DEV, ANZ,2xETH,232,485,WIFI,PLASTIC,NOACC
BB-SR30810315-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,WIFI,PLASTIC,ACCIN,SWH
BB-SR30810325-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,WIFI,METAL,ACCIN,SWH
BB-SR30810415-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,WIFI,PLASTIC,ACCIN,SWH
BB-SR30810425-SWH SmartFlex, AUS/NZ, 3x ETH, 1x RS232, 1x RS485, WIFI, Metal
BB-SR30818015-SWH ETHERNET DEVICE, ANZ,2xETH,WIFI,PSE,PLASTIC,ACCIN,SWH
BB-SR30818025-SWH ETHERNET DEVICE, ANZ,2xETH,WIFI,PSE,METAL,ACCIN,SWH
BB-SR30818125-SWH SmartFlex, AUS/NZ, 5x ETH, WIFI, PoE PSE, Metal
BB-SR30818315-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,WIFI,PSE,PLASTIC,ACCIN,SWH
BB-SR30818325-SWH ETHERNET DEVICE, ANZ,2xETH,232,485,WIFI,PSE,METAL,ACCIN,SWH
BB-SR30818415-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,WIFI,PSE,PLASTIC,ACCIN,SWH
BB-SR30818425-SWH ETHERNET DEVICE, ANZ,3xETH,232,485,WIFI,PSE,METAL,ACCIN,SWH
BB-SR30819025-SWH ETHERNET DEVICE, ANZ,2xETH,WIFI,PD,METAL,ACCIN,SWH
BB-SR30819125-SWH SmartFlex, AUS/NZ, 5x ETH, WIFI, PoE PD, Metal




PDF

PDF beskrivelse Advantech BB Smart Flex SR308 Datasheet (578.9 kB)
