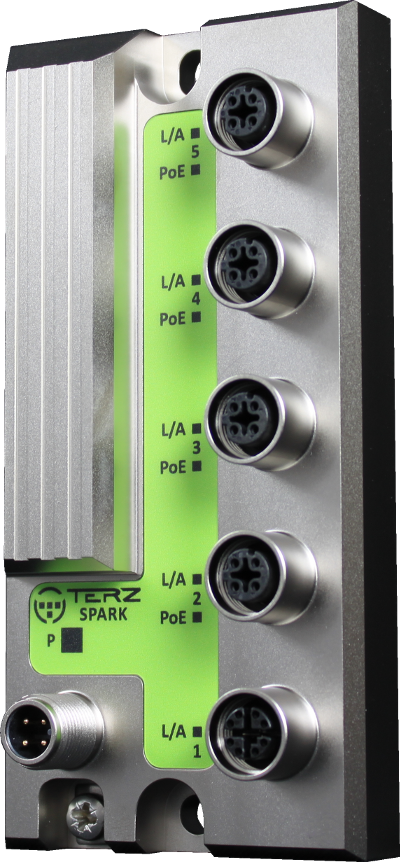

TERZ SPARK-XS Serie
Industrial Power over Ethernet Switches 12 IP65/67
- 24 VDC Power Supply
- IP65/67 metal housing
- Ultra-compact, ruggedized design
- X-coded Gigabit Uplink Port
- Temperature range -40 to +70°C
- DIN EN 50155 rail compliant
- Polarity protection
- 40 Watt PoE Total Powerbudget
The SPARK-XS PoE switches enable the supply of up to 6 devices with power and data. By reducing the connection to just one cable and saving additional power supplies, the cost, installation effort and space requirements can be reduced. The switches operate according to the IEEE standard 802.3at Type 1 as Power Sourcing Equipment (PSE) and supply the connected devices with up to 15.4 watts per port. The retrofitting of existing applications where space is exhausted in the control cabinet, is possible as well as the construction of new installations optimized with a focus on decentralization of the components.
SPECIFICATION
- General
- Switch:
IEEE802.3 Store and Forward; non-blocking wire speed
Auto-Negotiation, Auto-MDI-X, Auto-Polarity:
Yes
Frame size:
1,518 Bytes
MAC table size:
2,000 addresses
Quality of Service:
Yes
Energy Efficient Ethernet:
No
Flow Control:
No
PROFINET suitable:
Yes
Port count (X-cod. + D-cod.) | 4+1 |
MTBF (SN 29500, Mio. h) |
tbd |
Frame Forwarding (Art.-No.) | xxxxx0 |
LLDP, PTCP Delay 01:80:C2:00:00:0E | Forwarding |
RSTP BPDU 01:80:C2:00:00:00 | Forwarding |
Ethernet Interfaces
- IEEE Standards:
802.3 10Base-T, 100Base-TX, 1000Base-T
Isolation:
2 kVDC X-codedD-coded PoE
1 kVDC X-codedhousing
Connection type:
RJ45
Port Count | Speed:
4 | 10/100 Mbit/s + 1 | 10/100/1000 Mbit/s
Cable length:
100 m (Twisted Pair, 0.14 mm² - 0.22 mm², Cat 5)
Power supply / electronics
- Nominal voltage:(VDC)
Vin 24
Voltage range:(VDC)
16,8 - 30 (14,4 for 100 ms)
Connection type:
Vin M12 A-cod. (Pin1+|Pin2-) | M4 screw (FE)
Supply circuit:
SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiter:
No
Input fuse:
Yes, Interrupting rating 50 A @ 125 VAC / VDC
Polarity protection:
Yes
PCB Conformal Coating:
Yes
Protection category:
III
Isolation:
2 kVDC Vinhousing | 1,5 kVDC Vin ↔ X-coded
0 kVDC Vin ↔ D-coded PoE
Power over Ethernet
- Type | Standard:
PSE | IEEE 802.3af/802.3at (Typ 1)
Mode:
A (Endspan); Pins V+ = 1,2 und V- = 3,6
Max. current per port (mA):
0,350
Max. power per port (W):
15.4
Max. total power budget PoE (W):
40
Galvanic isolation:
No
Switching live voltage path:
Yes
Isolation:
0 kVDC D-coded PoED-coded PoE
2,25 kVDC D-coded PoEhousing
Port count (X-cod. + D-cod.) | 4+1 |
Power consumption (W) Idle | full load (w/o PoE) Idle | full load (w PoE) |
1,5 | 2,9 41,5 | 43,0 |
Input current (A) Idle | full load (w/o PoE) Idle | full load (w PoE) |
0,06 | 0,12 1,73 | 1,80 |
Inrush current (A) | tbd |
Mechanical properties
- Housing material:
Nickel-plated aluminium, stainless steel
Mounting:
M6 hole for wall mounting, round head screw
IP Protection class (operation):
IP65/67
Port count (M12) | 4+1 |
Width (mm) | 65 |
Height (mm) | 135 |
Depth (mm) | 29,8 |
Weight (g) | 370 |
EMC and environmental specifications
- Operating temperature:
-40°C to 70°C
Storage temperature:
-40°C to 85°C
Relative humidity (operation):
0%-95% (not condensing)
Relative humidity (storage):
0%-95% (not condensing)
Atmospheric pressure (operation):
2,000 m (795 hPa)
EMC immunity:
DIN EN - 50121-3-2, 61000-6-2
EMC radiated emission:
DIN EN - 50121-3-2, 61000-6-4
Mechanical stability:
DIN EN 61373
Fire protection:
DIN EN 45545
Approvals and certifications
- CE, DIN EN 50155, DIN EN 60950-1
Status and diagnostic indicators
- LED:
Power | Link/Activity pro Port | PoE pro Port
ORDERING INFORMATION
Available Modules | ||
Article | Art.-No. | Specification |
SPARK-XS41Q-31010 | 431410210 | 4+1,M12,PoE,24 V |
