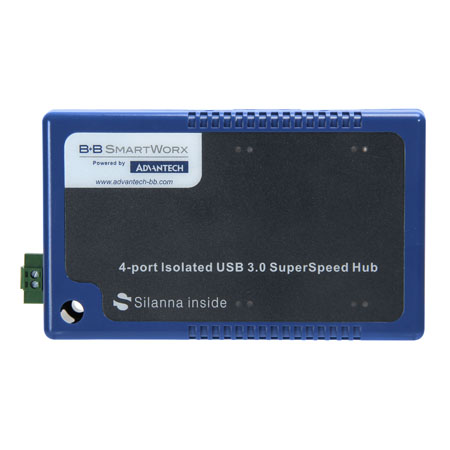

Advantech BB-USH304
4-Port Isolated USB 3.0 SuperSpeed Hub
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Expands one USB port to 4 USB ports
- 2,500 VDC isolation for upstream port
- ESD protection up to ±8 kV (Level 3)
- Transfer speed is up to 5 Gbps
- 4 x downstream USB 3.0 SuperSpeed ports
- Can be powered via a USB bus or 10~30 VDC external power source
- Power status and downstream port speed LED indicators
- Lockable USB 3.0 cable included
- DIN rail mount adapter clip included
4-Port Isolated USB 3.0 SuperSpeed Hub (USB cable included)
SPECIFICATIONS
| CONNECTIVITY | |
| Ports | 1 x Upstream (Type B) 4 x Downstream (Type A) |
| Compatibility | USB 3.0 SuperSpeed (1) |
| Downstream Port | (4) Type A Female – high retention |
| Transfer Speed | 5 Gbps shared by all downstream ports |
| Load Current | External power: 900 mA max. per port USB bus power: 700 mA max. shared by all ports (2) |
| GENERAL | |
| Housing | Plastic (ABS + PC) |
| Dimensions | 132 x 80 x 32 mm (5.20 x 3.15 x 1.26 in) |
| Power Input | 10 to 30 VDC |
| Power Consumption | 760 mW (no load) |
| Operating Temperature | 0 ~ 70 °C (32 ~ 158 °F) with External power 0 ~ 60 °C (32 ~ 140 °F) with USB bus power |
| Storage Temperature | -20 ~ 70 °C (-4 ~ 158 °F) |
| Storage Humidity | 5 ~ 95% RH (non-condensing) |
| PROTECTION | |
| Isolation Protection | 2,500 VDC |
| ESD Protection | Contact discharge: ±4 kV (Level 2) Air discharge: ±8 kV (Level 3) |
ORDERING INFORMATION
| Available Modules | |
| BB-USH304 | 4-Port Isolated USB 3.0 SuperSpeed Hub (USB cable included) |
