Advantech BB XR5i v2E Series

The XR5i v2E industrial router secures connections between two local networks (LAN) via two Ethernet interfaces 10/100. WiFi model is available.

Coonfiguration is password protected, via web interface. The router supports creation of VPN tunnels using IPsec, OpenVPN and L2TP to ensure safe communication. Web interface provides detail statistics about router activities.


SELECTED APPLICATIONS

Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Metrology, alarm and warning systems

SPECIFICATIONS

FIXED INTERFACES
2× Ethernet	10/100 Mbits, independent or bridged
POWER
Source	9 - 36 VDC
Consumption	Idle - 1.6 W WiFi Com. to 1.9 W Full Com. to 2.5 W
MECHANICAL

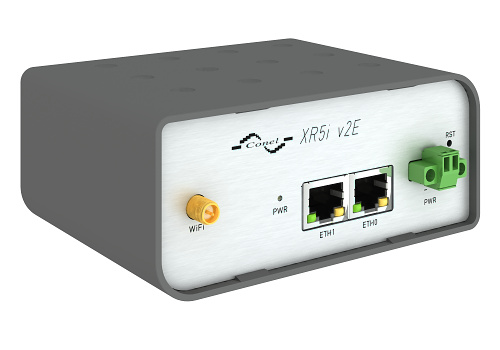

Dimension Plastic version	51 x 87 x 116mm

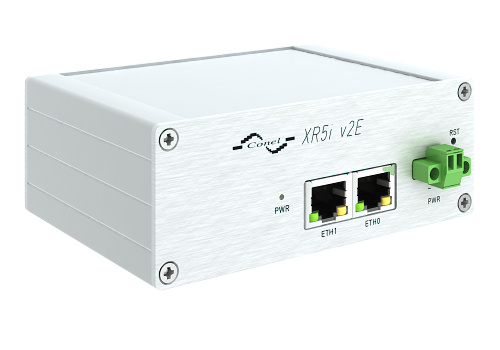

Dimension Metallic version	42 x 87 x 113mm
Protection	IP30
ENVIRONMENTAL
Operating Temperature	-40 to +75°C
Storage Temperature	-40° to +85°C
Humidity	Operating - 0 to 95% relative humidity non condensing Storage - 0 to 95% relative humidity non condensing
WIFI *optional
Antenna connector	R-SMA – 50 Ohms
Supported WiFi band	2.4 GHz
Standards	802.11b, 802.11g, 802.11n
2.4 GHz supported channels	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
RX Sensitivity	11b, 11 Mbps: typ. -85 dBm 11g, 54 Mbps: typ. -70 dBm (HT20) 11n, MSC7: typ. -66 dBm (HT40) 11n, MSC7: typ. -62 dBm
TX Output Power	11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm 11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm 802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm 802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm
Type of device	Access point, station
CPU & MEMORY
CPU	32b ARM microprocessor, 0.25 DMIPS per MHz
Flash memory	16 MB DDR SDRAM
RAM	64 MB
M-RAM	128 kB
SOFTWARE FEATURES
	Linux based, possibility to program your own application
	NTP client, NTP Server – time synchronization
	M-RAM memory inside – router statistic ́s saving into memory
NETWORKING
	DHCP – automatic IP addressing in LAN network
	NAT/PAT – IP address and ports translation between inside/outside network
	VRRP – virtual backup router function
	DynDNS client – access to the router with a dynamic IP address
	PPPoE Bridge – PPP frames encapsulation inside ETH frames
VPN TUNNELING
	IPsec, OpenVPN, L2TP – secure encrypted tunnels
CONFIGURATION AND DIAGNOSTIC
	HTTP server – configuration via web server
	Telnet – configuration and access to the file system
	SNMP – router diagnostics, communication with I/O and M-Bus
	Remote router group configuration change, switching among configuration profiles
	SSH – encrypted configuration and access to the file system
STANDARDS/REGULATION
EMC	ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1
Safety	EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011

Ordering Information

Available Modules
BB-XR2L000010	XR5i v2E, EMEA, 2x ETH, Plastic
BB-XR2L000011	XR5i v2E, EMEA, 2x ETH, Plastic
BB-XR2L000012	XR5i v2E, EMEA, 2x ETH, Plastic, ACC UK
BB-XR2L000020	XR5i v2E, EMEA, 2x ETH, Metal
BB-XR2L000021	XR5i v2E, EMEA, 2x ETH, Metal
BB-XR2L000022	XR5i v2E, EMEA, 2x ETH, Metal, ACC UK
BB-XR2L000023	XR5i v2E, EMEA, 2x ETH, Metal, ACC AU
BB-XR2L000710	XR5i v2E, EMEA, 2x ETH, WIFI, Plastic
BB-XR2L000711	XR5i v2E, EMEA, 2x ETH, WIFI, Plastic
BB-XR2L000712	XR5i v2E, EMEA, 2x ETH, WIFI, Plastic, ACC UK
BB-XR2L000721	XR5i v2E, EMEA, 2x ETH, WIFI, Metal
