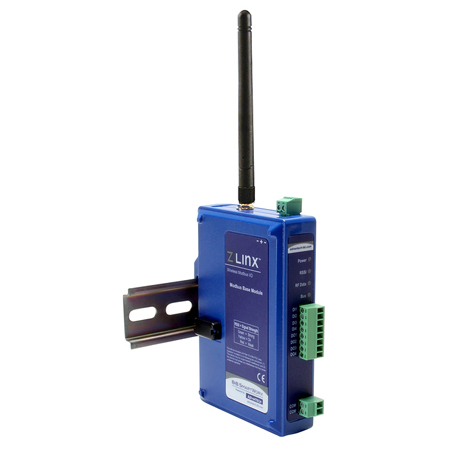

Advantech BB Zlinx Standard Wireless I/O

Zlinx™ Wireless Modbus I/O - flexible enough to fit your applications.

These plug-n-play units combine traditional Modbus RTU remote analog and discrete I/O with built-in wireless connectivity. Wireless RTU serves as Modbus slave RTU in radio-based SCADA systems, or as a peer-to-peer communication platform.

Two Ranges Available
- Short, Long range.

Active Repeaters
- With built-in repeater functionality on 900 MHz -LR models, you can ensure vital signals get through.

Modular
- Just snap on your I/O and you are ready to communicate.

Wide Temperature
- Meets most indoor or outdoor applications.

Rugged circuitry
- prevents signal degradation.

128 / 256 Bit AES Encryption
- Secures data.

Selectable RF Transmit Power
- Allows you to optimize the transmitter power for your application.

Selectable Over-the-air Data Rate
- Allows you to decrease the OTA Data Rate (on -LR and -LR-AU versions), effectively increasing the radio transmitter’s range.

Exception Reporting
- In Modbus mode, allows the reporting of possible problems with connected devices.

Fail Safe
- Allows you to set I/O to a safe state in the event of a communications failure.

Calibration
- Calculates correction factors to make I/O values better match your sensor.

Communications Failure Alarm
- Allows the first DO to be configured as a COM failure alarm indicator.

Invert Output
- You can invert the logic of all DO’s in peer-to-peer mode.

Monitor
- Use the Zlinx™ Manager Software to monitor your I/O.

SPECIFICATIONS

BASE MODULE RADIO PROPERTIES
Model No.	ZZ24D-Nx-SR	ZZ9D-Nx-LR	ZZ9D-Nx-LR-AU	ZZ8D-Nx-LR
Frequency	2.4 GHz	900 MHz *	900 MHz *	868 MHz **
Software Selectable RF Power Options	10mW, 16mW, 25mW, 40mW, 63mW	1mW,10mW, 100mW, 500mW, 1000mW	1mW, 10mW, 100mW, 500mW, 1000mW	1mW, 23mW, 100mW, 159mW, 316mW
Factory RF Power Setting	63mW	1000mW	1000mW	316mW
AES Encryption	128 Bit	256 Bit	128 Bit	128 Bit
Over-the-air Data Rate	250 Kbps	9.6 or 115.2 Kbps	9.6 or 115.2 Kbps	24 Kbps
Range with Supplied Antenna (indoor/outdoor) maximum	300 Feet (91 Meters) / 1 Mile (1.6 Kilometers)	3000 Feet (914 Meters) / 14 Miles (23 Kilometers)	3000 Feet (914 Meters) / 14 Miles (23 Kilometers)	1800 Feet (549 Meters) / 25 Miles (40 Kilometers)
Range with High Gain Antenna (outdoor) maximum	N/A	40 Miles (64 Kilometers)	40 Miles (64 Kilometers)	25 Miles (40 Kilometers)

Note: ZZ9D-Nx-LR and ZZ9D-Nx-LR-AU have software selectable OTA data rates.
*Note: 900 MHz units are not sold in Europe
**Note: 868 MHz units are not sold in North America

LATENCY
Base Module	Modbus Digital	Modbus Analog	Peer-to-Peer Digital	Peer-to-Peer Analog
BB_ZZ24D-xx-SR	8mS	15mS	20mS	25mS
BB-ZZ9D-xx-LR	9mS	104mS	55mS	52mS

Latency times were measured in a clean RF environment with devices less than 3 feet (1m) apart.
Add 45mS per analog expansion module and 25mS per digital expansion module.
ZZ8D-Nx-LR radios have a 10% maximum duty cycle.

BASE MODULE RADIO PROPERTIES
Model No.	Digital Inputs	Digital Outputs	Analog Inputs	Analog Outputs
BB-ZZxD-NA-xx (Base)	2 (Pull-up Resistors)	2 (Sourcing)	2 (mA, V)	2 (V, mA, Sinking)
BB-ZZxD-NB-xx (Base)	4 (Pull-up Resistors)	4 (Sourcing)	---	---
BB-ZZxD-NC-xx (Base)	2 (Pull-up Resistors)	2(Sinking)	2 (mA, V)	2 (V, mA, Sinking)
BB-ZZxD-ND-xx (Base)	4 (Pull-up Resistors)	4 (Sinking)	---	---
BB-ZZ-8DI-DC	8 (Pull-up Resistors)	---	---	---
BB-ZZ-8DO-T	---	8 (Sourcing)	---	---
BB-ZZ-8DO-T1	---	8 (Sinking)	---	---
BB-ZZ-4DI4DO-DCT	4 (Pull-up Resistors)	4 (Sourcing)	---	---
BB-ZZ-4DI4DO-DCT1	4 (Pull-up Resistors)	4 (Sinking)	---	---
BB-ZZ-4AI	---	---	4 (mA, V)	---
BB-ZZ-4AO	---	---	---	4 (V, mA, Sinking)
BB-ZZ-4A0-2	---	---	---	4 (V, mA, Sourcing)
BB-ZZ-2AI2AO	---	---	2 (mA, V)	2 (V, mA, Sinking)
BB-ZZ-8DO-R	---	8 (Relay)	---	---
BB-ZZ-4RTD1	---	---	4 (RTD)	---

Ordering INFORMATION

ZZ8D-XX-lR Base Modules * * Check wireless regulations/standards in your geographic area.
BB-ZZ8D-NA-LR	868MHz, 2 AI, 2 A0, 2 DI, 2 D0 Sourcing, Long Range
BB-ZZ8D-NB-LR	868MHz, 4 DI, 4 D0 Sourcing, Long Range
BB-ZZ8D-NC-LR	868MHz, 2 AI, 2 A0, 2 DI, 2 D0 Sinking, Long Range
BB-ZZ8D-ND-LR	868MHz, 4 DI, 4 D0 Sinking, Long Range
ZZ9D-XX-lR Base Modules * * Check wireless regulations/standards in your geographic area.
BB-ZZ9D-NA-LR	900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Long Range
BB-ZZ9D-NA-LR-AU	900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Long Range
BB-ZZ9D-NB-LR	900MHz, 4 DI, 4 DO Sourcing, Long Range
BB-ZZ9D-NB-LR-AU	900MHz, 4 DI, 4 DO Sourcing, Long Range
BB-ZZ9D-NC-LR	900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Long Range
BB-ZZ9D-NC-LR-AU	900MHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Long Range
BB-ZZ9D-ND-LR	900MHz, 4 DI, 4 DO Sinking, Long Range
BB-ZZ9D-ND-LR-AU	900MHz, 4 DI, 4 DO Sinking, Long Range
ZZ24D-XX-SR Base Modules* * Check wireless regulations/standards in your geographic area.
BB-ZZ24D-NA-SR	2.4GHz, 2 AI, 2 AO, 2 DI, 2 DO Sourcing, Short Range
BB-ZZ24D-NB-SR	2.4GHz, 4 DI, 4 DO Sourcing, Short Range
BB-ZZ24D-NC-SR	2.4GHz, 2 AI, 2 AO, 2 DI, 2 DO Sinking, Short Range
BB-ZZ24D-ND-SR	2.4GHz, 4 DI, 4 DO Sinking, Short Range
Expansion Modules
BB-ZZ-8DI-DC	8 Digital Inputs, 10-48VDC
BB-ZZ-8DO-T	8 Digital Outputs Sourcing
BB-ZZ-8DO-T1	8 Digital Outputs Sinking
BB-ZZ-8DO-R	8 Relay Outputs
BB-ZZ-4AI	4 Analog Inputs
BB-ZZ-4AO	4 Passive Source Analog Inputs, Requires Isolated External Power Supply
BB-ZZ-4AO-2	4 Analog Output Sourcing
BB-ZZ-4RTD1	4 RTD Input
BB-ZZ-4DI4DO-DCT	4 Digital Inputs, 10-48VDC, 4 Digital Outputs Sourcing
BB-ZZ-4DI4DO-DCT1	4 Digital Inputs, 10-48VDC, 4 Digital Outputs Sinking
BB-ZZ-2AI2AO	2 Analog Inputs, 2 Analog Output
ACCESSORIES
BB-ZZ-PROG1-USB	Zlinx USB Programming Module, Cable, Software CD
BB-ZZ24D-ANT1	2.4 GHz Spare Antenna
BB-ZZ9D-ANT1	900 MHz Spare Antenna
BB-ZZ-DIN 1	Replacement DIN Clip and Spring
BB-ZZ-TB1	Replacement Terminal Block Kit
SOFTWARE PROGRAMMING KITS – REQUIRED TO PROGRAM YOuR SYSTEM
BB-ZZ-PROG1-USB	Programming Module (USB Interface), USB cable and Software CD

Note: The Software CD is only available with the programming kit.
