S-CONNECT - Beacon HV-551

Beacon HV-551

Wireless HDMI Extender

egenskaber
beskrivelse
yderligere information
PDF

Supports video resolutions:
VGA (640 x 480) ~ WUXGA (1920x1200 60Hz)
480i/576i to 1080p@60Hz
3D video support 1080p/720p
WiHD 1.1 Compliant.
Compliant with HDMI1.4, HDCP2.0
Supports Dolby TrueHD, DTS-HD Master Audio and LPCM digital audio streams up to 7.1 channels.
Uncompressed High Definition A/V from source to display.
Near zero latency.
Wireless extension of HDMI up to 30 meters.
Support CEC commands.

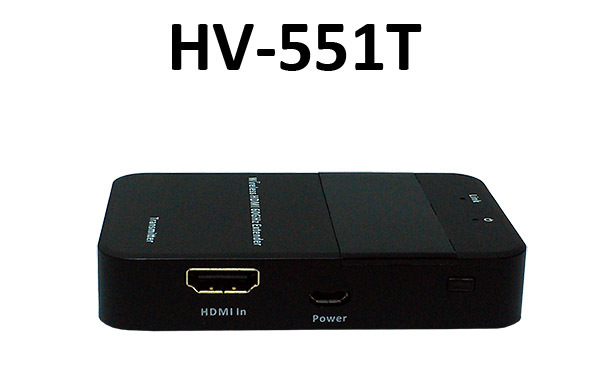

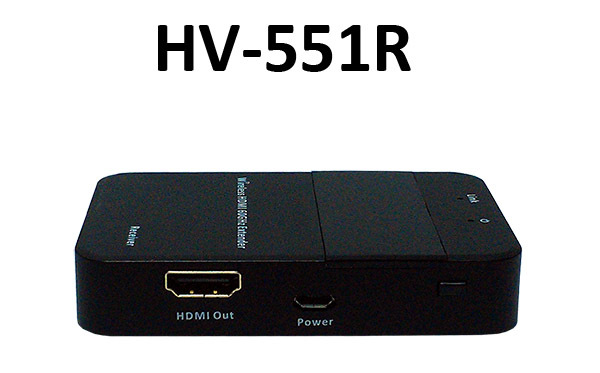

The HV-551 is a Wireless 60GHz HDMI Extender. The system includes HV-551T Transmitter and HV-551R Receiver. It sends high definition video and audio to any HDTV display up to 30 meters wirelessly.
It supports resolutions up to 1080p Full HD, 3DTV, CEC, and 7.1-channels of High Bit Rate (HBR) lossless digital audio such as Dolby TrueHD, DTS-HD Master Audio. This product is specifically designed for HDMI wireless transmission within a room.

Model No.		HV-551T	HV-551R
		Transmitter	Receiver

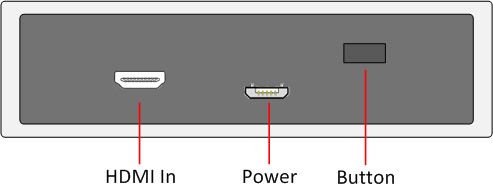

Connectors	HDMI Input	1x HDMI (Female type)	N/A
	HDMI Output	N/A	1x HDMI (Female type)
	USB	1 x Micro USB
Input resolution		up to 1080P@60Hz	N/A
Output resolution		N/A	up to 1080P@60Hz
Video Format		VGA, WVGA, SVGA, XGA, SXGA, WSXGA+, WUXGA, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D Format		720p、1080i、1080p
Audio		LPCM、Dolby Digital、Dolby Digital Plus、 Dolby TrueHD、DTS-HD Master Audio
Distances		30m
Power		DC 5V, 1A
Power Consumption		3.5W (Max)
Environment	Operation Temp.	0 ~ 40°C
	Storage Temp.	-20 ~ 60°C
	Humidity	0 ~ 90% Non-condensing
Physical Properties	Material	Plastic
	Weight	60g
		120g
	Dimension (L x W x H)	88(L) x 55(W) x 12(H)mm

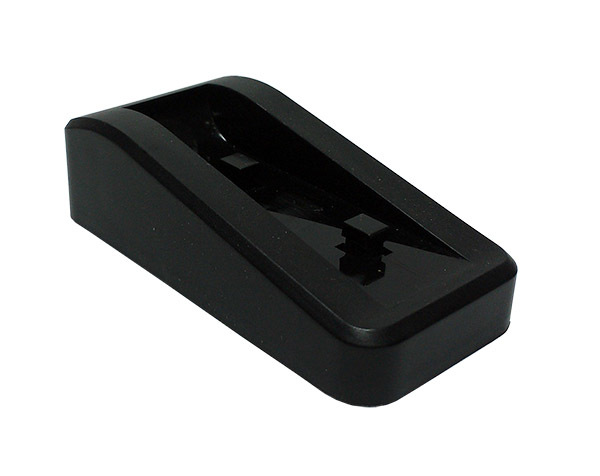

		100(L) x 68(W) x 32(H) mm with Dock

Beacon HV-551 Datasheet (481.3 kB)
