Beacon VW-815
2X2 Video-Wall controller (HDMI,VGA,Comp. Input )
- Compliant with HDMI1.3a, DVI1.0
- Support HDMI/VGA/CVBS input video, and USB movie, picture, music playback
- Support 5x HDMI outputs for one local full image output + 2x2 Video-Wall
- Two untis can be cascaded to 9x HDMI outputs for 3x3 Video-Wall mode
- Support adjustable Bezel Correction
- Support IR, Ethernet and RS232 controls
- Advanced video De-interlace for improving 480i and 576i SD video input
- Support Input Sources:
- CVBS: PAL,NTSC,SECAM with stereo audio input
- VGA: 640x480 ~ 1920x1080, all in 60Hz with stereo audio
- HDMI: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p
- USB: Media filed play
- Output resolution adjustable

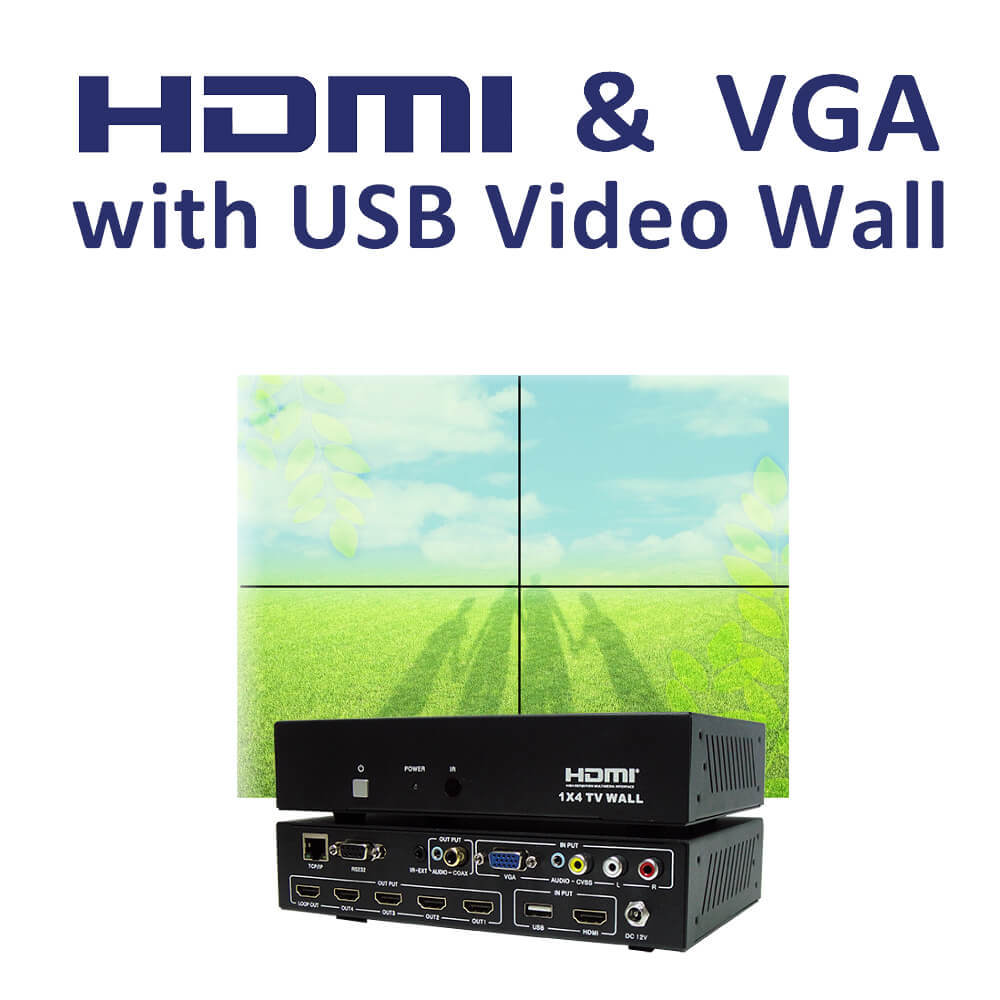

The VW-815 Video Wall Controller is a perfect solution for entertainment and Digital Signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other similar venues. It accepts multiple input video sources, such as HDMI, VGA, Composite Video (PAL/NTSC) as well as USB disk. One VW-815 unit provides 5 x HDMI output ports that can support 1x2, 1x3, 1x4 (Landscape and Portrait), 2x1, 3x1, 4x1, 2x2 video-wall configuration.
Two VW-815 units can be cascaded for 9 x HDMI output ports to support 2x3, 3x2, 2x4, 4x2, 3x3 video-wall. Its versatile bezel compensation ability can accommodate any display bezel width. All the operation and control can be done through IR, Ethernet and RS-232.

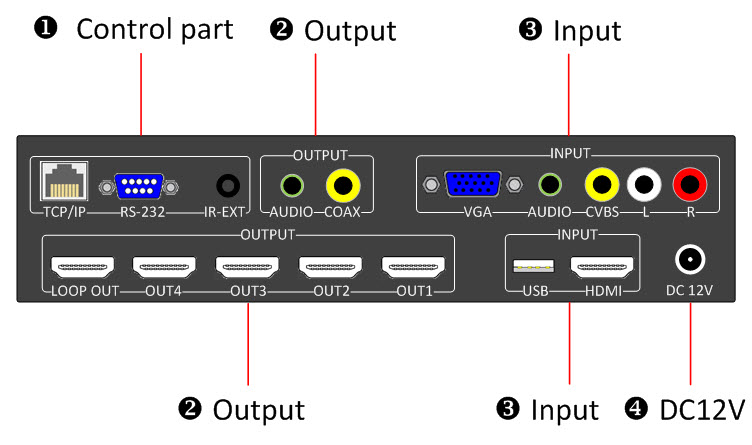

Model No. | VW-815 | ||
Connectors | HDMI In | 1 | |
VGA with Audio In | 1 (DB-15 Female) + 1 (3.5mm Audio Jack) | ||
CVBS with Audio In | 1 x RCA + 1 x L/R (RCA) | ||
USB In | 1 (for Media files play) | ||
HDMI Out | 5 (Female) | ||
Audio Out | 1 x 3.5mm Stereo + 1 x Coaxial Out (5.1 Channels) | ||
IR Receiver | 1 | ||
IR Ext | 1 | ||
RS-232 | 1 | ||
TCP/IP | 1 | ||
Video Bandwidth | 225MHz | ||
Input Resolution |
| ||
Output Resolution | 1024x768, 720p, 1360x768, 1080p | ||
ESD Protection | Human Body model: | ±8 | |
±4 | |||
Power Supply | DC 12V 2.5A (US/EU/UK, CE/FCC/UL certificated) | ||
Power Consumption | 7.5W | ||
Environment | Operating Temp. | 0~40°C | |
Storage Temp. | -20~60°C | ||
Humidity | 20~90% Non-condensing | ||
Physical properties | Housing | Metal (Black) | |
Weight | 1050g | ||
Dimensions | 118mm |
