Beacon AV-825
HDMI extender set over CAT6, 120m 50 meter
- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
- Support opy EDID from Receiver display or Transmitter loop out display
- Allows for cascading cia additional HDMI loop out port.
- Support Power-over-cable, so that Receiver does not need external power supply.
- Extends 1080p, resolution up to 50m/164ft.
- Compact design for an easy and flexible installation.

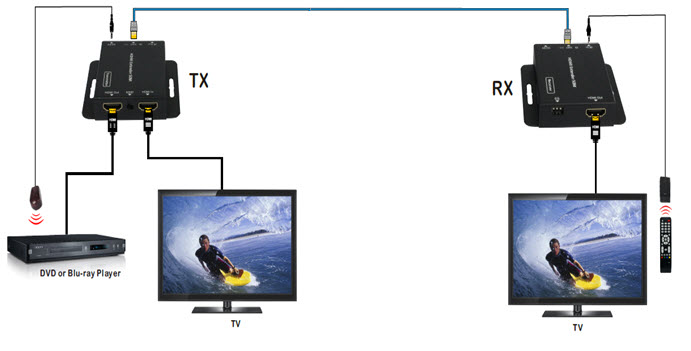

The AV-825 extends HDMI with IR control signals up to 50 meters (164 ft) over a single Cat6 cable with Power-Over-Cable feature, so that Receiver does not need external power supply. Also features EDID management, which allows customizable integration. DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extender is equipped with local HDMI-Out which allows for source control.
The AV-825 offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
The AV-825 offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Model No. | Transmitter | Receiver | |
AV-825T | AV-825R | ||
Connectors | HDMI Input | 1(Female) | NA |
CAT In | NA | 1 | |
IR In | NA | 1 | |
HDMI Out | 1(Female) | 1(Female) | |
CAT Out | 1 | NA | |
IR Out | 1 | NA | |
Video Bandwidth | Single-link 165Mhz, 4.95Gbps | ||
Video Support | 480i/480p/720p/1080i/1080p @60 | ||
Audio Support | Surround Sound (up to 7.1 ch) or stereo digital audio | ||
Maximum Distance | HD [1080p 24-bit color] – up to 50m [164ft] | ||
Input TMDS Signal | 3.3 volts | ||
Input DDC Signal | 5.0 volts/P-P | ||
ESD Protection | Human Body model: | ±8 kV (air-gap discharge) | |
±4 kV (contact discharge) | |||
Power Supply | 5V/ 1A DC | ||
Power Consumption | 1.5W (Tx). 1W (Rx) | ||
Environment | Operation Temperature | 0 ~ 40°C | |
Storage Temperature | -20 ~ 60°C | ||
Humidity | 20 ~ 90% Non-condensing | ||
Physical Properties | Material | Metal (Black) | |
Weight | 110g | ||
Dimension (L x W x H) | 79(L) x 67(W) x 17(H) |
