Beacon AV-9612
HDMI extender set over CAT6, 120m
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Compatible with SMPTE SD-SDI/ HD-SDI/3G-SDI.
- Supports most VESA and HDTV video formats up to HD 1080p50/60.
- Supports forward error correction for compressed video.
- Supports configurable serial data rate from 135Mbps to 2.975Gbps.
- Supports Power over Cable (PoC).
- Supports 9 ~ 32V industrial input power range.
- Supports Plug-and-Play, EDID, Hot-Plug Detection (HPD), HDCP.

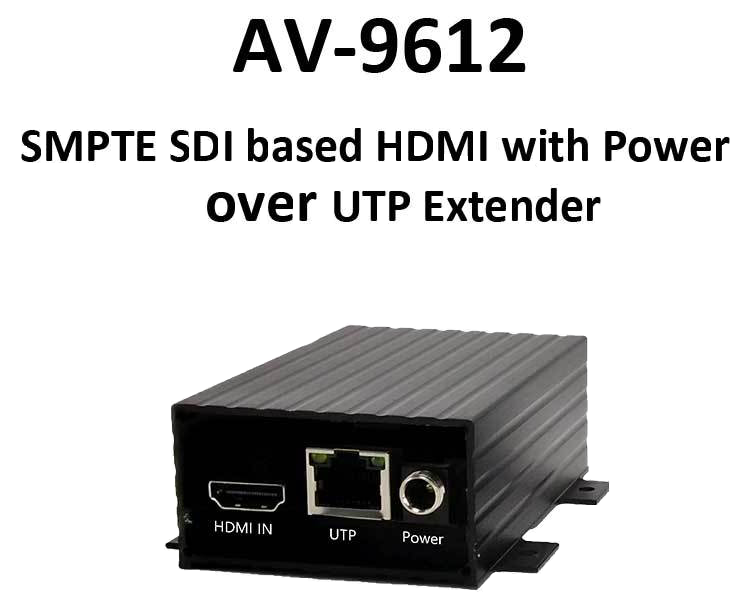

SMPTE SDI based HDMI with Power over UTP Extender
The AV-9612 is a long reach HDMI extender supporting Advanced Video Transport (AVT) technology with visually lossless digital video compression. It also supports uncompressed video transmission and is compatible with SMPTE SD-SDI/ HD-SDI and 3G-SDI, supports most VESA and HDTV video formats up to HD 1080p50/60.

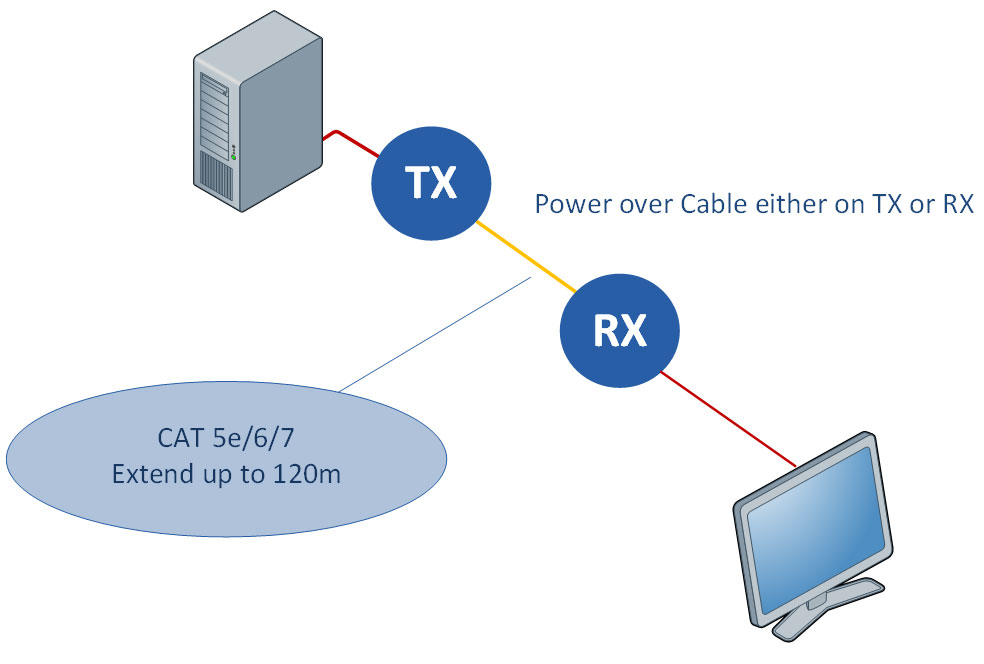

The AV-9612 includes AV-9612T (Transmitter) and AV-9612R (Receiver). The Transmitter/Receiver comes with one HDMI input/output ports for the HDMI video sources and screens. The Receiver employs serial data adaptation engine which automatically adjusts data. AV-9612 provides Power over Cable; it can be powered either by the Transmitter or Receiver site and the other site does not need external DC power adapter. The Receiver employs serial data adaptation engine which automatically adjusts data equalization based on cable quality and cable length up to CAT6 120 meters in 1080p, or 150 meters in 720p.
| Model No. | AV-9612T | AV-9612R | ||
| Transmitter | Receiver | |||

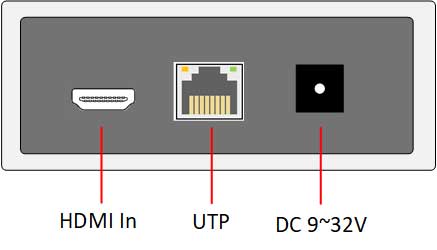

| Connectors | HDMI Input | 1 | N/A | |

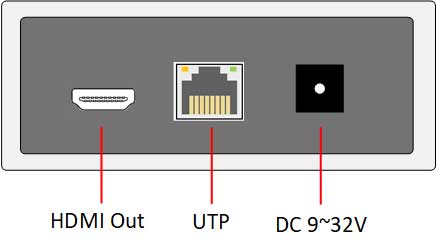

| HDMI Output | N/A | 1 | ||
| RJ-45 Input | N/A | 1 | ||
| RJ-45 Output | 1 | N/A | ||
| Power | ||||
| Serial data rate | AVT compressed video: 135Mbps - 742.5Mbps Uncompressed video: 270Mbps, 742.5Mbps, 1.485Gbps, 2.970Gbps | |||
| Video formats | AVT compressed video: 720x576p50, 720x480p60, 640x480p60/75, 800x600p60/75, 1024x768p60/75, 1280x800p60, 1280x1024p60, 1440x900p60, 1680x1050p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60. Uncompressed video: SD 525i/ 625i, HD 720p 24/25/30/50/60, HD 1080i 50/60, HD 1080p 24/25/30/50/60. | |||
| Cable Type | CAT 5e / 6 / 7 | |||
| Support bi-direction audio | Yes | |||
| Audio Support Format | Downstream direction: I2S master/slave, SPDIF slave, 4 channels, 8/16/24/32/44.1/48/96K sample per second, 16/20/24 bits per sample. Upstream direction: I2S master/slave, 1 channel, 8K sample per second, 16 bits per sample. | |||
| Cable Distance | 1080p: 120 meters, 720p: 150 meters | |||
| | | -2 0 ~840°C | ||
| Storage Temperature | -40 ~1250°C | |||
| Humidity | 0~90% Non-condensing | |||
| Physical Properties | Material | Metal chassis with mounting holes | ||
| Weight | 110 g | |||
| Dimension (L x W x H) | 85mm x 75mm x 30mm | |||
