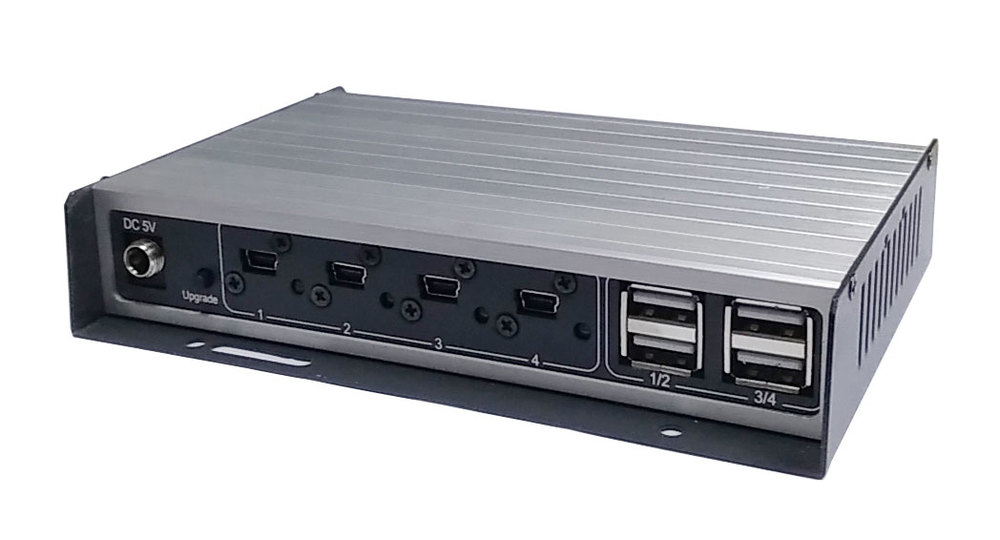

Beacon BE-405
4 Port USB Seamless Switch KM
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Provides 4 x USB Type A and 4 x mini USB ports.
- Seamless KM switching between PCs by one Roaming Mouse or Hotkey.
- Multiple PCs, multiple monitors, single point of input.
- Interactive LED light for screen identification.
- Flexible screen layout of 1 x 4, 4 x 1, or 2 x 2 on a single BE-405b for 4 PCs.
- Expandable to 5 x BE-405b for 16 PCs in a 4 x 4 screen layout.
- Adjustable mouse speed.
- Provides 2 x RS-232 port for third party external control.
- Firmware upgradable.
The BE-405b is a 4-port USB KM box that provides for interaction with up to 4 PCs using a single roaming (Free-Flow) mouse, and one keyboard. With excellent expandability, one Master BE-405b + four Slave BE-405bs let the user interact with a maximum of 16 PCs. The product provides “Roaming Mouse” functionality, which means the operator simply moves the mouse cursor across screen borders in any direction, either horizontally or vertically, instantly selecting the PC they need to control – providing super easy-to-use KVM switching that saves time and desk space.
| Model No. | BE-405b | ||
| USB Upstream | 4 x Mini USB to PC | ||
| USB Downstream | 4 (keyboard, mouse, expansion) | ||
| LED Light Indicator | 4 | ||
| RS-232 | 2 x 3-pin Phoenix terminal block | ||
| Power | DC 5V 1A | ||
| Environment | Operating Temp. | 0 to 70℃ | |
| Storage Temp. | -40 to 100℃ | ||
| Humidity | 0 ~ 80% non-condensing | ||
| Physical | Housing | aluminum | |
| Weight | 400g | ||
| Dimension | 110(L) x 154(W) x 30(H) mm | ||
