Beacon DV-95252

The DV-95252 is a perfect solution for Dual head DVI/VGA + Audio USB KVM Extender over Gigabit IP Ethernet. The system includes DV-95252T Dual head Transmitter and DV-95252R Dual head Receiver.

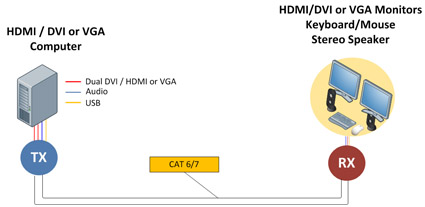

The Transmitter connects to PC’s 2 DVI/VGA, Audio, and USB; the Receiver connects to 2 DVI/VGA displays, speaker, microphone, and USB devices. The solution is based on standard of IP technology. The Transmitter converts input signals (video, audio, USB) and directly sends to the Receiver. On the other end of Receiver, receiving directly from the Transmitter then converts back to video, audio, USB… and sends to display, speaker, USB devices. It is a perfect solution for the Central Control Room Dual Head DVI/VGA KVM applications.

Model No.		DV-95252T	DV-95252R
		Transmitter	Receiver
Connectors	HDMI/DVI-I Input	2	N/A
	HDMI/DVI-I Output	N/A	2
	USB	2 x USB-B to PC	4 x USB-A
	Audio	2 x Line-In, 2 x Line-Out	2 x MIC-In, 2 x Line-Out
	Power	A C 100 ~ 240V
	System Port	2 x RJ45 Gigabit
Resolution		1080p or PC 1920 x 1200 @ 60Hz
Inter-connect Cable		CAT 6 / 7
Environment	Operation Temp.	0 ~ 70°C
	Storage Temp.	-20 ~ 85°C
	Humidity	0 ~ 80% Non-condensing
Physical Properties	Material	Metal
	Weight	1100g	1100g
	Dimension (L x W x H)	170 x 150 x 50 mm	170 x 150 x 50 mm

Ordering Information

Available Modules
DV-95252TX	Dual Head DVI/HDMI/VGA KVM extender TX
DV-95252RX	Dual Head DVI/HDMI/VGA KVM extender RX
