S-CONNECT - Beacon DV-95F25

Support 1080p or DVI 1920x1200@60Hz resolution.
Support standard LC/SC connector, SM/ MM, single core SFP module (1.25Gbps up).
One-to-one (Unicast), one-to-many (Multicast) real time broadcasting.
Support USB for PC remote control.
Support many-to-many Group Broadcasting if the Ethernet switch enabled the IGMP.
Support HDMI and 3.5mm stereo audio.
The Encoder/Decoder engine built with Scaler function, multiple RXs are flexible to be configured as Video-Wall displays with 180, 270゜Rotation.
Support IR and RS-232 bridge option.
Pure hardware design, plug-and-play, no any software installation is required.
Built-in HTTP for the IP address, device name, Multi/Unicast, Baud Rate, … settings.
Provide Connection Manager Software for Transmitters/Receivers Connection Management.
Provide Video-Wall Manager Software for Video-Wall Configuration and Operation Management.
FCC, CE, RoHS compliant.

The DV-95F25 is a perfect solution for HDMI/DVI/VGA extender with USB/IR/RS232 over IP based SFP Optical Module. The system includes DV-95F25T Transmitter (TX) and DV-95F25R Receiver (RX). The TX connects to PC or Blu-ray player for the HDMI/DVI/VGA source, the RX connects to display, speaker, microphone, and USB devices.

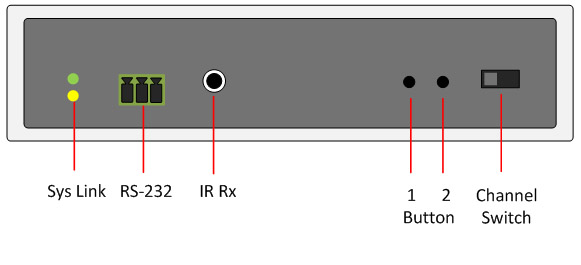

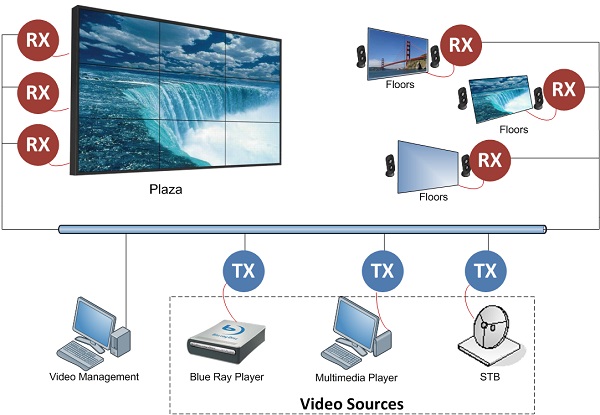

The solution is based on the standard IP technology, the TX converts input signals (Video, Audio, USB, …) to IP packets and Multicast/Unicast to Gigabit Ethernet switch. On the other end of RXs, receiving IP packets from Ethernet switch then converts back to HDMI/DVI/VGA, Audio, USB… and send to display, speaker, USB devices. The Encoder/Decoder engine built with Scaler function, multiple RXs are flexible to be configured as Video-Wall displays. Perfect for AV Broadcasting, KVM Matrix Control, Video-Wall applications like informational displays, entertainment, boardrooms, courtrooms, medical, military, and education digital signage.

Model No.		Transmitter	Receiver
Model No.		DV-95F25T	DV-95F25R
Connectors	DVI-I connector for HDMI/DVI/VGA Input	1	N/A
	DVI-I connector for HDMI/DVI/VGA Output	N/A	1
	Power	DC 9~32V, 15W	DC 9~32V, 20W
	Network Port	1 x SFP Module with LC/SC connector, single core of SM/MM cable
	USB Upstream (to PC)	1 xUSB-B	N/A
	USB to Devices	N/A	2 x USB-A 2.0 + 2 x USB-A 1.1
	Mounting Holes	Yes
	3.5mm Line-In	1	N/A
	3.5mm Mic-In	N/A	1
	3.5mm Line-Out	1
	IR remote control (option)	1 x IR Blaster	1 x IR Receiver
	RS-232	Yes
Resolution		1080p or PC 1920x1200 @60Hz
Inter-connect Cable		Single Mode (3KM), or Multi Mode (550 M) Optical Fiber
Environment	Operation Temp.	0 ~ 50°C
	Storage Temp.	-20 ~ 85°C
	Humidity	0 ~ 80% Non-condensing
Physical Properties	Material	Metal
	Weight	453g	453g
	Dimension (L x W x H)	150x110x28mm	150x110x28mm

Ordering Information

Available Modules
DV-95F25TX	HDMI/VGA/DVI/AUDIO KVM extender, fiber
DV-95F25RX	HDMI/VGA/DVI/AUDIO KVM extender, fiber

Beacon DV-95F25 Datasheet (793.1 kB)
