Beacon AV-96F30
4K2K HDM Iover SFP+

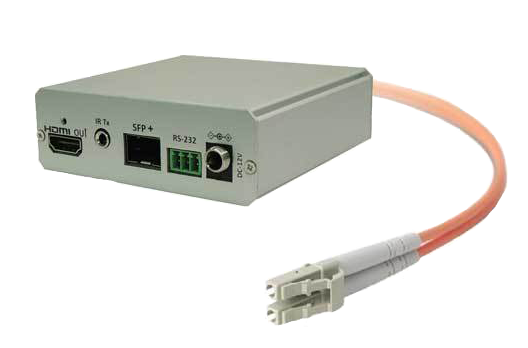

The AV-96F30 is a fully integrated HDMI Extender over 10G SFP+ Optics that can support 1080p and 4K2K HDMI in non-compressed, lossless extension. The product works with any HDMI 1.4 Audio/Video source in resolution up to 4K2K UHD 3840x2160@30Hz, as well as fully HDCP compliant and EDID/Hot Plug transparent. The optional IR and RS-232 can be used for the TV, screen, Set-top box control. The product is designed to work in the industrial environment of operating temperature 0 to 70℃. The LC terminated multi-mode fiber optic cable is used, preserving signal integrity and providing excellent protection from electromagnetic interference (EMI).
Compared to similar copper-based solutions, optical signal transmission provides inherent galvanic isolation and excellent immunity to electromagnetic interference. The units also feature metal enclosures, providing further protection against radiated noise. Locking HDMI and power connectors ensure trouble-free installation and long-lasting, reliable operation.
Model No. | Transmitter | Receiver | |||
AV-96F30T-RS | AV-96F30T-IR | AV-96F30R-RS | AV-96F30R-IR | ||
HDMI Input | 1 | N/A | |||
HDMI Output | N/A | 1 | |||
RS-232 | Yes | N/A | Yes | N/A | |
IR | N/A | Yes | N/A | Yes | |
Power | DC 12V/2A | ||||
Resolution | Up to 3840x2160@30Hz | ||||
| Duplex LC OM3 (300 meters) | ||||
| | 0 ~ 70°C | |||
Storage Temp. | -40 ~100°C | ||||
Humidity | 0 ~ 80% Non-condensing | ||||
Physical Properties | Material | | |||
Weight | 130g | ||||
Dimension | 88 x 90 x 30 mm |
Ordering Information
Available Modules | |
AV-96F30T | 4K HDMI o Fiber, w SFP+ module Transmitter |
AV-96F30R | 4K HDMI o Fiber, w SFP+ module Receiver |
