Beacon K305114MRS

Single PC Multiple access CAT5 KVM Extender

egenskaber
beskrivelse
yderligere information
PDF

UTP maximum cable length: 150 meters.
Console keyboard/mouse: USB and PS2.
UTP Cable type: CAT5e, EIA/TIA 568B.
Video resolution: max. 1600 x 1200 @ 60Hz depends on cable quality.
EDID: Learning from BE-114MRS¡¦s local monitor.
RS-232: 9600, 8-n-1, non flow control.
Multiple Console Access: Sharing mode and Exclusive mode.
All BE-114MRS and BE-6305MRS are firmware upgradable.
RJ45 pin assignments: straight through pin-to-pin, with pairing.

The K305114MRS is a CAT5 VGA KVM Extender for one PC with multiple accesses.
It includes BE-114MRS (4-port VGA with RS232 CAT5 KVM Transmitter) and BE-6305MRS (VGA with RS232 CAT5 KVM Receiver).
Using advanced CAT5e cable technology, one PC can be accessed from 4 (or 8) users. The receivers can be placed up to 150 meters away from the transmitter.

Model No.		BE-114MRS (Transmitter)	BE-6305MRS-150 (Receiver)
Connector	System Out	4 x RJ45 Female	N/A
	System In	N/A	1 x RJ45 Female
	Keyboard	N/A	1 x PS2 ; 1 x USB Type A
	Mouse	N/A	1 x PS2 ; 1 x USB Type A
	USB to PC	1 x USB Type A	N/A
	VGA In	1 x HDD15 Female	N/A
	VGA Out	1 x HDD15 Female	1 x HDD15 Female
	RS-232	1 x DB-9	1 x DB-9
	Power In	1 x AC, 60Hz/50Hz	1 x DC Jack

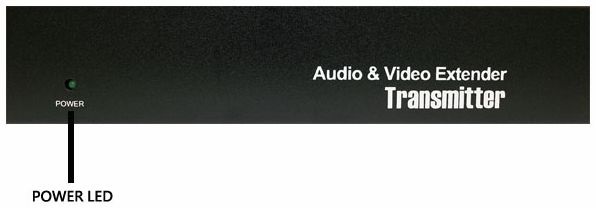

LED	Power	1 (Green)	1 (Green)
Video Gain/EQ		N/A	2 x Mini Port
Resloution		1600 x 1200 @ 60Hz ,DDC2B
Distance		Depends CAT5 cable quality. 0~150M
Phyical Properties	Weight	997 g	355 g
Phyical Properties	Dimension (L x W x H)	213 x 134 x 44 mm	140 x 93 x 32 mm

Ordering Information

Available Modules
BE-114MRS (Transmitter)	4 port CAT5 VGA/USB with RS232 KVM transmitter
BE-6305MRS-150 (Receiver)	150m CAT5VGA with RS232 KVM Receiver

Beacon K305114MRS Datasheet (542.2 kB)
