Beacon K303631UB
Single PC, Dual Access KVM Extender
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Cat5e cable to connect the PC and Console - up to 120/200 meters.
- Dual Console Operation - control PC from Remote (PS2/USB) and Local Consoles (PS2/USB).
- High resolution video - up to 1920 x 1200 @ 60 Hz
- Console Receiver monitor supports EDID
- Console Receiver built with video EQ/Gain adjustments for optimum image.
- The 200 Meters Receiver supports RGB skew delay adjustment function.
- Pure hardware, Plug n Play design, no any additional software or driver need.
The K303631UB is a Single PC, Dual Access KVM Extender Kit for installation where the console needs to be in a conveniently accessible location, but the computer system to reside in a long distance placed away from dust, and harsh environmental influences.
The Kit effectively extends PC KVM (Keyboard, Video and Mouse) control to the Console Receiver and also provides for convenient dual access; in addition to the Receiver console access, you can also connect a monitor/ keyboard/ mouse at the Transmitter site for local PC access.
| Kit No. | K303631UB | ||||
| Model No. |
BE-6301UH-110 (Transmitter) |

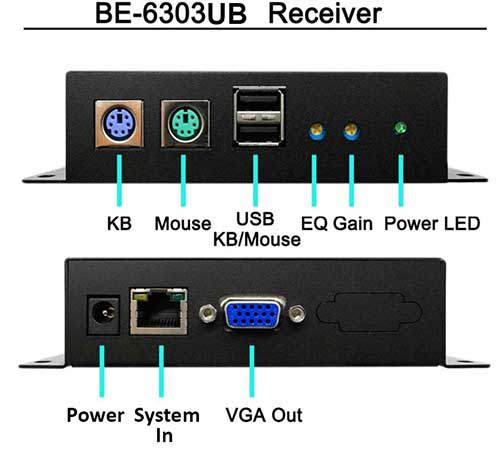

BE-6303UB-120 (Receiver) |
BE-6303UB-200 (Receiver) |
||
| Connector | Keyboard |
1 x 6-pin Mini-DIN, Female (Purple) 1 x USB Type A Female |
|||
| Video | 1 x HDD-15 Female (Blue) | ||||
| Mouse |
1 x 6-pin Mini-DIN, Female (Green), 1 x USB Type A Female |
||||
| KVM Ports | 1 x HDD-15 Female | ||||
| Power | 1 x DC Jack | ||||
| Unit to Unit | 1 x RJ-45 Female | ||||
| Video Gain | N/A | ||||
| Video EQ | N/A | ||||
|
LED
|
1 (Green) | ||||
|
Emulation Keyboard / Mouse |
PS2 & USB | ||||
| Resolution | 1920 x 1200 @ 60Hz, DDC2B | ||||
| Distance | 200m | 120m | 200m | ||
| Video Equalizer/Gain Adjustment | N/A | Yes | |||
| Video RGB Skew delay Adjustment | Yes | N/A | |||
| Power Consumption | DC 5.0V 1.2A | ||||
| Enviornment | Operating Temp. | 0 ~60°C | |||
| Storage Temp. | -20 ~ 60°C | ||||
| Humidity | 0 ~ 80% RH, Non-condensing | ||||
|
Physical Properties
|
Housing | Metal | |||
| Weight | 380 g | ||||
|
Dimension (L x W x H) |
4.5 x 3.3 x 1.9 cm | ||||
