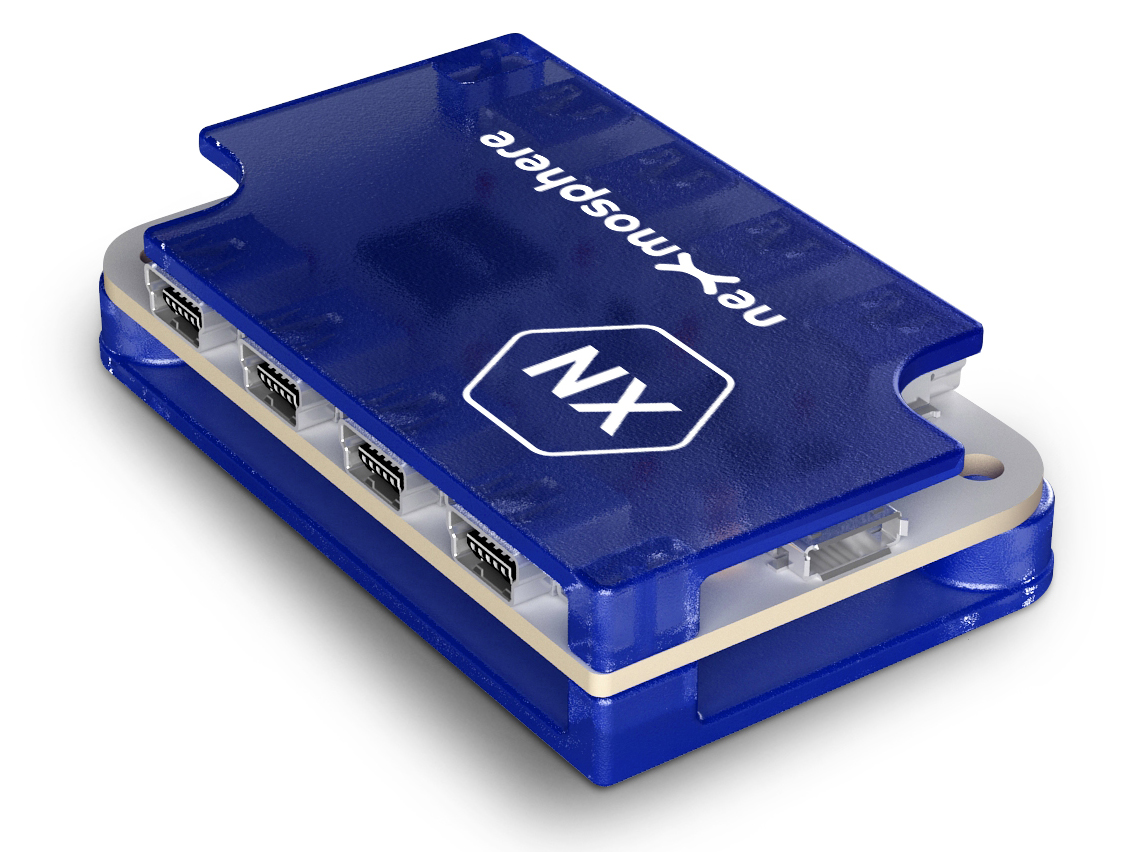

Nexmosphere XN-180

XN range

The Nexmosphere nano range is the smallest encased controller of its kind. It’s ultra-small form factor and smart design, make it an ideal product to use in virtually any application where space is a limiting factor and where integration with other systems is achieved. Connect your Nexmosphere Elements of choice, such as presence sensors, pick-up detectors, touch buttons or LEDs, and build your own unique shopper journey; LED lighting that starts glowing when a shopper approaches, product info showed if a product is placed on an “info platform”. Whichever interactivity suits your brand’s story, create a lasting impression using the XN Xperience controller.


X-talk interface

Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your own unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation. The X-talk interface also supports industry standard I/O devices, such as push buttons.

• Plug and smile interface
• Compatible with any of the Nexmosphere Elements
• Providing power to the connected Elements for easy system wiring

RS232 interface

The industry standard RS232 interface allows 3rd party product interfacing and can be controlled with X-script commands by any media player or content management system.

• Reliable high-speed RS232 communication
• Easy interfacing with 3rd party products
• No special drivers needed

X-Script API

The X-Script API runs on the controller by default. All connected Elements and system behavior can be controlled with our standardized API commands.

Benefits

• Auto start-up and configuration for highly reliable standalone applications (24/7 operability)
• Ultra-small form factor for easy installation in or behind displays
• Cost-efficient controller for small applications
• Compatible with all Nexmosphere Elements
• USB powered: single cable connection

SPECIFICATIONS

Thermal specifications


Operating temperature:
+10’C…+40’C/ +50’F … +104’F

Storage temperature:
-20’C…+50’C/ -4’F … +122’F

Cooling:
Passive cooling (no moving parts)



Electrical specifications


Operating voltage:
5VDC

Power consumption:
150mA

Max. system current:
2.0A

Cooling:
Passive cooling (no moving parts)



RS232 Serial communication specifications


Baudrate:
115200

Data bits:
8

Parity:
None

Stop bits:
1

Flow control:
None

Protocol:
ASCII

EOL:
CR+LF



Miscellaneous


• Miniature housing with two mounting holes for secure screw fixing
• Build-in magnet for easy mounting on metal surfaces
• Horizontal and vertical mounting allowed
• Diagnostic LED indicating potential issues
• Status LED indicating power and input/output operations



Mechanical dimensions


LxWxH:
62,5 x 37,5 x 14,8 mm

Screw fixation:
53 x 28 mm

Netto weight:
100g

ORDERING INFORMATION

Available Modules
XN-180	Xperience controller, 8x X-talk, RS232 (API)
