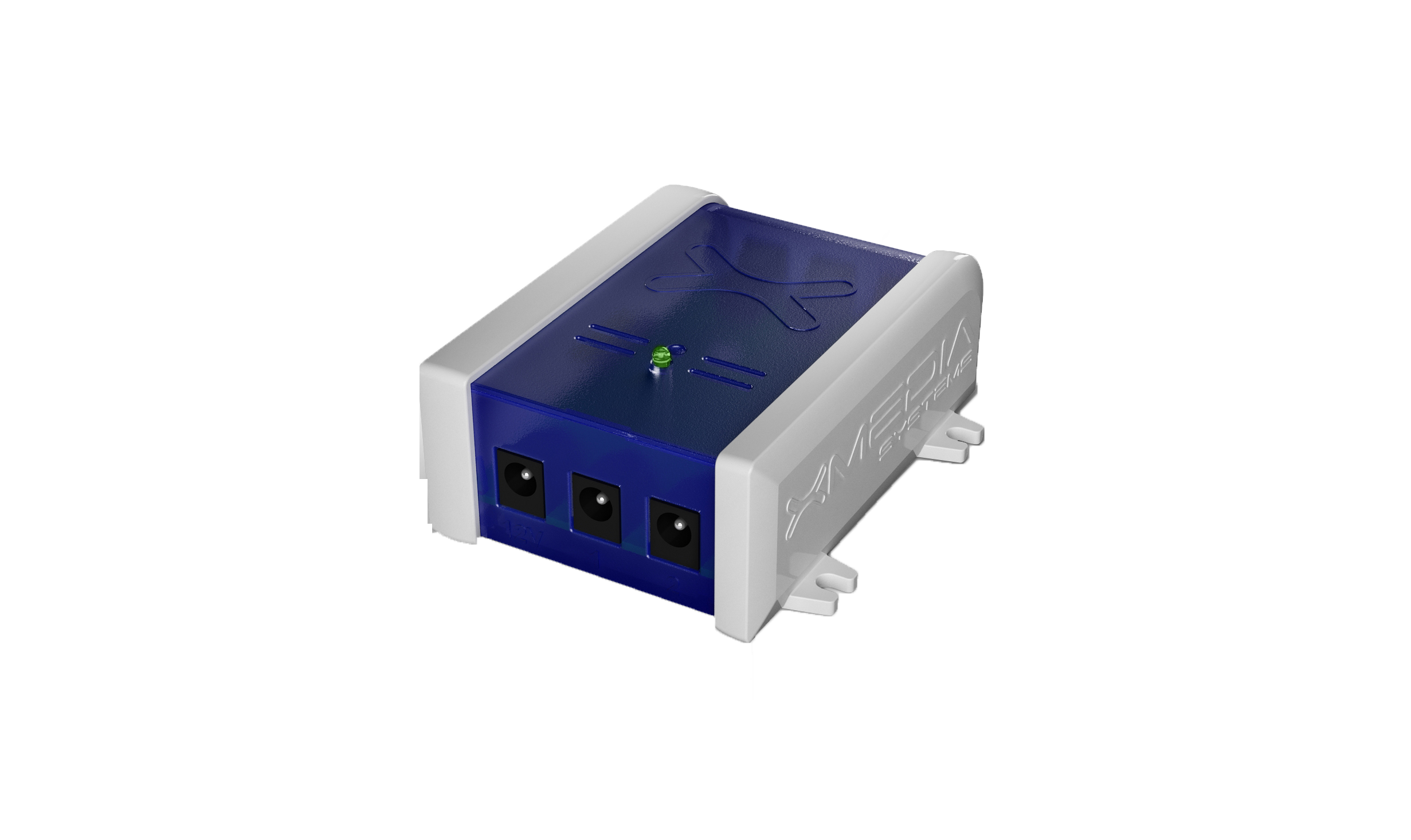

Nexmosphere EM-5

EM series

Combine any of the EM modules to create an exact fit for your application. hether it is the universal 8x X-talk interface, a 5 channel RGB led driver orone of the audio switching modules, all modules work seamlessly together without any need for configuration. See the EMproduct overview for all module Details


Dimmable LED interface

The LED output allows connection of standard market availble LED strip to illuminate large surfaces. All 5 individually ontrollable outputs are fully dimmable and deliver a smooth fading between the different intensities. The 12V power also provides power for the connected XM-controller eliminating the 5V power supply.

• 12V DC, 1.5A per channel (5 channel total output 1.5A max)
• Individually dimmable LED output (PWM/ 256 steps)
• Built-in power supply to power XM-Module and other EM-modules
• Reverse polarity protection LED output

EM expansion

Combine any of the EM modules to create an exact fit for your application.

• Compatible with any of the EM-modules
• Connect up to 5 EM-modules to one XM-controller
• Pre assembled factory build for your application
• Auto system configuration
• All EM-modules can be centrally controlled by XM-controller

Benefits

• Auto start-up and configuration for highly reliable standalone applications (24/7 operability)
• Combine any of the EM and XM modules to make an exact fit for your application

Specifications

Thermal specifications
Operating Temperature: +10°C to +40°C/ +50°F to +104°F
Storage Temperature: -20°C to +50°C/ -4°F to +122°F
Cooling: Passive Cooling (no moving parts)


Electrical Specifications
Operating voltage: 12VDC
Power consumption: 2A
Overload protection: Yes


Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant


Miscellaneous

• Robust housing with screw brackets for secure fixing
• Build-in magnets for easy mounting on metal surfaces
• Both horizontal & vertical mounting allowed
• Diagnostic LED indicating potential issues
• Status LED indicating power & input/output operations
• 1 year warranty (optional 3 year extended warranty available)

Packaging
Netto Weight: 81g
Items per carton 1 or 10 pcs (preassembled on XM Xperience controller)


Mechanical Dimensions
LxWxH: 94 x 72 x 36 mm / 94 x 134 x 36 mm
Screw fixation: 54 x 127,4 mm


Ordering Information

Product ID	Description	Quantity
EM-5	Expansion module, 5 channel LED output	1 pc
