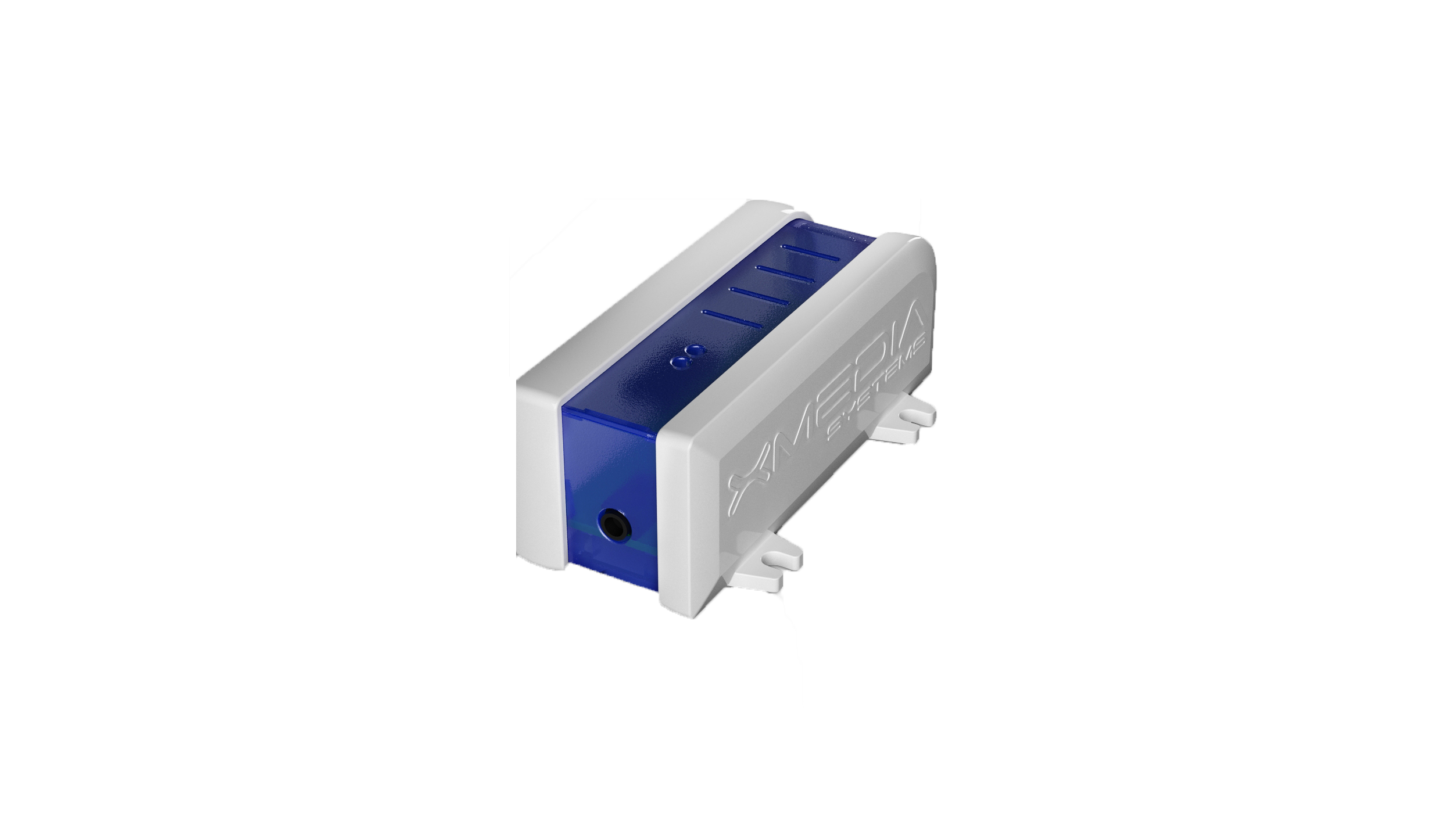

Nexmosphere EM-1
3.5mm Jack - EXPANSION MODULE
- 3.5mm Jack
EM Series
Combine any of the EM moudles to create an exact fit for your application.
Whether it is the unverisal 8x X-talk interface, a 5 Channel RGB led driver or one of the aduio switching modules,all moudles work seamlessly together without any need for configuration. See the EM product overvued for all module detaisl.
Audio out
The EM-1 is the simplified version of the EM-4 the 4 channel switching audio output- for applications where no audio switching is needed.
- Compatible with all XM-range controller with FLAC or MP3 player
EM expansion
Combine any of the EM modules to create an exact fit for your application
- Compatible with any of the EM-modules
- Connect up to 5 EM-modules to one XM-controller
- Pre assembled factory build for your application
- Auto system configuration
- All EM-modules can be centrally controlled by XM-controller
Benefits
- Auto start-up and configuration for highly reliable standalone applications(24/7 operability)
- Combine any of the EM and XM modules to macke an exact fit for your application
Specifications
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Cooling: Passive Cooling (no moving parts)
Electrical Specifications
Operating Voltage: 5VDC
Power Consumption: 20mA
Standards and Certifications
Compliant with IEC 60950-1(ed.1);am1;am2
CE certificate
US/CAN certification in progress
RoHs compliant
Miscellaneous
Packaging
Netto Weight: 32g
Items per Carton: 1 or 10 pcs (preassembled on XM; Xperience controller
Mechanical Dimensions
LxWxH: 94x4x36mm /94x105x36mm
Screw Fixation: 54x98mm
Ordering Information
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Cooling: Passive Cooling (no moving parts)
Electrical Specifications
Operating Voltage: 5VDC
Power Consumption: 20mA
Standards and Certifications
Compliant with IEC 60950-1(ed.1);am1;am2
CE certificate
US/CAN certification in progress
RoHs compliant
Miscellaneous
- Robust housing with screw brackets for secure fixing
- Buil-in magnets for easy mounting on metal surfaces
- Both horizonta & vertical mounting allowed
- Diagnostic LED indicating potential issues
- Status LED indicating power & input/output operations
- 1 year warranty (optional 3 year extended warranty avaiable).
Packaging
Netto Weight: 32g
Items per Carton: 1 or 10 pcs (preassembled on XM; Xperience controller
Mechanical Dimensions
LxWxH: 94x4x36mm /94x105x36mm
Screw Fixation: 54x98mm
Ordering Information
Product ID | Discription | Quantity |
EM-1 | Expansion moddule, 1 channel audio output | 1 pc |
