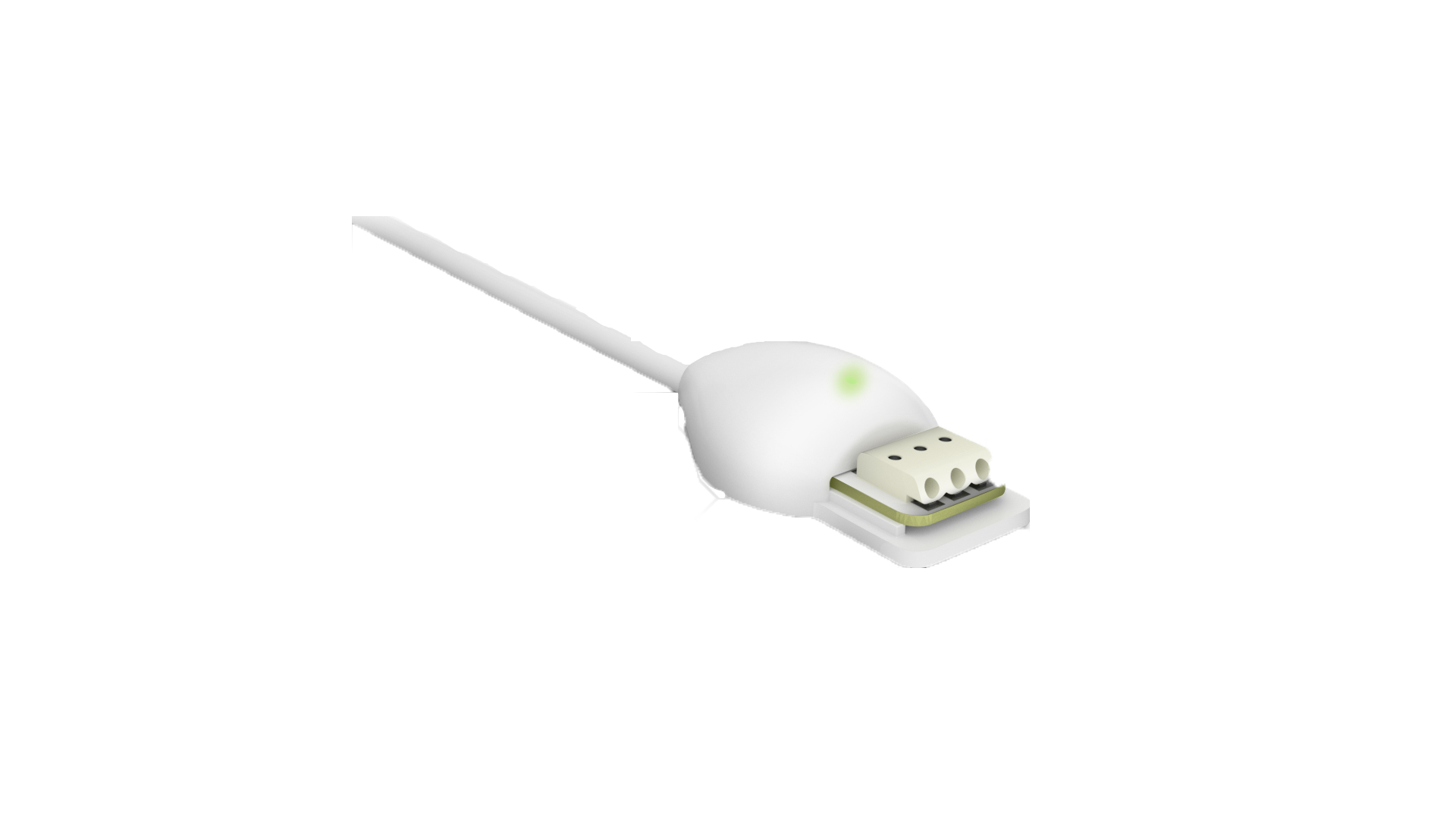

Nexmosphere X-Dot I3

X-talk

The X-Dot can easily be connected to any of the Nexmosphere Xperience Controller using the X-talk interface. All setting of the X-Dot are programable on the Xperience Controller enabling a seamless integration in your application

• 3pi connection (Button, Ground, LED+)
• Wiring size AWG 22-26, solid/stranded copper
• Wire step length, 4-5.5 mm
• Programming glowing/pulsing patterns with variable speed and LED intensity

Benefits

• Unique cable connection (bottom feed or side feed) enables invisible cable installation
• Securely mounts on any flat surface horizontal verical or angled
• Easy removable non-marking double sided tape
• Status LED for visual feedback
• Multiple data gathering funcitonalities on the Xperience controller offer a unique iinsight into traffic
• Interfaces with any 3rd party 3.3V I/O Device

Specifications

Thermal Specifications
Operating Temperature: +10°C to +40°C/ +50°F to +104°F
Storage Temperature: -20°C to +50°C/ -4°F to +122°F


Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power Consumption: 200mA
Max. LED output current: 150mA
Output voltage: 3.3V


Miscellaneous

• Three Cable lengths available (60/120/180)
• Custom colors and cable length available on reqeust
• 1 year warranty (optional 3 year extended warranty available)

Packaging
Items per Carton: 1, 10 or 50


Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant


Mechanical Dimensions
LxWxH: 37,3 x 22 x 10 mm (sensor interface)
Fixation: Interface: Double sided adhesive tape

Product ID	Description	Netto Weight	Quantity
XDW-I34	X-Dot Button interface, LED dimmer 3.3V, White, 60cm	13g	1 pc
XDW-I35	X-Dot Button interface, LED dimmer 3.3V, White, 60cm	19g	1 pc
XDW-I36	X-Dot Button interface, LED dimmer 3.3V, White, 60cm	22g	1 pc
