Nexmosphere X-Dot C3

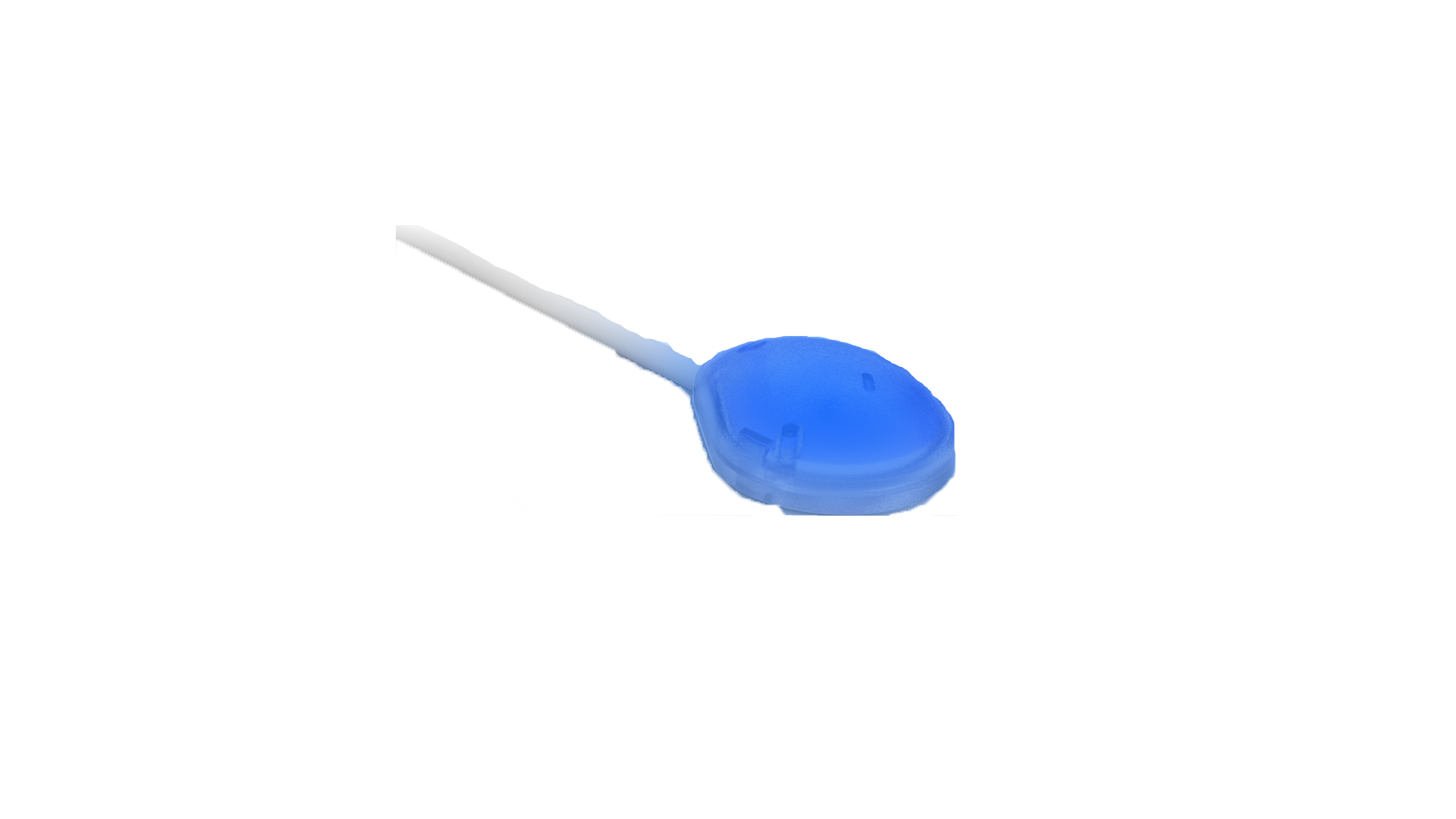

XD-C3 X-Dot Color

XD range

The nexmosphere X-Dot range offers a variety of functions in a ultra small form factor. It’s unique cable design offers the flexibility of both bottom and side feed, to use the elements directly on a surface or to hide the cable under the X-Dot. It is simple to install, use and maintain due to the high quality finishing and non-marking double sided tape.

The X-Dot Color is the ideal element to give visual guidance on display. Preselect a color with the nexmosphere Xperience controller matching exactly your presentations color scheme. From smooth glow to a high attention flashlight, X-Dot Color covers it all.


X-talk

The X-Dot can be easily connected to any of the Nemosphere Xperience controllers using the X-talk interface All settings of the X-dot are programmable on the Xperience controller side, enabling a seamless integration in your application.

• Plug and Smile interface
• Compatible with any nexmosphere Xperience controller
• Powered and programmalbe by nexmosphere Xperience controller for ease of use

LED Light

The high brightness LED offers a great visual guidance on the shelf space. The LED can be programmed at system startup t any of the 16 milion desired colors using the Xperience controller. The onboard LED drivers enablesa smooth dimming from 100-0%. Choose from a wide pallet of different pulsing/glowing patterns to draw the attention to the right spot.

• Smooth flicker free 12 bit dimming control
• Any desired color programmable by Xperience Controller
• Slectable glowing/pulsing patterns at variable speed

Benefits

>Unique cable connection (bttom feed or side feed) enables invisible calbe installation
• Securely mounts on any flat surface, horizontal, vertical or angled
• Easy removable non-marking double sided tape

Specifictaions

Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power consumption: 70mA


Standars and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant


Miscellaneous

• Three Cable lengths available (60/120/180cm)
• Custom colors and cable length available on request
• 1 year warranty (optional 3 year extended warranty available)

Mechanical Dimensions
LxWxH: 29 x 22 x 10mm
Fixation: Double sides adhesive tape


Ordering Information

Product ID	Description	Netto Weight	Quantity
XDW-C34	X-Dot Color LED (one color), 60cm	12g	1 pc
XDW-C35	X-Dot Color LED (one color), 120cm	18g	1 pc
XDW-C36	X-Dot Color LED (one color), 180cm	24g	1 pc
