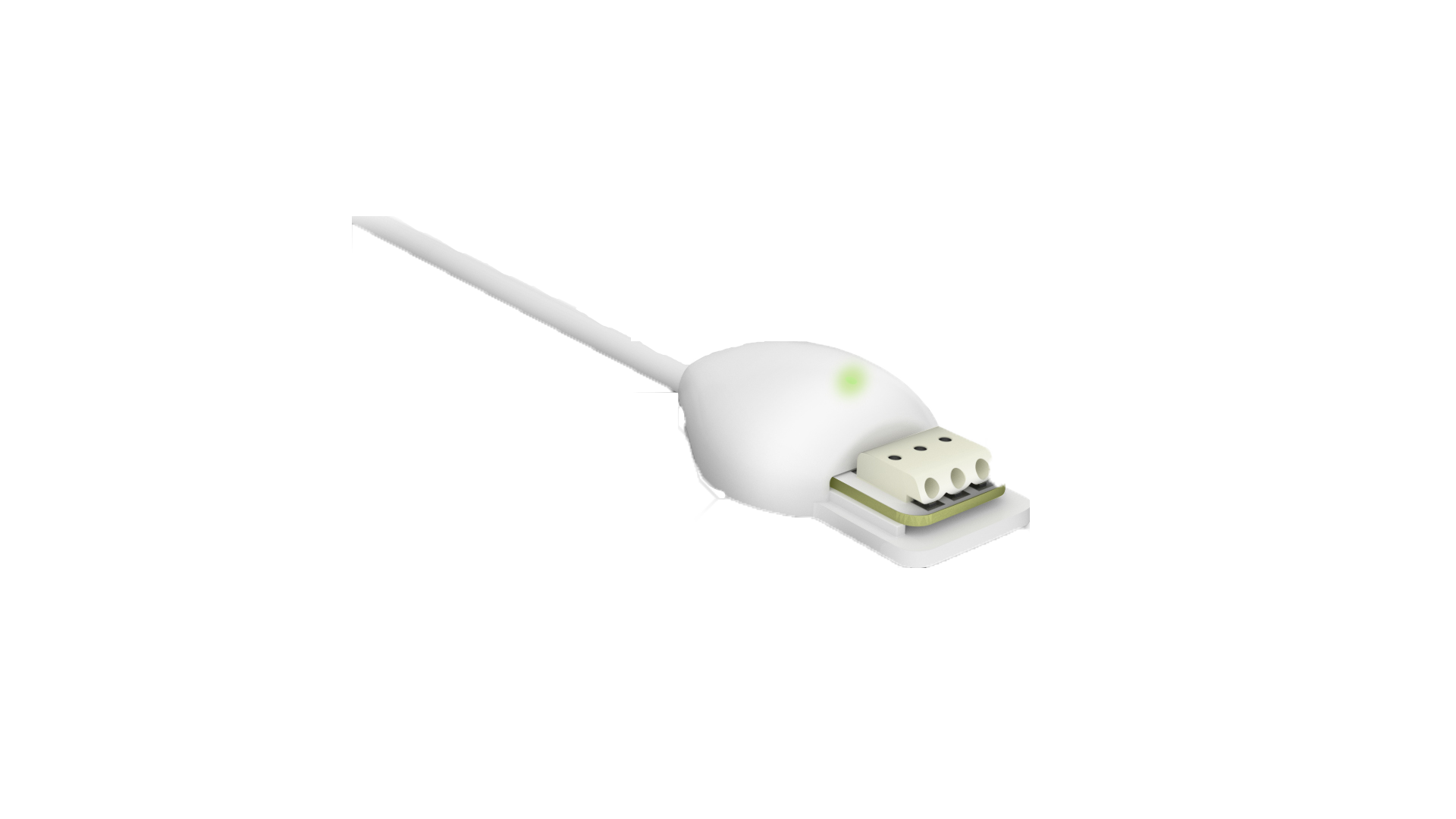

Nexmosphere X-Dot B0

X-talk

The X-Dot can be easily connected to any of the nexmosphere Xperience controllers using the X-talk interface. All settings of the X-dot are programmable on the Xperience controller side, enabling a seamless integration in your application

• Plug and smile interface
• Compatible with any nexmosphere Xperience Controller
• Powered and programmable by the nexmosphere Xperience controller for ease of use

Buzzer interface

The buzzer interface is a versatile 5V interface to steer any 5V-controlled device. The nexmosphere Xperience controller enables you to be in 100% control over the two outputs independently. Select different pre-programmed beep/alarm patterns depending on your needs

• Control any market-available 5V device (a total of max 200mA on both outputs)
• 2x2pin connection (ground, signal, 5V)
• Wiring size AWG 22-26, solid/stranded copper
• Wire strip length 4-5,5mm

Benefits

• Unique cable connection (bottom feed or side feed) enables invisible calbe installation
• Securely mounts on any flat surfaces, horizontal, vertical or angled
• Easy removable non-marking double side tape
• Status LED for visual feedback(programmable/dimmable on the Xperience controller)

Specifications

Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F


Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power Constumption: 200mA


Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant


Miscellaneous

• Three cable lengths available (60/120/180cm)
• Custom colors and cable length available on request
• 1 year warranty (optional 3 year extended warranty available)

Mechanical Dimensions
LxWxH: 37,3x22x10 mm
Fixation: Double sides adhesive tape

Product ID	Description	Netto Weight	Quantity
XDW-B04	X-Dot Buzzer interface only, White, 60cm	13g	1 pc
XDW-B05	X-Dot Buzzer interface only, White, 120cm	19g	1 pc
XDW-B06	X-Dot Buzzer interface only, White, 180cm	22g	1 pc
