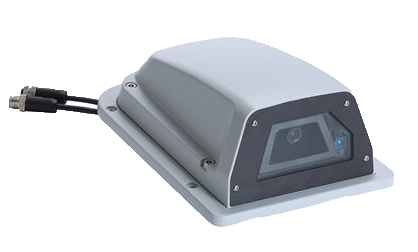

MOXA VPort 06EC-2V Series
EN 50155, 1080p resolution, day & night outdoor IP cameras
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- IP67-rated
- 1920 x 1080 resolution at up to 60 fps
- Built-in front glass heater to remove snow and frost
- iCapTrue™ image enhancement technology
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- ONVIF Profile S support for standardization and interoperability
- Complies with all EN 50155 mandatory test items
The VPort 06EC-2V outdoor IP cameras support 1080P (1920 x 1080) resolution video images at up to 60 frames per second. iCapTrues new image enhancement technology uses an advanced AE and AWB algorithm to produce better image quality in a variety of environments. The chassis design is IP67-rated, and has been shown to provide ample dust and rain protection, and with a built-in front glass heater and a tough outer cover, the cameras have the versatility and ruggedness needed for outdoor mobile IP video surveillance applications. In addition, models capablee of operating between -40 ~70°c are available.
Specifications
Memory
Input/Outout Interface
Ethernet Interface
Ethernet Software Features
Security Functions
Power Parameters
Camera Characteristics
Video Interface
Camera Softare Development
Software Requirements
Physical Characteristics
Environmental Limits
Standards and Certifications
MTBF
Warranty
Package Contents
Ordering Information
Accessories (sold separately)
Camera Mounting Kits
Memory
| microSD Slot | SDXC |
Input/Outout Interface
| Digital Output Channels | 1 |
| Contact Current Rating | Resistive Load: 1A @ 24VDC |
| Connector | 5-pin A-coded male M12 connector with 20cm cable |
Ethernet Interface
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | 1 |
Ethernet Software Features
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
Security Functions
| Password | User-level password protection |
| Filter | IP Address |
| Encryption | HTTPS |
Power Parameters
| No. of Power Inputs | 2 |
| Soruce of Input Power | PoE(IEEE 802.3af) |
| Input Voltage | 24 VDC for front-window heater(for defrosting) |
| Input Current | 0,167A @ 48VDC, 0,9A @ 24VDC |
| Power Connector | M12 Connector |
| Note | PoE is for powering the camera; 24VDC is for powering the heater |
Camera Characteristics
| Sensor | 1/3-in 1080P progressive scan CMOS |
| Lens | VPort 06EC-2V36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39° VPort 06EC-2V42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34° VPort 06EC-2V60M Series: f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24° VPort 06EC-2V80M Series: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17° |
| Minimum Illumination | Color: 0,2lux, at F1.6(Gain High, 50 IRE,1/3sec) B/W: 0,05lux, at F1.6(Gain High, 50 IRE, 1/3 sec) |
| Day & Night | Auto/Color/BW, ICR control |
| ICR Control | Auto |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| Electronic Shutter | Auto, Fixed(1/3 to 1/2500 sec) |
| S/N Ratio | Maximum 50dB (AGC off; DNR on) |
| DNR ( Digital Noise Reduciton) | Built-in 2D/3D DNR |
| WDR (Wide Dynamic Range) | 100 dB |
| AGC (Auto Gain Control) | 2X,4X,8X,16X |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°,270° rotation |
| Image Setting | Manual tuning with saturation, sharpness and contrast |
| Camera Angel | Pan +-5°, Tilt +-10/5°(controlled manually) |
Video Interface
| Video Compression | H.264 (ISO/IEC 04496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| NTSC/PAL | Auto-sensing or manual |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients Digital PTZ |
Camera Softare Development
| Intelliegent Video | Camera Tampering Detection |
| Video Motion Detection | 3 independently configurable areas |
| Shock Detection | Built-in G Sensor |
| Humidity | Detects cameras internal humidity |
| Scheduling | Daily Repeat Timing Schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic Transfer of stored images via email or FTP as eventtriggered actions |
| Pre-Alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Video Recording | Event recodrings stored on the SD card |
Software Requirements
| Memory Size | 2 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
Physical Characteristics
| Housing | Metal IP67 Transparent Glass cover |
| Dimensions | 83x168x233 mm (3,28x6,61x8,78in) |
| Weight | 1630g (3,59 lb) |
| Installation | Wall Mounting (standard) |
| Protection | -ct Models: PCB conformal coating |
Environmental Limits
| Operating Temperature | Standard Models: -25 ~ 55°C (-13 ~ 131°F) Wide Temp Models: -40 ~ 70°C (-40 ~ 158°F) |
| Storage Temperature (package Included) | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 5 ~ 95% (non-condensing) |
| Ingress Protection | IEC 60529, IP67 |
| Salt Spray Test | ASTM B368 (CASS), 125 hours |
| Attitude | 2000 m |
Standards and Certifications
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Railway Fire Protection | EN 45545-2 |
| Safety | UL 60950-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Railway | EN 50155 (complies with a portion of EN 50155 specifications) |
MTBF
| Time | 480.269 hrs |
| Standards | Telcordia SR332 |
Warranty
| Warranty Period | 5 years Note: Limited Warranty on moving parts; see Moxas online warranty policy for details |
| Details | See www.moxa.com/warranty |
Package Contents
| Device | 1 x VPort 06EC-2V Series Camera |
| Installation Kit | 1 x cap, male, metal, for M12 port 1 x 15 g dry pack (VP-DPO2) 1 x sticker |
| Documentation | 1 x document and software CD 1 x quick installation guide 1 x warranty card |
Ordering Information
| Model Name | Lens | Local Storage | Operating Temp. | Conformel Coating |
| VPort 06EC-2V36M | 3,6mm | microSD slot, SDXC interface | -25 ~ 55°C | - |
| VPort 06EC-2V42M | 4,2mm | microSD slot, SDXC interface | -25 ~ 55°C | - |
| VPort 06EC-2V60M | 6,0mm | microSD slot, SDXC interface | -25 ~ 55°C | - |
| VPort 06EC-2V80M | 8,0mm | microSD slot, SDXC interface | -25 ~ 55°C | - |
| VPort 06EC-2V36M-T | 3,6mm | microSD Slot, SDXC interface | -40 ~ 70°C | - |
| VPort 06EC-2V42M-T | 4,0mm | microSD slot, SDXC interface | -40 ~ 70° | - |
| VPort 06EC-2V60M-T | 6,0mm | microSD slot, SDXC interface | -40 ~ 70°C | - |
| VPort 06EC-2V80M-T | 8,0mm | microSD slot, SDXC interface | -40 ~ 70°C | - |
| VPort 06EC-2V36M-CT | 3,6mm | microSD slot,SDXC interface | -25 ~ 55°C | Yes |
| VPort 06EC-2V42M-CT | 4,2mm | microSD slot, SDXC interface | -25 ~ 55°C | Yes |
| VPort 06EC-2V60M-CT | 6,0mm | microSD slot,SDXC interface | -25 ~ 55°C | - |
| VPort 06EC-2V80M-CT | 8,0mm | microSD slot,SDXC interface | -25 ~ 55°C | Yes |
| VPort 06EC-2V36M-CT-T | 3,6mm | microSD slot,SDXC interface | -40 ~ 70°C | Yes |
| VPort 06EC-2V42M-CT-T | 4,2mm | microSD slot,SDXc interface | -40 ~ 70°C | Yes |
| VPort 06EC-2V60M-CT-T | 6,0mm | microSD slot,SDXC interface | -40 ~ 70°C | Yes |
| VPort 06EC-2V80M-CT-T | 8,0mm | microSD slot, SDXC interface | -40 ~ 70°C | Yes |
Accessories (sold separately)
Camera Mounting Kits
| VP-DP02 | 15 g dry pack with hook-and-loop fastener |
