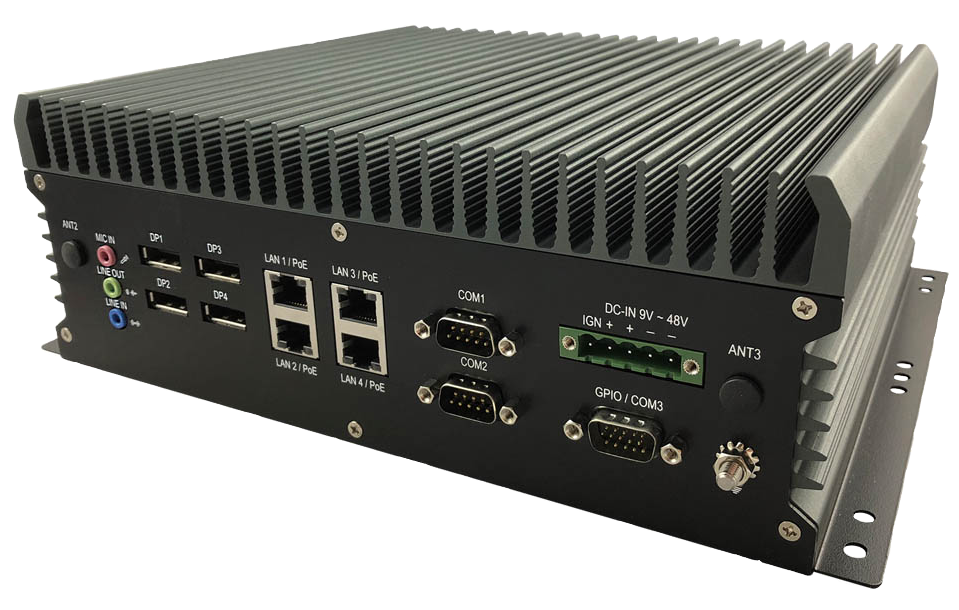

SINTRONES ABOX-5100G
AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x HDMI/ 4 x USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V AI GPU Computing
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- AMD Ryzen™ Embedded V1000 Platform
- AMD Embedded Radeon™ E9260 GPU
- 8 x GPI, 4 x GPO and 2 x RS-232/422/485
- Dual Hot Swappable SATA Storage
- 9-48VDC Input and Operating Temp.: -40~60°C
- 8 x GbE LAN (Optional for 8 x PoE)
AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x HDMI/ 4 x USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V AI GPU Computing
Specifications
- System
- CPU
AMD Ryzen™ V1807B Quad Core Soc (3.3~3.6GHz)
Memory
2 x DDR4 2400 MHz SO-DIMM up to 32GB
LAN Chipset
Intel i210
Watchdog
1 ~ 255 Level Reset
TPM
2.0
I/O
- Serial Port
3x RS-232/422/485
USB Port
4 x USB 3.0 Ports
LAN
8 x RJ45 Ports for GbE (Optional for 8 x POE total 100W max.)
Video Port
4 x DP, 4 x HDMI
DIO Port
8 x GPI and 4 x GPO
Audio
1 x Line-out, 1 x Line-in and 1 x Mic-in
Expansion Bus
3 x Full Mini-PCIe Slots and 1 x M.2 A-E Key 2230 Slot (2 x SIM Card Sockets for 3G/LTE)
Graphics
- Graphics
AMD Radeon™ E9260 GPU
Support for OpenGL 4.5. and OpenCL™ 2.0.
Support for Mantle and AMD LiquidVR™
Support for DirectX® 12 (Feature Level 12_0) features
Resolution
Max Resolution (DP) : 4096x2160@60Hz - AMD CPU
Max Resolution (HDMI 2.0b) : 4096x2160@60Hz - GPU E9260
Storage
- Type
2 x 2.5" Drive Bay for SATA Type Hard Disk Drive / SSD
Power Requirement
- Power Input
9V -48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Power Management
Vehicle Power Ignition for Variety Vehicle
Power Off Control
Power off Delay Time Setting by Software and BIOS
Backup Battery
Internal Battery Kit for UPS (Optional)
Patent No. : M447854 - Build-in Battery
Mechanical & Environmental
- Dimensions (LxWxH)
260 x 226 x 95 mm
Mounting
Wall-mount
Weight
5220g (bare-bone)
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 60°C * CPU configure at 25W
Storage Temp.
-40ºC ~ 80°C
Certifications
CE, FCC Class A, E13
Patent No. (Taiwan)
M447854
Ordering Information
- Part Number
ABOX-5100G-V1807
ABOX-5100PG1-V1807 (with PoE)
Description
AMD Ryzen™ Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x HDMI/ 4 x USB 3.0/ AMD Radeon™ E9260 GPU/ 9-48V AI GPU Computing
