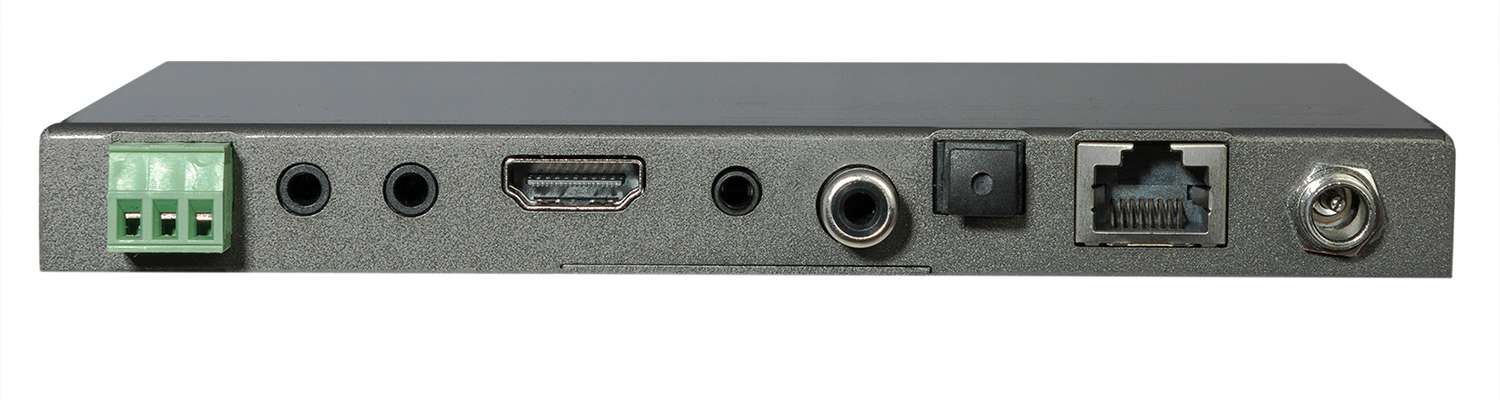

Gefen EXT-UHDA-HBTL-RX
4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
- HDMI Input supports 600 MHz TMDS Clock and data throughput of up to 18 Gbps: 4K Ultra HD (3840 x 2160) or 4K Cinema-DCI (4096 x 2160) up to 60 Hz, 4:4:4
- HDBaseT™ extension supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
- Automatic switching of 4K HDMI and VGA
- Manual switching of 4K HDMI and VGA via front panel button or RS-232
- VGA scaling up to 1920 x 1200 with picture adjustments
- Extend HDMI, VGA with analog audio, and RS-232 over a single CAT-5e:
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
- 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
- 1080p Full HD (60 Hz) or WUXGA (1920x1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
- HDMI Features Supported:
- HDMI 2.0
- HDCP 2.2 and 1.4
- 12-bit Deep Color (at 1080p)
- LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Analog L/R audio input for VGA
- RS-232 control of switching, scaler, and EDID management functions
- Bi-Directional RS-232 extension when used with a compatible Receiver
- 2-way IR extension when used with a compatible Receiver
- Bi-Directional Power over HDBaseT™ (POH) provides power to this Sender or a compatible Sender unit over the link cable - only one side will need external power
- Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
- Advanced EDID Management for rapid integration of source and display
- Field-updateable firmware via mini-USB port, using the Gefen Syner-G™ software
- Locking power connector
- Compact, ultra-low-profile enclosure is surface-mountable and can be hidden away
Extend HDMI with audio breakout up to 70 meters/230 feet, over a single CAT-5
The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable. It also de-embeds analog L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen’s implementation of the HDBaseT™ technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit. It can also send RS-232 commands from a third-party controller placed by the Receiver, for switching, scaler controls, and EDID management of a compatible Sender unit. Bi-Directional HDBaseT™ standard POH (Power Over HDBaseT™) technology can supply power remotely from the Receiver unit to a compatible Sender unit, or it can pass power from a compatible Sender unit to the Receiver, using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. The Receiver’s small, ultra-low-profile enclosure can be securely surface-mounted and conveniently hidden away from sight behind the display. It also accommodates a Gefen locking power supply plug for secure connection.
Note:
Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference.
SPECIFICATIONS | |
Recommended Receiver | EXT-UHDA-HBTL-RX |
Maximum TMDS Clock | HDMI Input: 600 MHz Extension System: 300 MHz |
Total Signal Bandwidth/Data Rate | HDMI Input: 18 Gbps Extension System: 10.2 Gbps |
Video Input Connector | (1) HDMI Type A 19-pin, female (1)VGA HD-15, female |
L/R Analog Audio Input port | (1) 3.5mm mini-stereo jack |
Link Connector | (1) RJ-45, shielded |
RS-232 port | (1) 3-pin Phoenix |
IR In/Ext port | (1) 3.5mm mini-stereo jack |
IR Out port | (1) 3.5mm mini-mono jack |
IR Extender type | EXT-RMT-EXTIRN |
Firmware Update port | (1) USB-Mini-B, female |
Power Indicator LED | (1) Blue |
HDMI Input Indicator LED | (1) Green |
VGA Input Indicator LED | (1) Green |
Auto-Switch-On Indicator LED | (1) Green |
Input Select Switch (hold to select Auto or Manual) | (1) tact-type |
Menu (On Screen Display) Select Switch | (1) tact-type |
Volume Up and Down Switches (hold both for Mute) | (2) tact-type |
Power Supply Connector | (1) 5.5mm barrel/2.1mm pin, Locking |
Power Supply | (1) 12V DC, locking, 5.5mm barrel/2.1mm pin |
Power Consumption | Not powering a Receiver: 9W maximum Powering a Receiver: 22W maximum |
Operating Temperature | +32 to +122 °F (0 to +50 °C) |
Operating Humidity | 5% to 90% RH, non-condensing |
Storage Temperature | -4 to +185 °F (-20 to +85 °C) |
Storage Humidity | 0% to 95% RH, non-condensing |
MTBF | 50000 hours |
Dimensions (W x H x D, not including the connectors) | Not including the mounting brackets: 7.7" x 0.93" x 4" (195mm x 24 x 100mm) Including the mounting brackets: 8.7" x 0.93" x 4" (221mm x 24 x 100mm) |
Net Weight | 0.8 lbs (0.35 kg) |
Shipping Weight | 1.9 lbs (0.9 kg) |
In The Box
4K Ultra HD Multi-Format 2x1 HDBaseTâ„¢ Sender unit (EXT-UHDV-HBTLS-TX) | 1 |
12V/3A DC power supply with US/EU/UK/AU Plugs (EXT-PS12U3IP-LP21-6) | 1 |
3-pin Phoenix plug (attached to unit) | 1 |
Mounting Brackets | 2 |
Self-adhesive rubber feet | 4 |
Quick Start Guide | 1 |
