Gefen EXT-DVI-FM15

Modular DVI extension using a single-strand multimode fiber optic cable with Virtual EDID

The Gefen DVI FM15 Modular Fiber Optic Extender allows DVI signal to be extended up to 3300 feet (1 km) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. A single-strand of 50/125um laser-optimized multimode (OM3) SC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.


Video Support

Supports resolutions up to 1920 x 1200

Specifications

Maximum Pixel Clock:
165 MHz

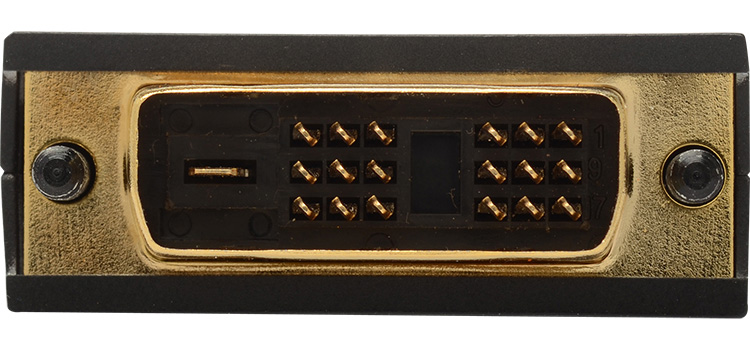

Video Input Connector (Sender):
DVI-D, 19-pin, male

Video Output Connector (Receiver):
DVI-D, 19-pin, male

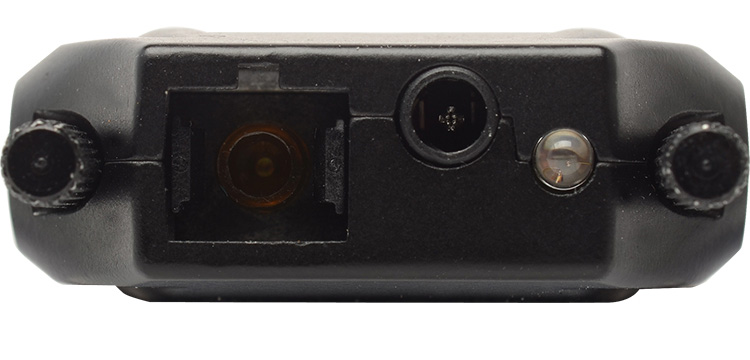

Link Connector (Sender / Receiver):
(1) Type SC fiber (50/125°m)

Power Supply (Sender):
5V DC (not needed for most applications)

Power Supply: (Receiver):
5V DC

Power Consumption (Receiver):
0.95 W (max.)

Operating Temperature:
+32 to +122 °F (0 to +50°C)

Storage Temperature:
-22 to +158 °F (-30 to +70 °C)

Relative Humidity:
5% to 85%

Dimensions (W x H x D):
1.96" x 0.59" x 2.98" (49.78mm x 14.98mm x 75.69mm)

Shipping Weight:
2 lbs. (0.91 kg)

In The Box

DVI Fiber Optic (Dongle Modules) (Sender Module) (EXT-DVI-FM15S)	1
DVI Fiber Optic (Dongle Modules) (Receiver Module) (EXT-DVI-FM15R)	1
5V DC Power Supply (EXT-PS51AIP-1.3)	2
Quick-Start Guide (QSG-DVI-FM15)	1
