Gefen EXT-HD-CP-FM10

Pigtail module HDMI extension using a single-strand multimode fiber optic cable with HDCP support

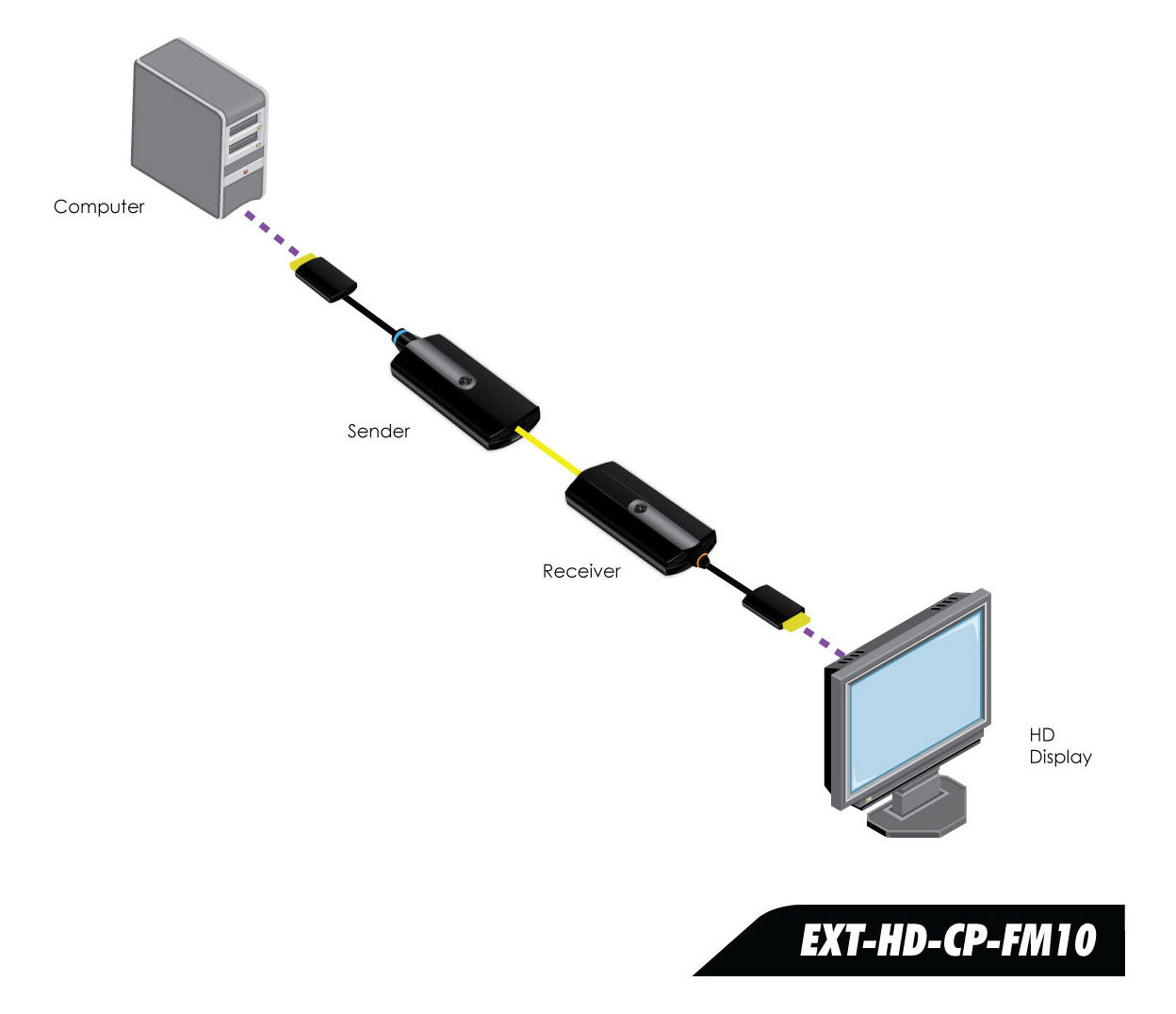

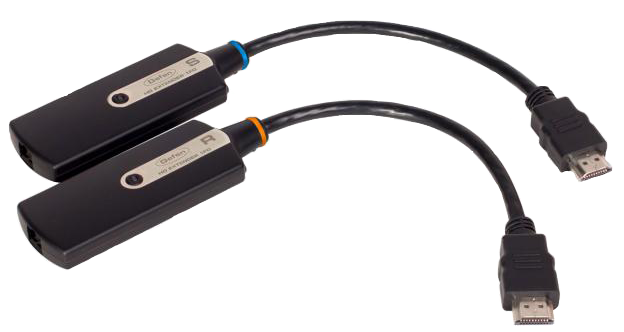

TheGefen FM10 HDMI Fiber Optic Extender with HDCP support extends HDMI up to 3300 feet (1000 meters) using single-strand 50/125 µm multimode (OM2/OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend HDMI.


Video Support

Supports resolutions up 1080p Full HD


Audio Support

Supports HD lossless audio: LPCM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD® Master Audio™

Specifications

Maximum Pixel Clock:
225 MHz

Video Input Connector (Sender):
(1) HDMI Type-A, 19-pin, male

Video Output Connector (Receiver):
(1) HDMI Type-A, 19-pin, male

Link Connector (Sender/Receiver):
(1) Type SC fiber (50 /125°m)

Power Supply (Sender):
5V DC (not needed for most applications)

Power Supply (Receiver):
5V DC

Power Consumption (Receiver):
1.5W (max.)

Operating Temperature:
+32 to +122 °F (0° to +50° C)

Storage Temperature:
-4 to +158 °F (-20° to +70° C)

Relative Humidity:
10 to 80%

Dimensions (W x H x D):
1.18" x 0.47" x 10.71" (29.97mm x 11.93mm x 272.03mm)

Shipping Weight:
1 lb (0.45 kg)

In The Box

Fiber Optic for HDMI (Pigtail Modules) (Sender Pigtail) (EXT-HD-CP-FM10S)	1
Fiber Optic for HDMI (Pigtail Modules) (Receiver Pigtail) (EXT-HD-CP-FM10R)	1
5V DC Power Supply (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)	1
Quick-Start Guide (QSG-HD-CP-FM10)	1
