Gefen EXT-VGA-AUDIO-141
VGA Audio Extender
- Extends VGA and Analog L/R Audio up to 150 feet (45 meters) over one CAT-5 cable
- Supports resolutions up to 1920 X 1080
- Bi-directional audio transmission for L/R audio and microphone
- Trim pot and DIP switches for fine video equalization
Similar applications can be fulfilled by using EXT-VGA-141SRN or EXT-VGA-141LR, and EXT-AUD-1000
Extends VGA and analog L/R audio over a single CAT-5 cable.

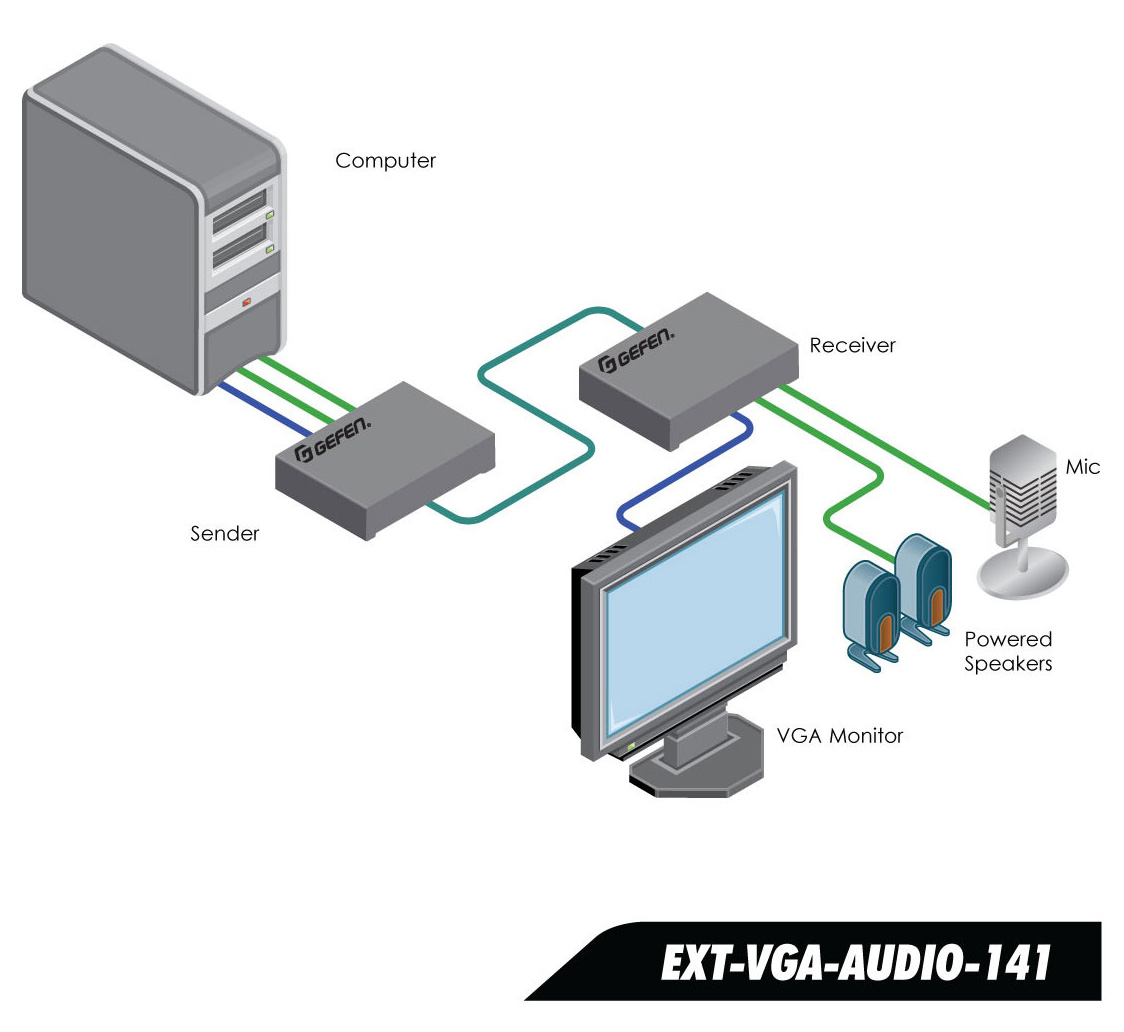

The VGA Extender with L/R Audio extends a VGA computer video and analog L/R audio up to 150 feet over just one CAT5 cable. The Sender hooks up to the computer and the Receiver connects to the remotely extended VGA display and control devices such as keyboard, mouse, and audio devices.
By choosing widely available CAT5e cable for extension, Gefen has made installation simple and flexible. The CAT5e cable can be tucked under carpet or run above a ceiling.
Specifications
- Video Amplifier Bandwidth:
350 MHz
Input Video Signal:
1.2 V p-p
Input Sync Signal:
5V p-p (TTL)
Horizontal Frequency Range:
15-70 kHz
Vertical Frequency Range:
30 - 170 Hz

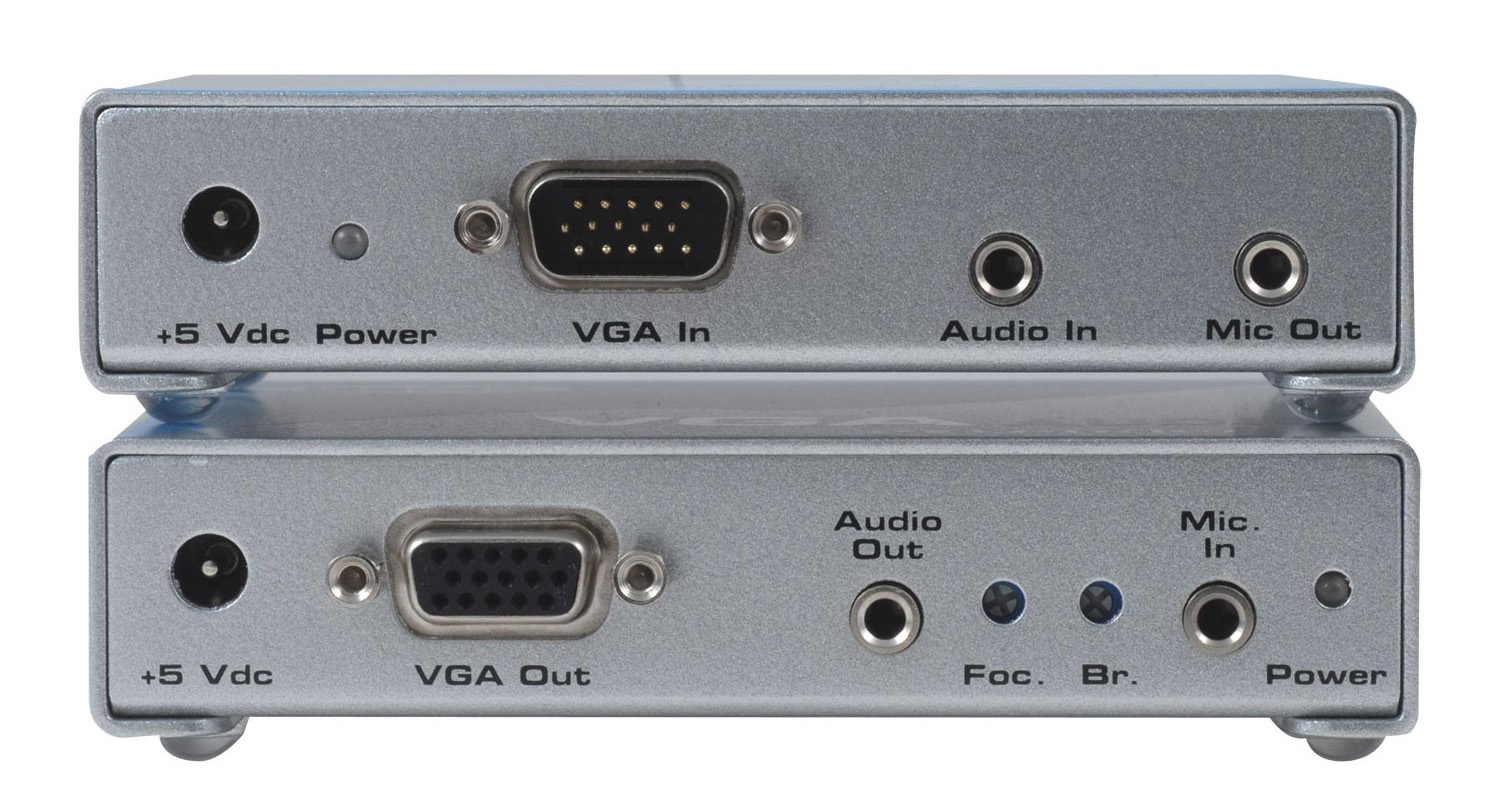

Video Input Connector (Sender):
(1) VGA HD-15, male
Video Output Connector (Receiver):
(1) VGA HD-15, female
Audio Input Connector (Sender):
(1) 3.5 mm mini-stereo jack
Audio Output Connector (Receiver):
(1) 3.5 mm mini-stereo jack
Microphone Output Connector (Sender):
(1) 3.5 mm mini-mono jack
Microphone Input Connector (Receiver):
(1) 3.5 mm mini-mono jack
Link Connector (Sender / Receiver):
(1) RJ-45,Shielded
Audio Frequency Response:
20Hz - 20kHz
Power Supplies (Sender / Receiver):
5V DC
Power Consumption:
5W (max.) each
Dimensions:
4.7" W x 2.8" D x 1.1" H
In The Box
VGA Audio Sender unit(1) (1) | 1 |
VGA Audio Receiver unit | 1 |
6 ft. VGA cable (M-F) | 1 |
6ft. Audio Cable | 1 |
5V DC Power Supplies | 2 |
User Manual | 1 |
