Gefen EXT-WHD-1080P-SR

Short range transmitter for wireless HDMI. 5 GHz, works up to 33 feet (10 meters).

This sending unit works with the EXT-WHD-1080P-SR short range wireless HDMI extender system.

The Wireless HDMI Short Range Extender system sends high definition audio and video to any HDTV screen up to 33 feet (10 meters). 5 GHz.

It extends HDCP-compliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported.

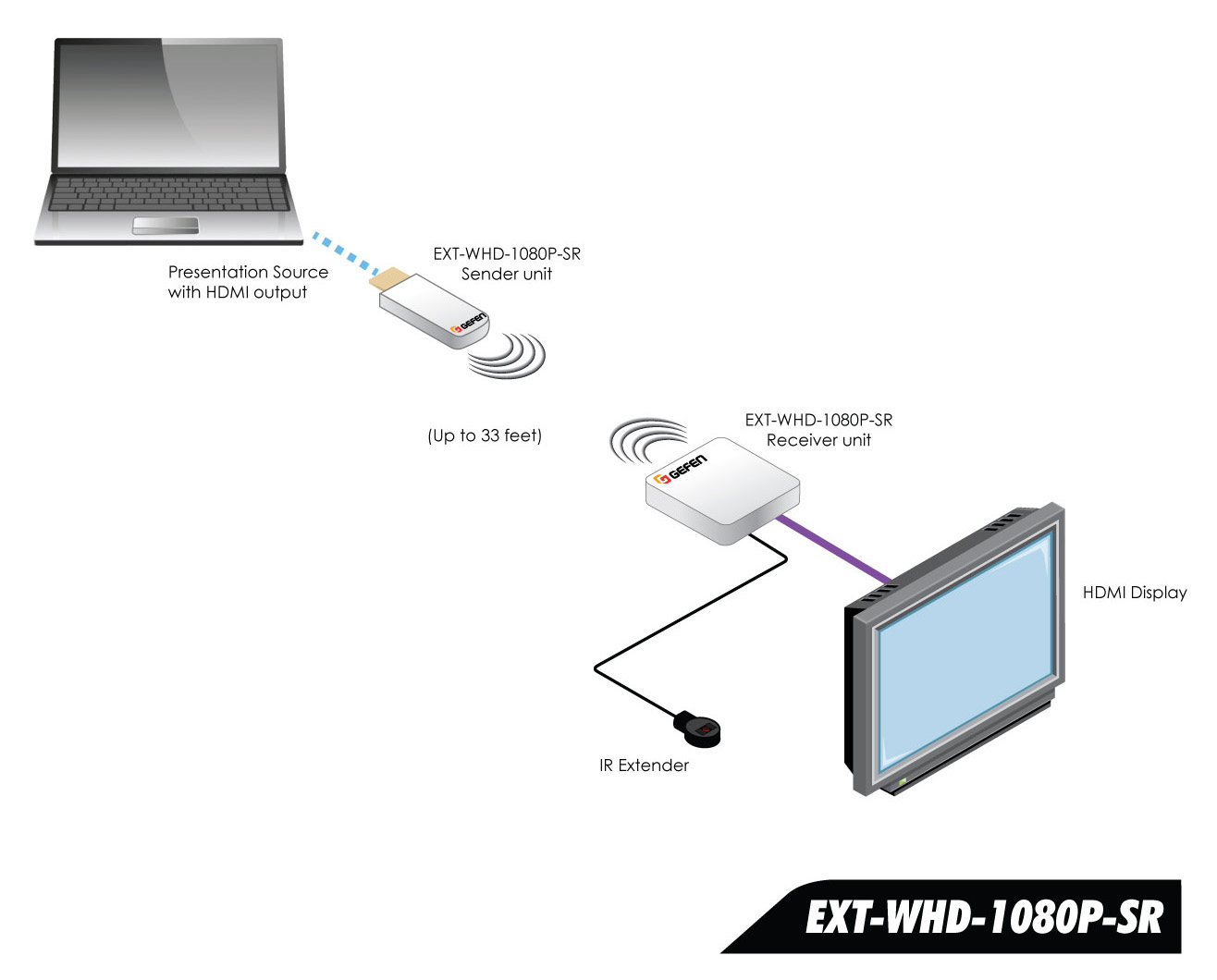

This wireless system is comprised of a Sender and a Receiver unit. The small "Stick" Sender connects directly to an HDMI port, and can be powered either from a powered USB port or from the included power supply. It is ideal for high-definition AV extension in a conference room or home theater installation that requires occasional connection of portable devices such as a presentation laptop computer or a video camera. The Receiver unit connects to a display with an HDMI input, using the supplied HDMI cable. It can be attached to a standard ¼"-20 camera tripod mount, wall mounted using two keyhole slots, or be placed on a shelf. Thanks to its small-size, low-profile, and the included wired IR Extender module, it can be hidden away behind the display or inside an equipment cabinet if needed.

Up to eight Sender units can be accessed by the Receiver, one at a time, using its handheld remote control. While the Wireless for HDMI 5 GHz SR Extender system can transmit through obstacles and does not require line-of-sight placement of its transceivers, it is optimized for shorter distances that are typical of in-room use. For longer range extension, use the Gefen EXT-WHD-1080P-LR.

Specifications

Number & location of channels:
EU model: 2: 5.19 GHz, 5.230 GHz

Maximum number of Senders to be linked:
8

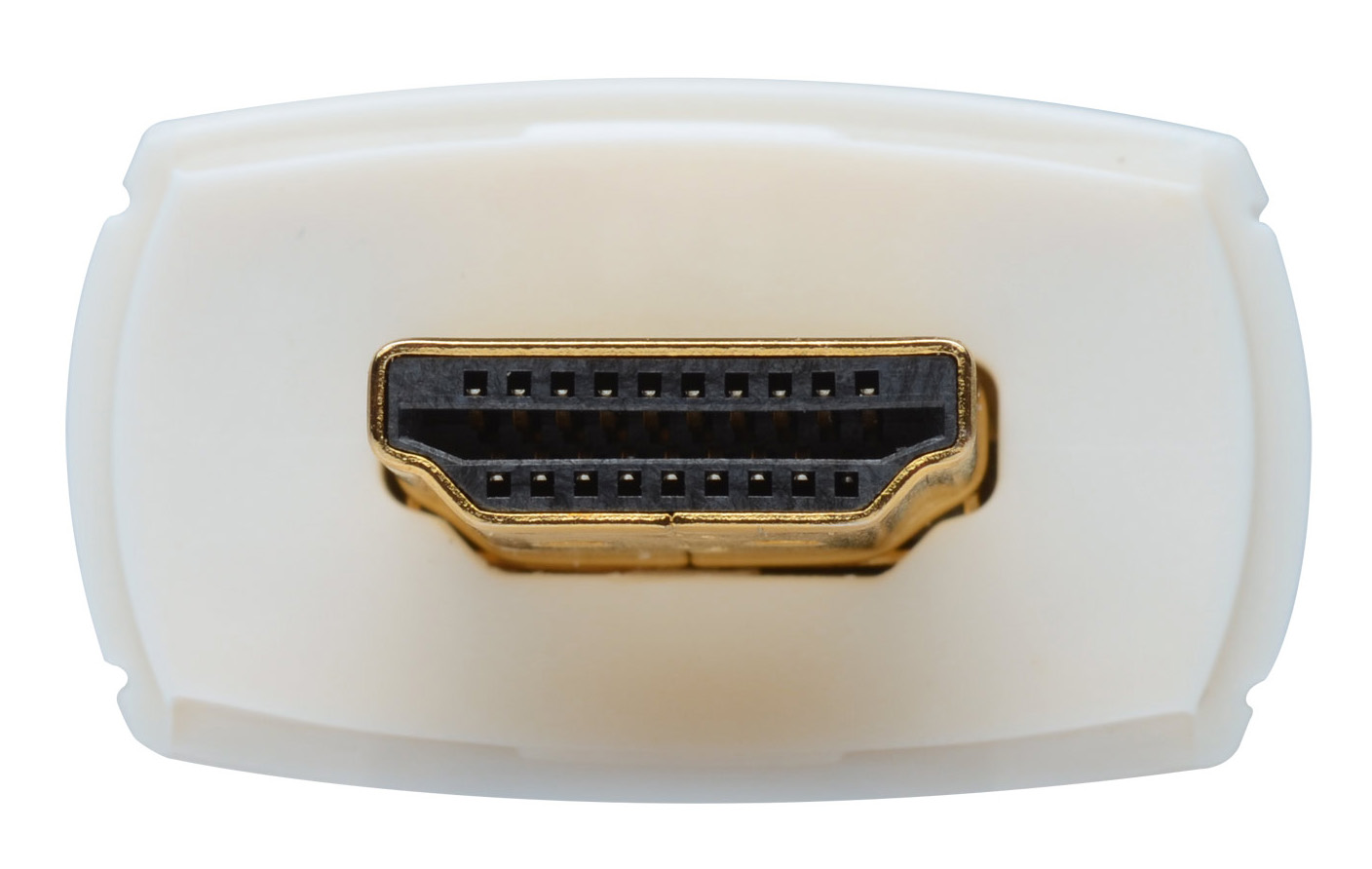

Video Input Connector (Sender):
(1) HDMI Type A, 19-pin, male

Video Output Connector (Receiver):
(1) HDMI Type A, 19-pin, female

Power Connector (Sender/Receiver):
(1) USB Mini-B

Power Supply (Sender):
(1) 5V/2A DC with USB Type-A connector

Power Supply (Receiver):
(1) 5V/2A DC with USB Type-A connector

Power Consumption (Sender/Receiver):
3W (max.) / 6W (max.)

Operating Temperature:
+32 to +104 °F (0 to +40 °C )

Operating Humidity:
+10 to +85%, Relative Humidity, non-condensing

Storage Temperature:
+14 to +140°F (-10 to +60 °C )

Storage Humidity:
+5 to +90%, Relative Humidity, non-condensing

Dimensions (W x H x D):
Sender Unit (including HDMI connector):
1.2" x 0.65" x 3.2" (30mm x 16mm x 80mm)
Receiver Unit (feet):
3.8" x 1.4" x 3.8" (95mm x 35mm x 95mm)

Net Unit Weight:
Sender Unit: 0.06 lbs (0.03 kg)
Receiver Unit: 0.3 lbs (0.15 kg)

Shipping Weight:
EXT-WHD-1080P-SR: 1.9 lbs (0.9 kg)
EXT-WHD-1080P-SR-TX: 0.6 lbs (0.3 kg)
EU model UPC888814212228

In The Box

Sender unit (EXT-WHD-1080P-SRS)	1
5 ft. USB to “Straight" Mini USB Cables	1
1.5 ft. USB to “Angled" Mini USB Cable	1
5V DC Power Supply, USB Type-A female output (EXT-PS52AIP-U-6-AX)	1
Quick-Start Guide	1
