Gefen EXT-HDMI1.3-142D
1:2 Splitter for HDMI 1.3 with Digital Audio
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss
- Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
- 3DTV Pass-Through
- EDID Management for rapid integration of sources and display devices.
- Locking HDMI Connectors
- Built-in TOSLINK audio output connector
- Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
- HDMI and HDCP compliant

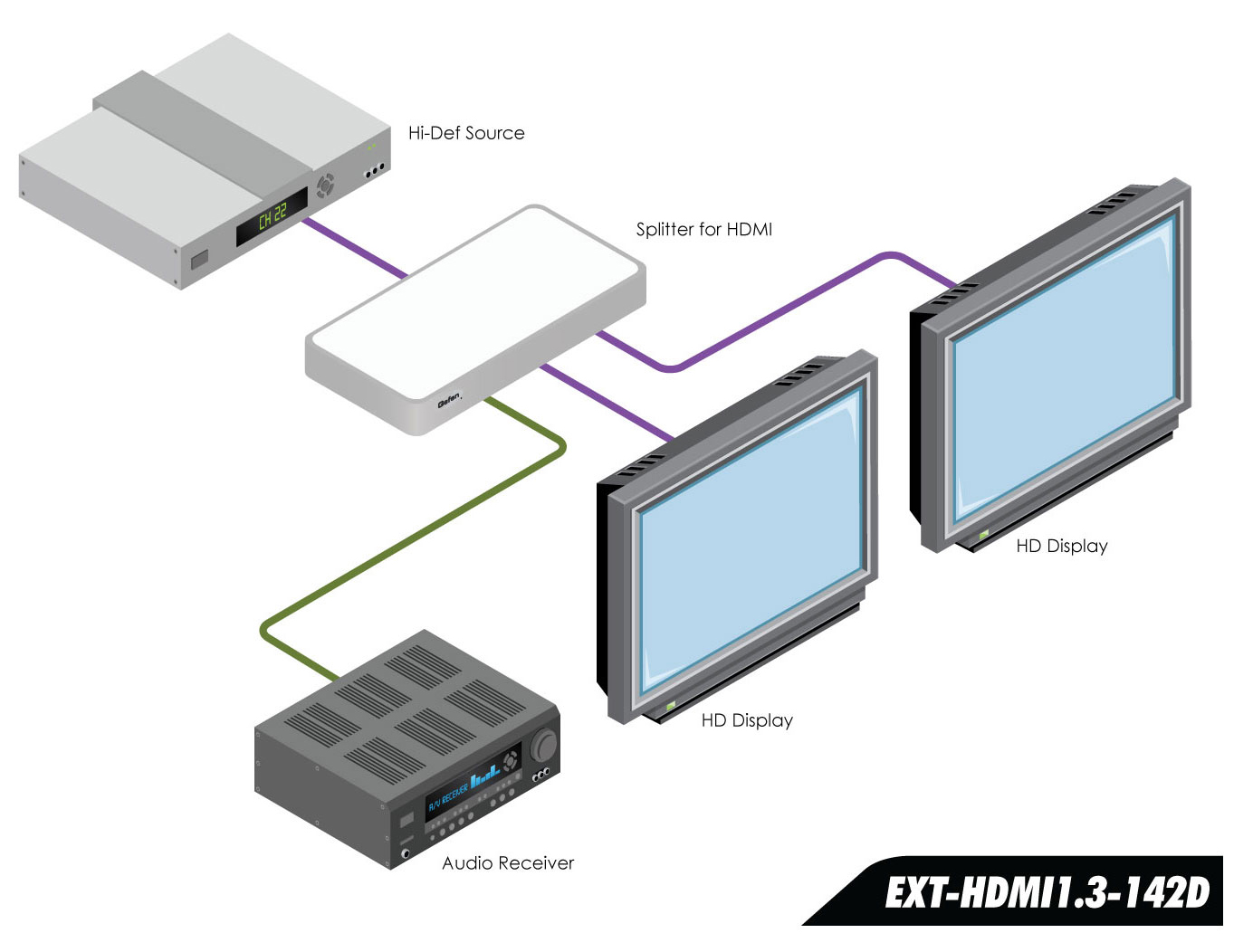

Split HDMI 1.3 to 2 HDTV Displays -- with additional optical digital audio output
The EXT-HDMI1.3-142D 1:2 Splitter for HDMI 1.3 with Digital Audio sends a Hi-Def A/V source to up to two HDTV displays at the same time without losing quality or resolution. This product works with any Hi-Def source supporting resolutions up to 1080p Full HD with Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility. Video Support
Full HD resolutions up to 1080P (1920x1080) are supported.
Audio Support
Support for 2 channel PCM, and up to 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through from the sources to the HDMI outputs.
Specifications
- Video Amplifier Bandwidth:
225 MHz
Input Video Signal:
1.2 Volts p-p
Input DDC Signal:
5 Volts p-p (TTL)
Single Link Range:
1080P/1920 x 1200
HDMI Input Connector:
Type A, 19-pin female
HDMI Output Connectors:
(2) Type A 19-pin female
Audio Output Connector:
TOSLINK®
Power Supply:
5V DC
Power Consumption:
13 Watts (max.)
Operating Temperature:
0 - 40 °C
Dimensions:
10.25"W x 1"H x 4.25"D
Shipping Weight:
4 lbs.
In The Box
| Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio (EXT-HDMI1.3-142D) | 1 |
| 6 ft. HDMI Cable (M-M) (CAB-HD-LCK-06MM) | 1 |
| 5V DC Power Supply (EXT-PS526AIP) | 1 |
| Quick-Start Guide (QSG-HDMI1.3-142D) | 1 |
