Gefen EXT-HDRS2IR-4K2K-1FO

Extend HDMI with Ultra HD 4K x 2K support, RS-232, and Bi-Directional IR over one fiber optic cable up to 3300 feet (1000 meters)

The Gefen EXT-HDRS2IR-4K2K-1FO 4K Ultra HD Extender for HDMI over One Fiber is a complete solution, allowing HDMI, RS-232 and Bi-Directional IR to be extended up to 3300 feet (1000 meters) at 4K resolution and up to 6600 feet (2000 meters) at 1080p60 Full HD. This HDCP-compliant extender is the ideal for installations where the HDMI source and display are located apart from each other in an interference-prone operating environment. A single strand of SC-terminated multi-mode fiber optic cable is used for extension, providing excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The Automatic Virtual EDID feature allows automatic copying of the Extended Display Identification Data (EDID) to the sender unit for continuous availability to the source. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes. Compared to similar copper-based solutions, optical signal transmission provides inherent galvanic isolation and excellent immunity to electromagnetic interference. These Sender and Receiver modules also feature metal enclosures, providing further protection against radiated noise. Locking HDMI and power connectors ensure trouble-free installatio(more...)

Specifications

Supported Formats


Video

• 4K x 2K (Ultra HD)
• 1920 x 1200 (WUXGA)
• 1080p Full HD


Audio

• 7.1 Linear PCM
• Dolby® Digital
• DTS-HD Master Audio™



Connectors, Indicators, and Controls


Video Input (Sender)
1 x HDMI Type A, 19-pin, female

Video Output (Receiver)
1 x HDMI Type A, 19-pin, female

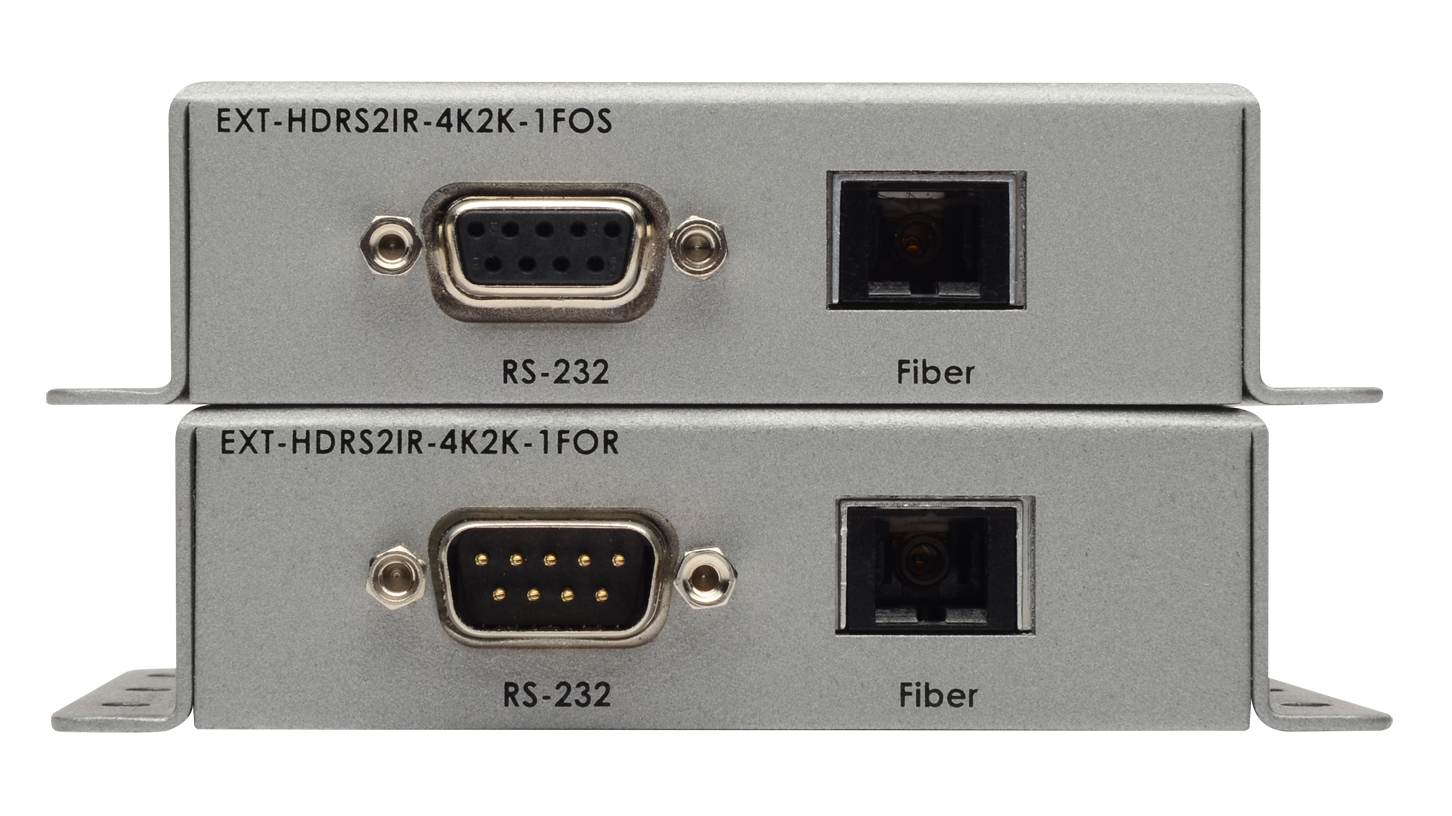

Link (Sender / Receiver)
1 x SC-type, female

RS-232 (Sender)
1 x DB-9, female

RS-232 (Receiver)
1 x DB-9, male

IR Out (Sender / Receiver)
1 x 3.5mm mini-mono, female

IR In / Ext (Sender / Receiver)
1 x 3.5mm mini-stereo, female

Power (Sender / Receiver)
1 x Locking-type

Power Indicator (Sender / Receiver)
1 x LED, blue / red

Link Indicator (Sender / Receiver)
1 x LED, green / red

DIP switches (Sender)
2 x banks, 4 each

DIP switches (Receiver)
1 x bank, 4 each



Operational


Maximum Pixel Clock
300 MHz

Power Input (ea.)
5V DC

Power Consumption (ea.)
2.5W (max.)

IR Carrier Frequency Range
30 kHz to 60 kHz

Operating Temperature
+32 to +104 °F (0 to +40 °C)



Physical


Dimensions (W x H x D)(Sender / Receiver)
4.3” x 1.0” x 3.4” (110mm x 26mm x 86mm)

Unit Weight (ea.)
0.4 lb (0.2 kg)

In The Box

4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR (Sender unit)	1
4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR (Receiver unit)	1
6 ft. HDMI cable (M-M)	1
DB-9 cable (M-F)	1
IR extender	1
IR emitter	1
5V DC power supplies	2
Quick-Start Guide	1
