S-CONNECT - Gefen EXT-MFP

Independent and configurable audio and video routing
Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)
HDCP compliant
HDMI, DisplayPort, DVI, VGA, and Composite Video inputs
DisplayPort input is compatible with Mac and PC computers
TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs
Each audio source can be independently assigned to any video source
Audio sources can be temporarily switched away from their assigned video sources
On-screen display (OSD) menu and web server interface allow easy set-up & control
IP control via Telnet, UDP, and web server interface
RS-232 Serial interface for use with an automation control system
Independent IR control of up to four units in proximity, using distinct command sets
Password-protected user and administrative access
Advanced EDID Management for rapid integration of sources and dispays
Assignable input naming
System Configuration Upload/Download function
Plug-and-Play installation with little to no set-up
Locking power supply connector
Rack-mountable using EXT-RACK-1U-GRY (available separately)
Surface-mountable using the included L-brackets

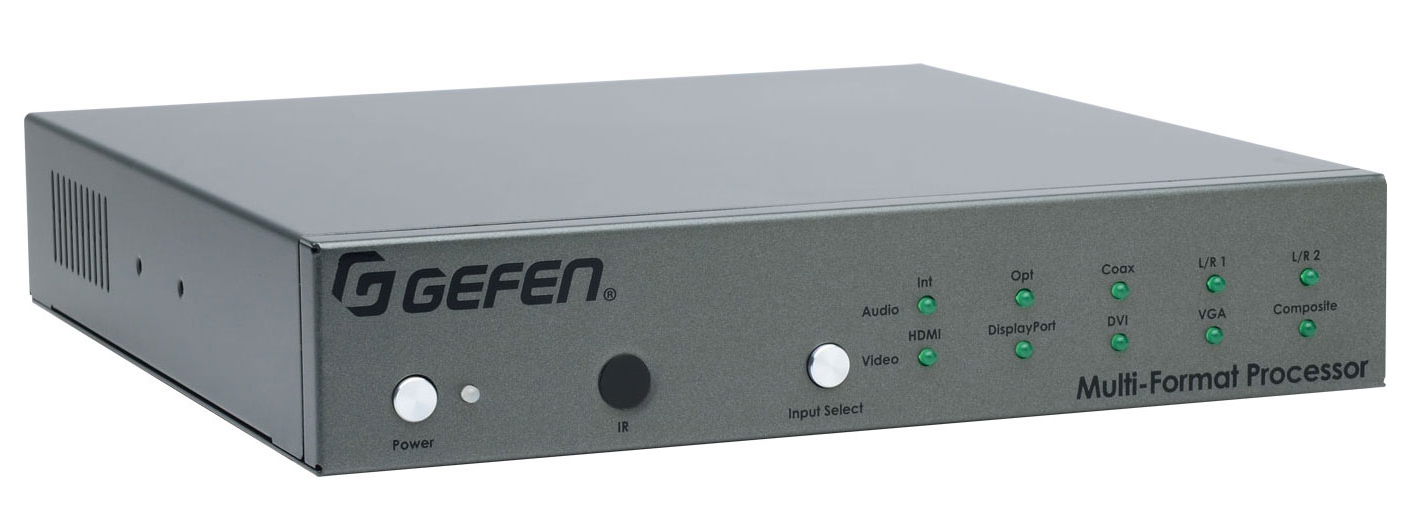

Audio/Video Multi-Format Processor

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its unique features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf. The EXT-MFP features full compatibility with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. It is a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.

Specifications

Maximum Pixel Clock:

Maximum TMDS Clock:

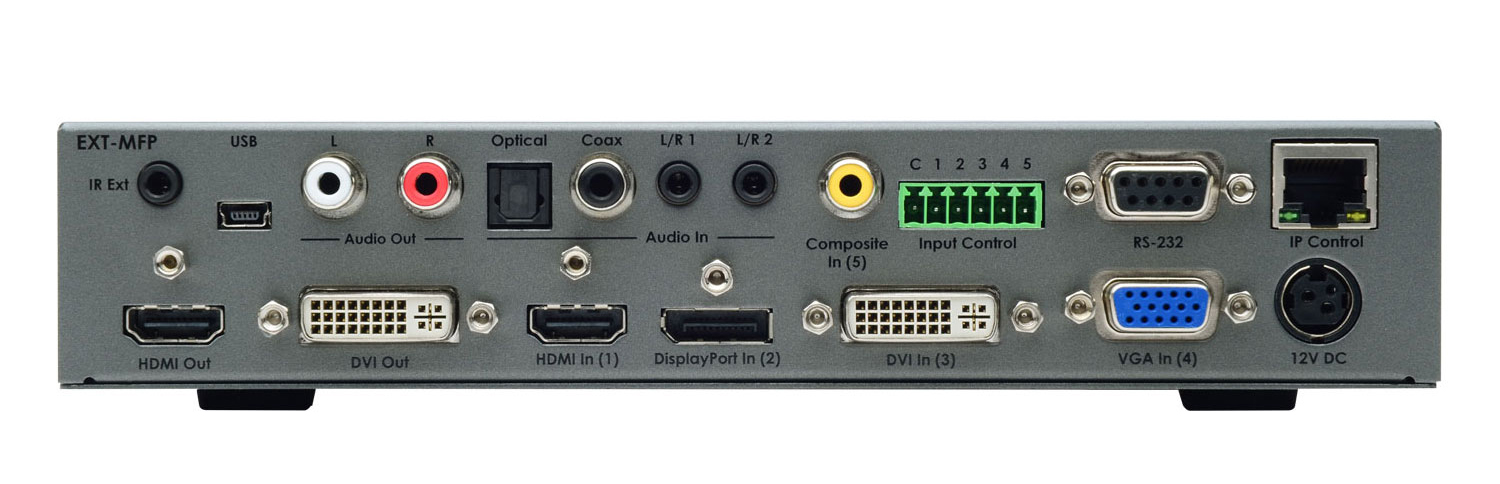

Video Input Connectors:

Audio Input Connectors:

Video Output Connectors:

Audio Output Connectors:

USB Connector:

IR Sensor:

IR Extender Port:

IR Extender Type:

Input Selection Contact Closure Connector:

IP Port:

RS-232 Port:

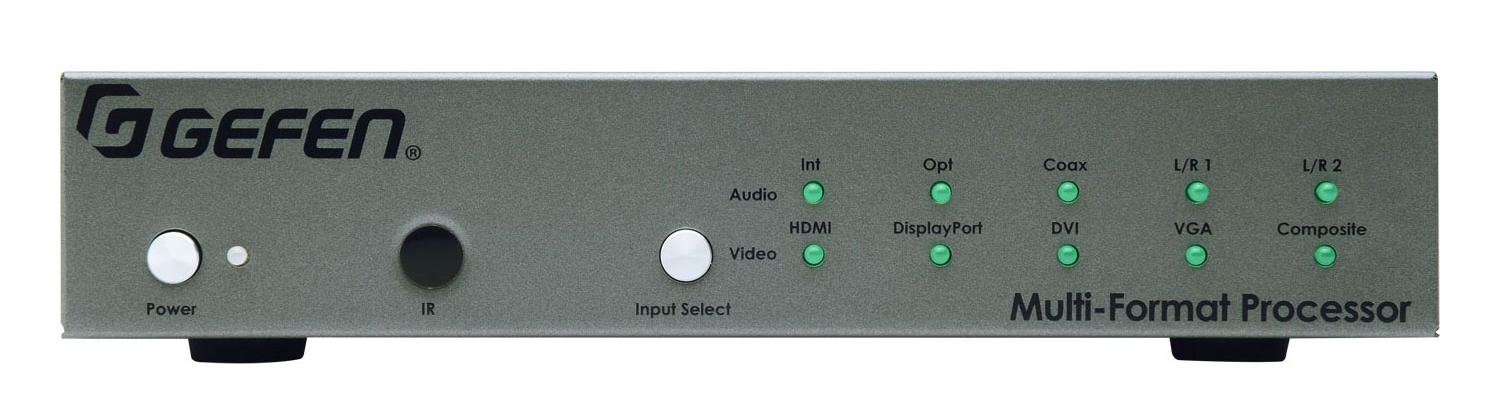

Input Select Button:

Power/Stand-by Button:

Power/Standby Indicator:

Video Input Indicators:

Audio Input Indictaors:

Power Supply Connector:

Power Supply:

Power Consumption:

Operating Temperature:

Operating Humidity:

Storage Temperature:

Storage Humidity:

MTBF:

Dimensions (excluding buttons & connectors, W x H x D):

Net Unit Weight:

In The Box

Multi-Format Processor (EXT-MFP)	1
6-pin Phoenix Plug (CON-PH-6P-M-GRN-AB)	1
L- shaped Brackets for surface mounting	2
Mounting Screws for L-shaped brackets	4
Mounting Screws for EXT-RACK-1U-GRY	2
Self-Adhesive Rubber Feet	4
IR Remote Control (RMT-MFP)	1
12V DC Power Supply (EXT-PS121.5AIP-3P-6)	1
Quick-Start Guide (QSG-EXT-MFP)	1

Gefen EXT-MFP Datasheet (383.0 kB)
