Gefen EXT-3G-HD-C
3GSDI to HDMI Converter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Converts SDI to HDMI
- Input resolutions up to 1080p60
- Output resolutions up to 1080p Full HD
- HDMI (YCbCr 4:4:4) or DVI (RGB 4:4:4) output modes
- Supports 3G-SDI Levels A and B, Single-Link HD-SDI, and SD-SDI
- Supports up to 10 bit color on input and output
- Up to LPCM 7.1 audio support
- Field configurable via DIP switch settings
- Mini USB port for use with Gefen Syner-G™ for in-field firmware updates
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- 1/4-20 industry-standard camera gear attachment thread on bottom
- Surface-mountable using the included detachable bracket
Converts 3G-SDI, Single-Link HD-SDI, and SD-SDI AV to HDMI
The Gefen EXT-3G-HD-C 3G-SDI to HDMI converter takes audio and video signal from SDI and converts it to HDMI, at resolutions up to 1080p Full HD. This converters supports 3G-SDI and single link HD-SDI sources with up to 8 channels of LPCM audio. The Gefen EXT-3G-HD-C's compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-3G-HD-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
Video Support
This converter supports input resolutions up to 1080P (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr) and output resolutions up to 1080p Full HD (1920 x 1080 at 60 Hz 10- Bit 4:4:4 (RGB or YCbCr).
Audio Support
The EXT-3GHD-C supports stereo and multuchannel audio up to LPCM 7.1
Syner-G Support
This product is fully compatible with the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products.
Specifications
- Maximum Pixel Clock:
150 MHz
Maximum TMDS Clock:
225 MHz

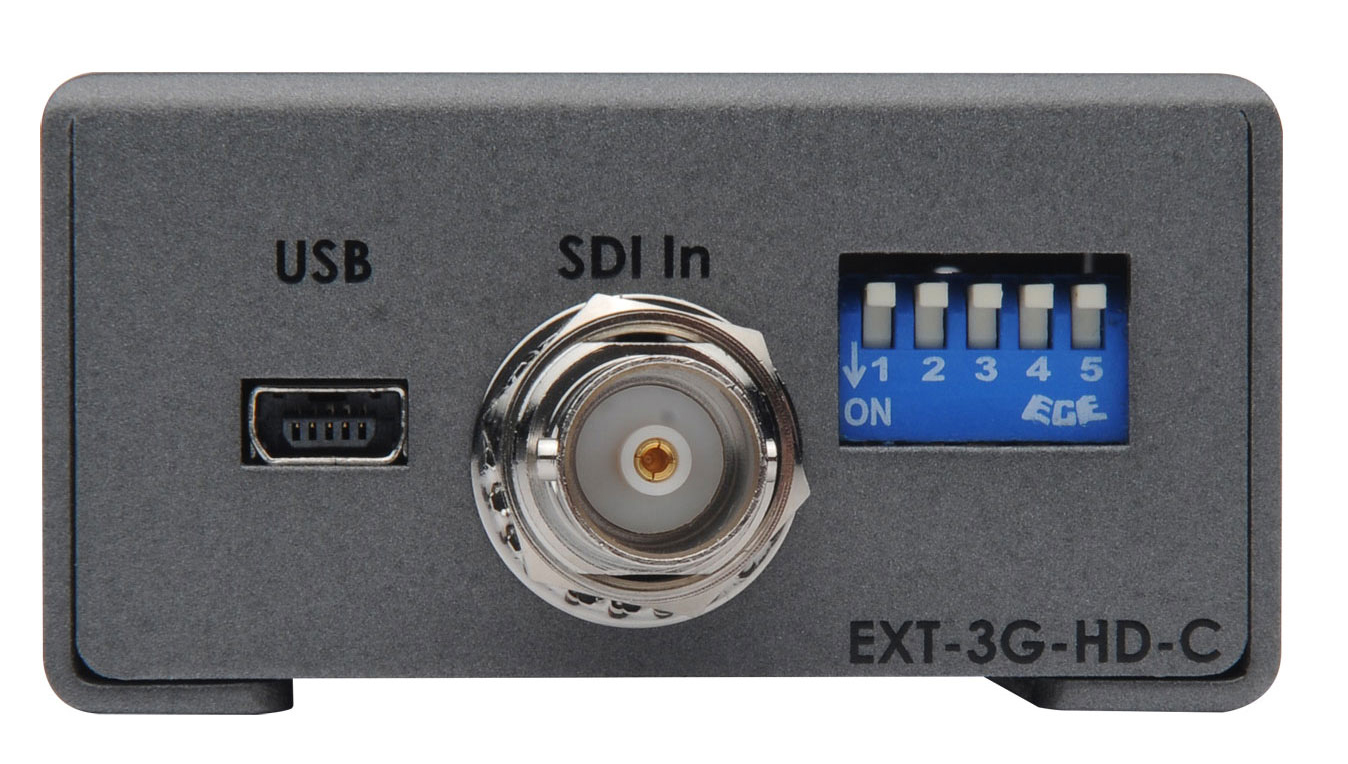

Video Input Connector:
(1) SDI BNC-type, female
Video Output Connector:
(1) HDMI Type A 19-pin, female, locking
USB Connector:
(1) Mini-B
Configuration Switches:
(5) DIP-type
HDMI Indicator:
(1) LED, green
Power Indicator:
(1) LED, blue
Power Supply Connector:
(1) 3-pin, locking
Power Supply:
12V DC nominal (6V to 24V DC operating range)
Power Consumption:
2W maximum
Operating Temperature:
+32 to +122 °F (0 to +50 °C)
Operating Humidity:
5% to 90% RH, non-condensing
Storage Temperature:
-4 to +185 °F (-20 to +85 °C)
Storage Humidity:
0% to 95% RH, non-condensing
MTBF:
50000 hours
Net Unit Weight:
0.3 lbs. (0.15kg)
In The Box
| 3GSDI to HDMI Converter (EXT-3G-HD-C) | 1 |
| Surface Mounting Bracket | 1 |
| 12V DC Power Supply (EXT-PS121.5AIP-3P-6) | 1 |
| Quick-Start Guide (QSG-EXT-3G-HD-C) | 1 |
