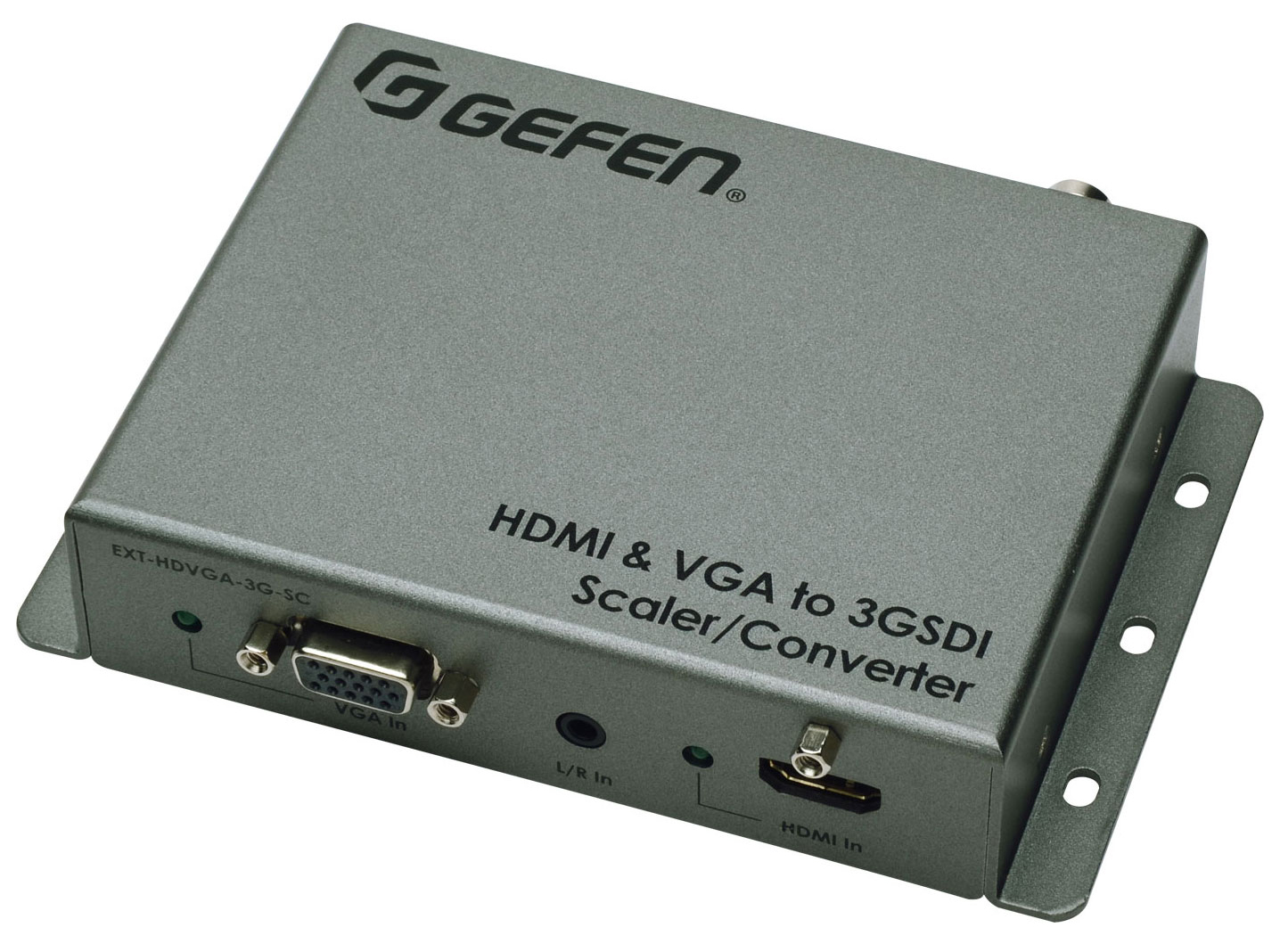

Gefen EXT-HDVGA-3G-SC
HD & VGA to 3GSDI Scaler / Converter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Converts and scales HDMI and VGA and L/R analog audio to SDI
- Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60
- Output resolutions up to 1080p60
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
- Test Pattern Generator for quick system configuration
- Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)
- Up to LPCM 7.1 audio support (HDMI input only)
- Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
- USB port for use with Gefen Syner-G™
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- Surface mountable

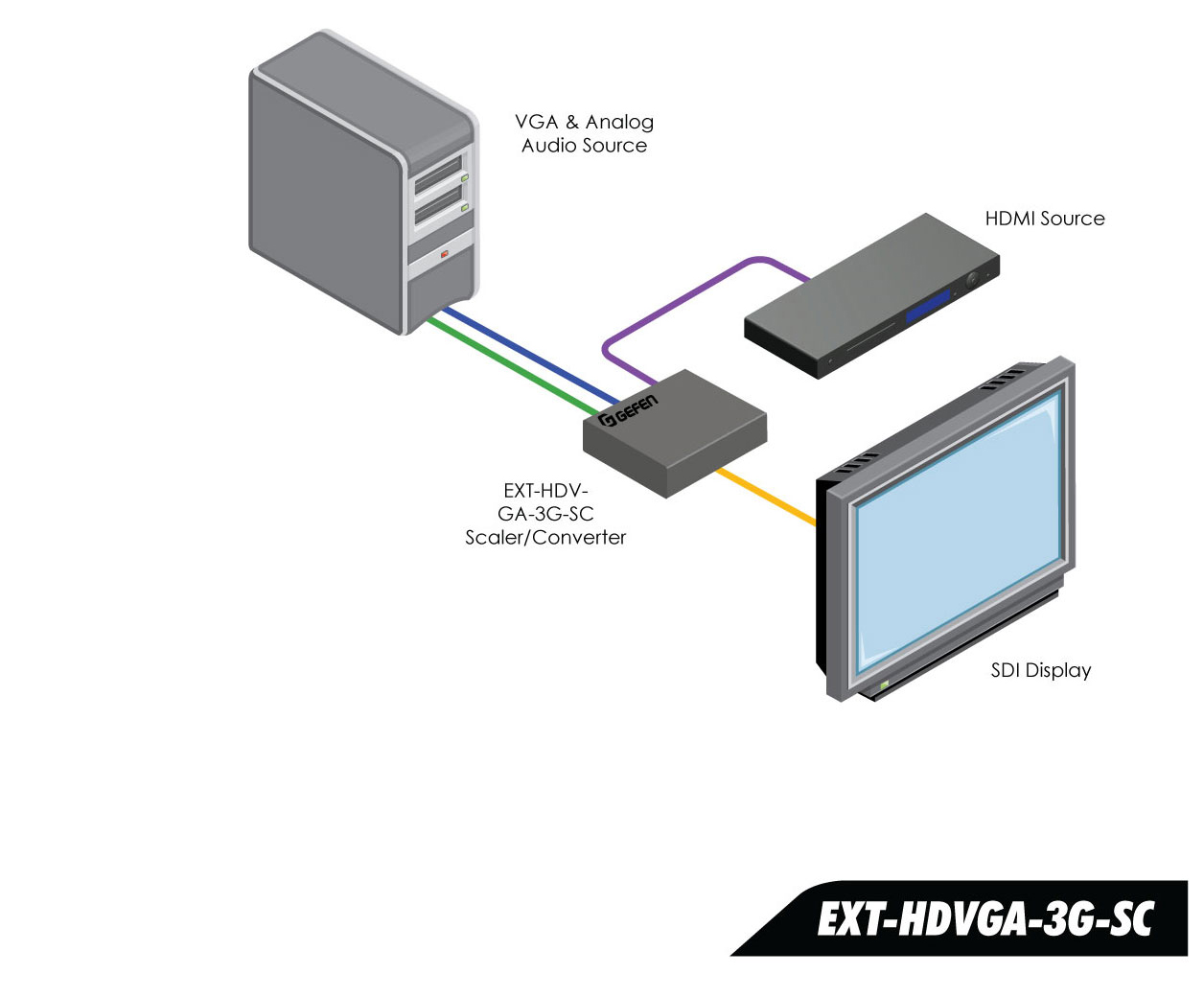

Switch video and audio from an HDMI and a VGA source, scale the picture, and output it to an SDI device
The Gefen EXT-HDVGA-3G-SC scales and converts video from an HDMI or a VGA source to SDI formats, including 3G-SDI and single link HD-SDI. It can also embed HDMI audio or analog L/R audio into the SDI stream. Video can be scaled up to 1080p Full HD. An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/ customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.
Specifications
- Maximum Pixel Clock - HDMI and VGA Inputs:
165 MHz
Maximum Pixel Clock - SDI Output:
150 MHz
Maximum TMDS Clock:
225 MHz
Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) VGA HD-15, female
Audio Input Connector:
(1) 3.5mm mini-stereo jack
Video Output Connector:
(1) SDI, BNC-type, female
USB Connector:
(1) Mini-B
Input Select/Menu/Navigation Switches:
(3) tact-type
HDMI Indicator:
(1) LED, green
VGA Indicator:
(1) LED, green
Power Indicator:
(1) LED, blue
Power Supply Connector:
(1) 3-pin, locking
Power Supply:
12V DC nominal (6V to 24V DC operating range)
Power Consumption:
5W maximum
Operating Temperature:
+32 to +122 °F (0 to +50 °C)
Operating Humidity:
5% to 90% RH, non-condensing
Storage Temperature:
-4 to +185 °F (-20 to +85 °C)
Storage Humidity:
0% to 95% RH, non-condensing
MTBF:
50000 hours
Dimensions (excluding connectors, W x H x D):
5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
Net Unit Weight:
0.5 lbs. (0.23kg)
In The Box
| HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC) | 1 |
| 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM) | 1 |
| 6 ft. VGA Cable (M-M) (CAB-VGA-06MM-O) | 1 |
| 6 ft. 3.5mm Mini Stereo Audio Cable (M-M) (CAB-MP-ST-06MM-BC) | 1 |
| 12V DC Power Supply (EXT-PS121.5AIP-3P-6) | 1 |
| Quick-Start Guide (QSG-EXT-HDVGA-3G-SC) | 1 |
