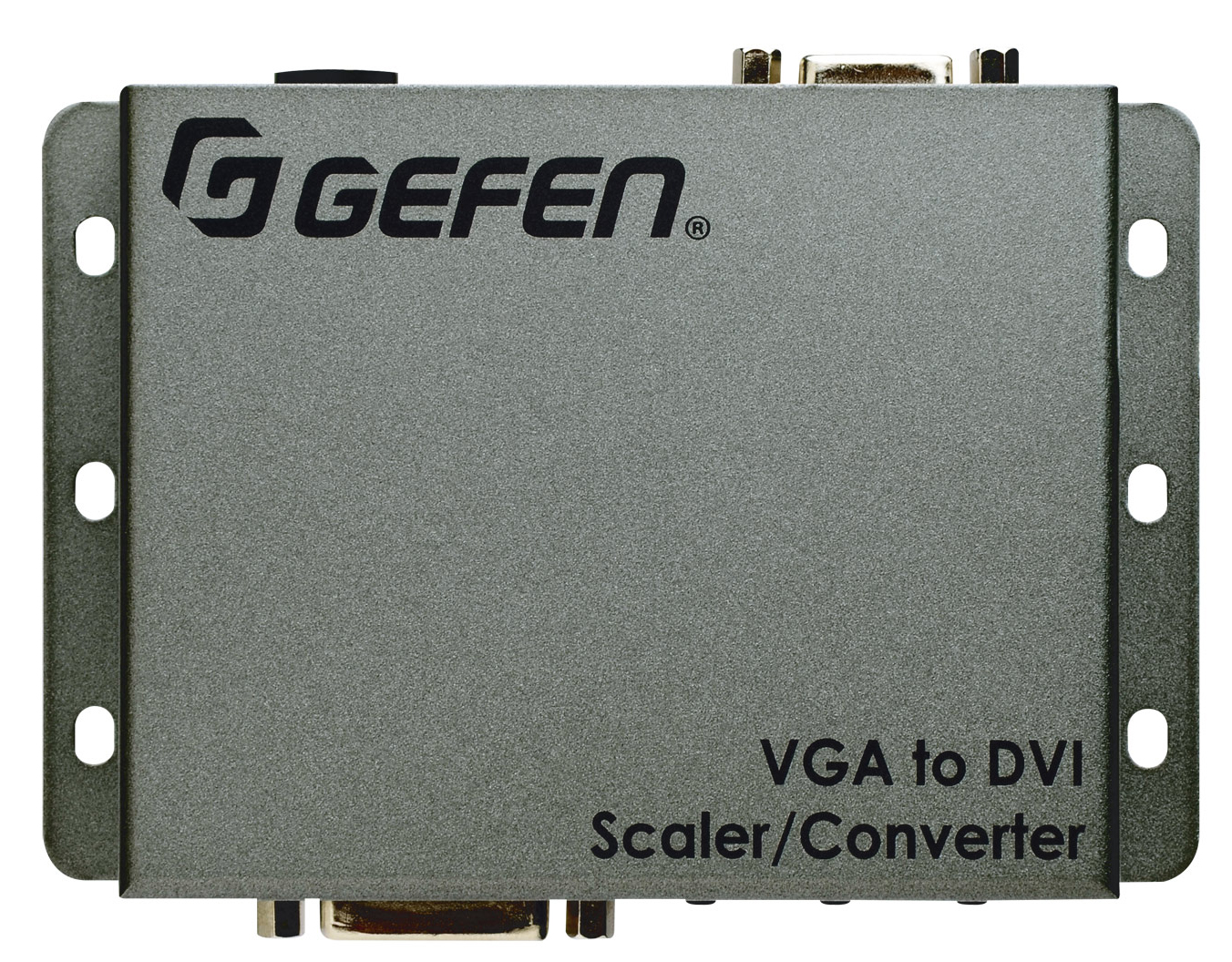

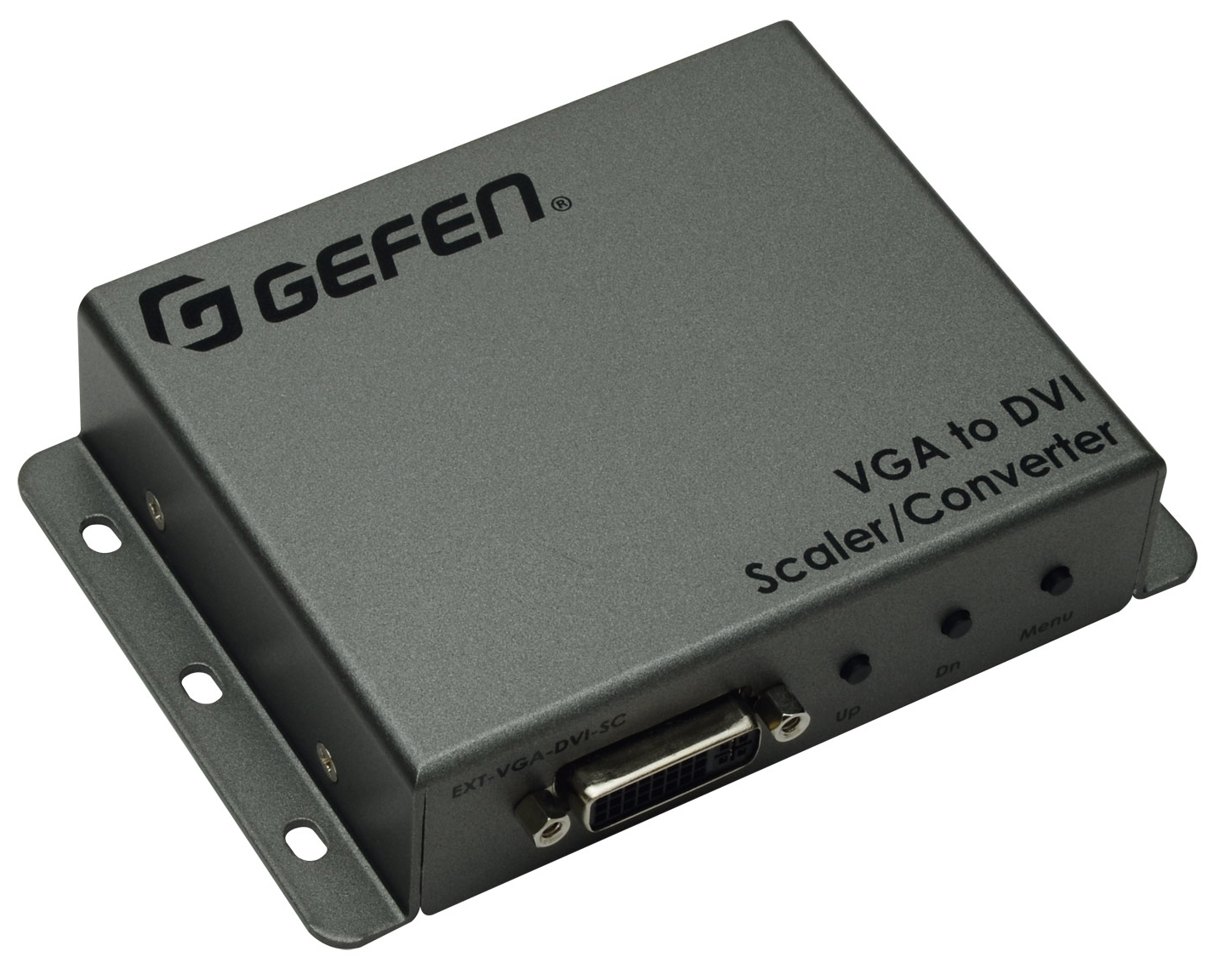

Gefen EXT-VGA-DVI-SC

Scale and convert video from a VGA source for use with a DVI Display

The Gefen EXT-VGA-DVI-SC scales and converts video from a VGA source to a DVI output. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.

Specifications

Maximum Pixel Clock:
165 MHz

Maximum TMDS Clock:
165 MHz

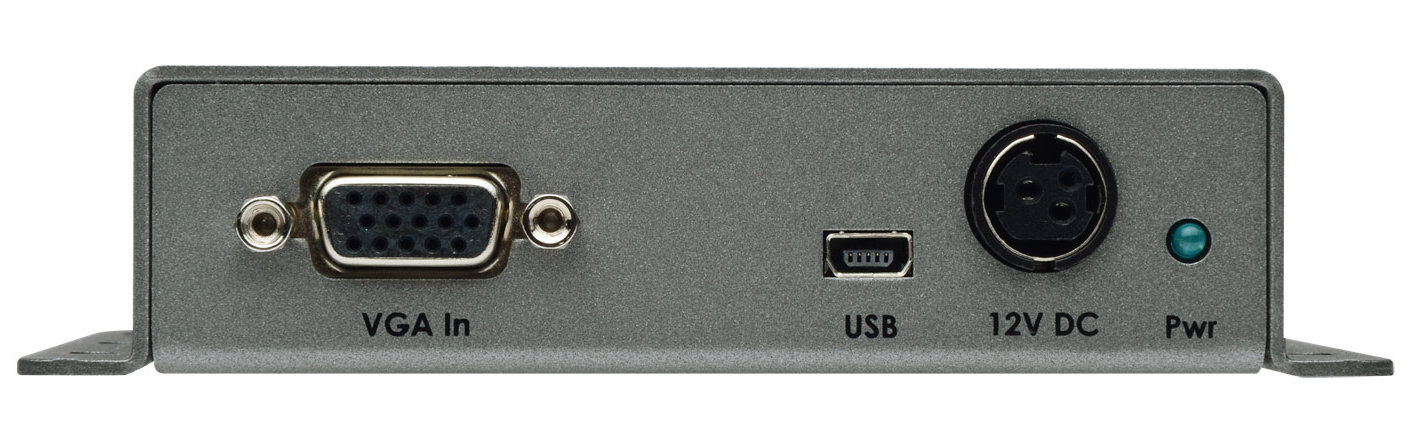

Video Input Connector:
(1) VGA HD-15, female

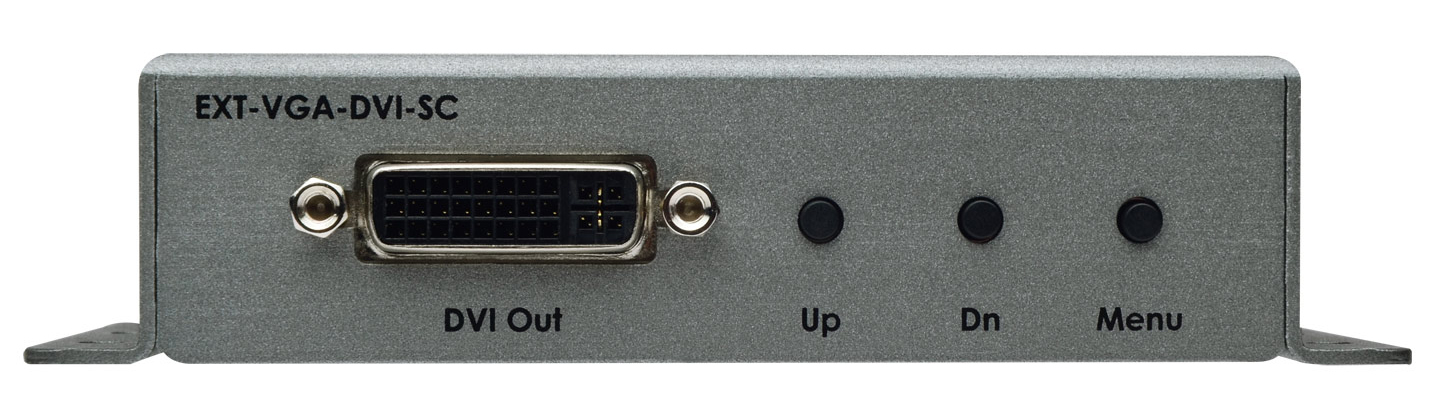

Video Output Connectors: (digital only)
(1) DVI-I, 29-pin, female

USB Connector:
(1) Mini-B

Menu/Navigation Switches:
(3) tact-type


Power Indicator:
(1) LED, blue

Power Supply Connector:
(1) 3-pin, locking

Power Supply:
12V DC nominal (6V to 24V DC operating range)

Power Consumption):
2W maximum

Operating Temperature:
+32 to +122 °F (0 to +50 °C)

Operating Humidity:
5% to 90% RH, non-c
ondensing

Storage Temperature:
-4 to +185 °F (-20 to +85 °C)

Storage Humidity:
0% to 95% RH, non-condensing

MTBF:
50000 hours

Dimensions (excluding connectors, W x H x D):
4.9" x 1" x 3.2" (123mm x 26mm x 82mm)

Unit Weight:
0.4 lbs. (0.2kg)

In The Box

VGA to DVI Scaler / Converter (EXT-VGA-DVI-SC)	1
6 ft. VGA Cable (CAB-VGA-6MM-O)	1
12V DC Power Supply (EXT-PS121.5AIP-3P-6)	1
Quick-Start Guide (QSG-EXT-VGA-DVI-SC)	1
