Gefen EXT-DVI-FMP

DVI Extension for Computers -- Elegant and Reliable

The Gefen FMP DVI Fiber Optic Extender allows DVI signal to be extended up to 2000 feet (600 meters) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Four strands of LC-terminated fiber optic cable provide maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.


Video Support

Supports resolutions up to 1920 x 1200

Specifications

Maximum Pixel Clock:
165MHz

Input Video Signal:
1.2V p-p

Input DDC Signal:
5V p-p (TTL)

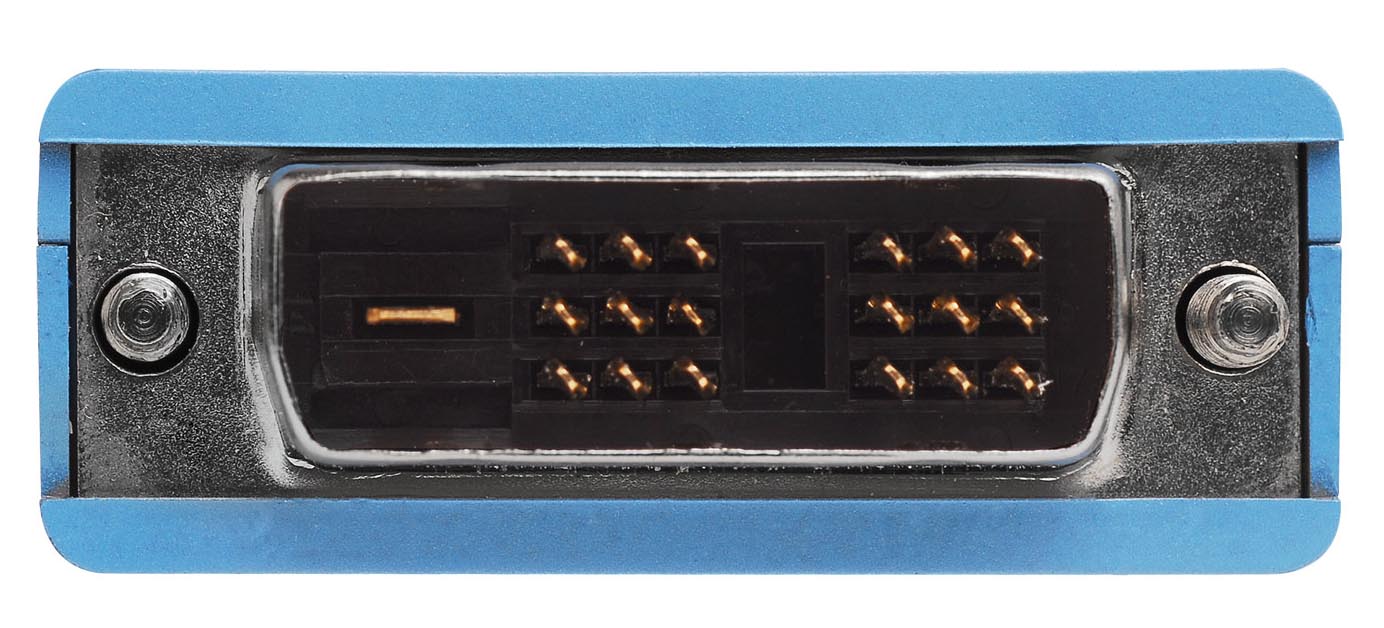

Video Input Connector (Sender):
(1) DVI-D 19-pin, female

Video Output Connector (Receiver):
(1) DVI-D 19-pin, female

Link Connectors (Sender / Receiver):
(4) Type LC fiber connectors (50i or 62.5i)

Fiber Cable:
CAB-LC-XXX (62.5i multi-mode)

Power Supply (Receiver):
5V DC (Second power supply included for use if source does not provide 5V power for Sender over DVI connector)

Power Consumption:
2.5W (max.)

Dimensions (Sender / Receiver):
2.2" D x 1.5" W x 0.5" H

Shipping Weight:
2 lbs.

In The Box

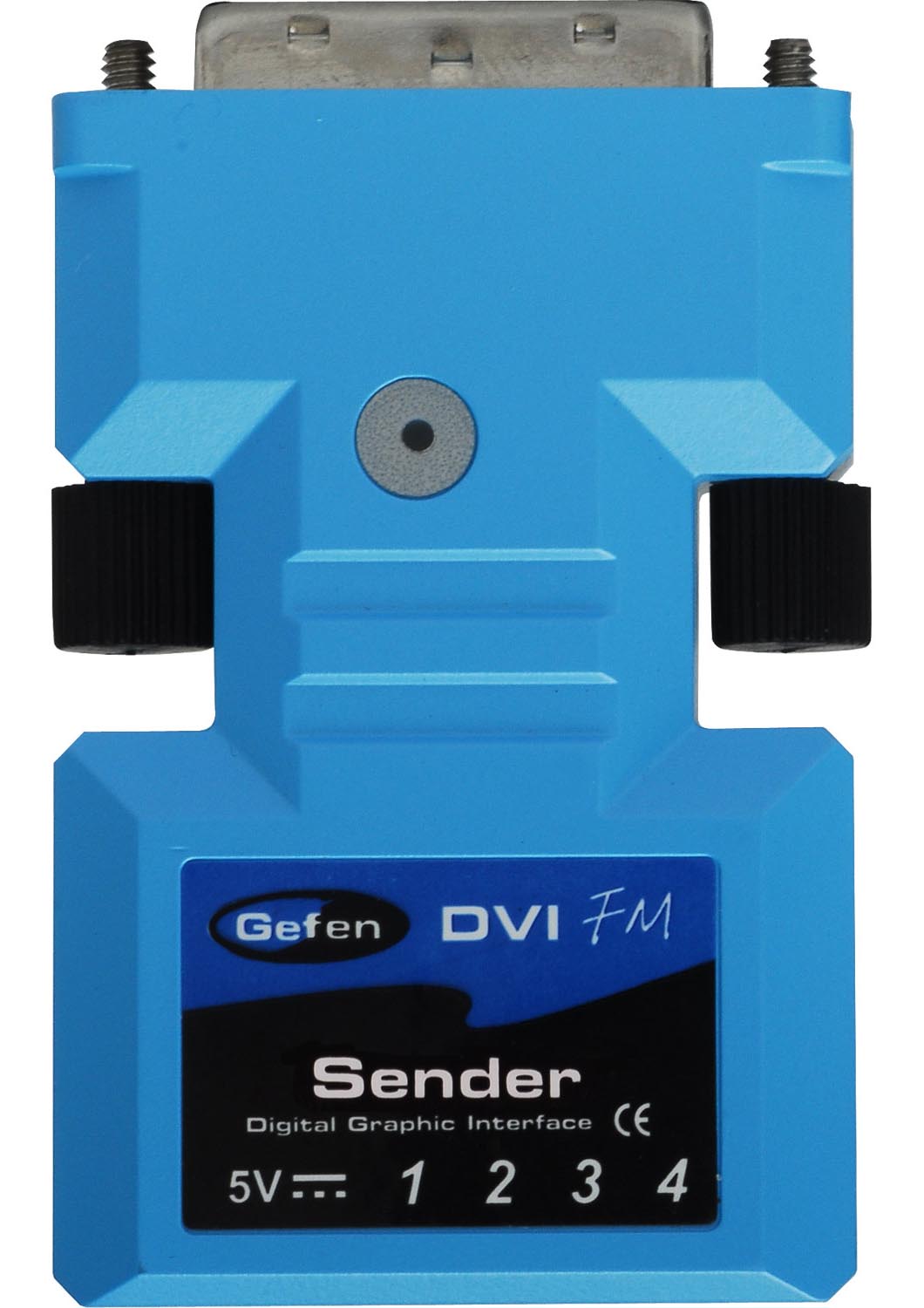

DVI FM Sender unit (EXT-DVI-FMPS)	1

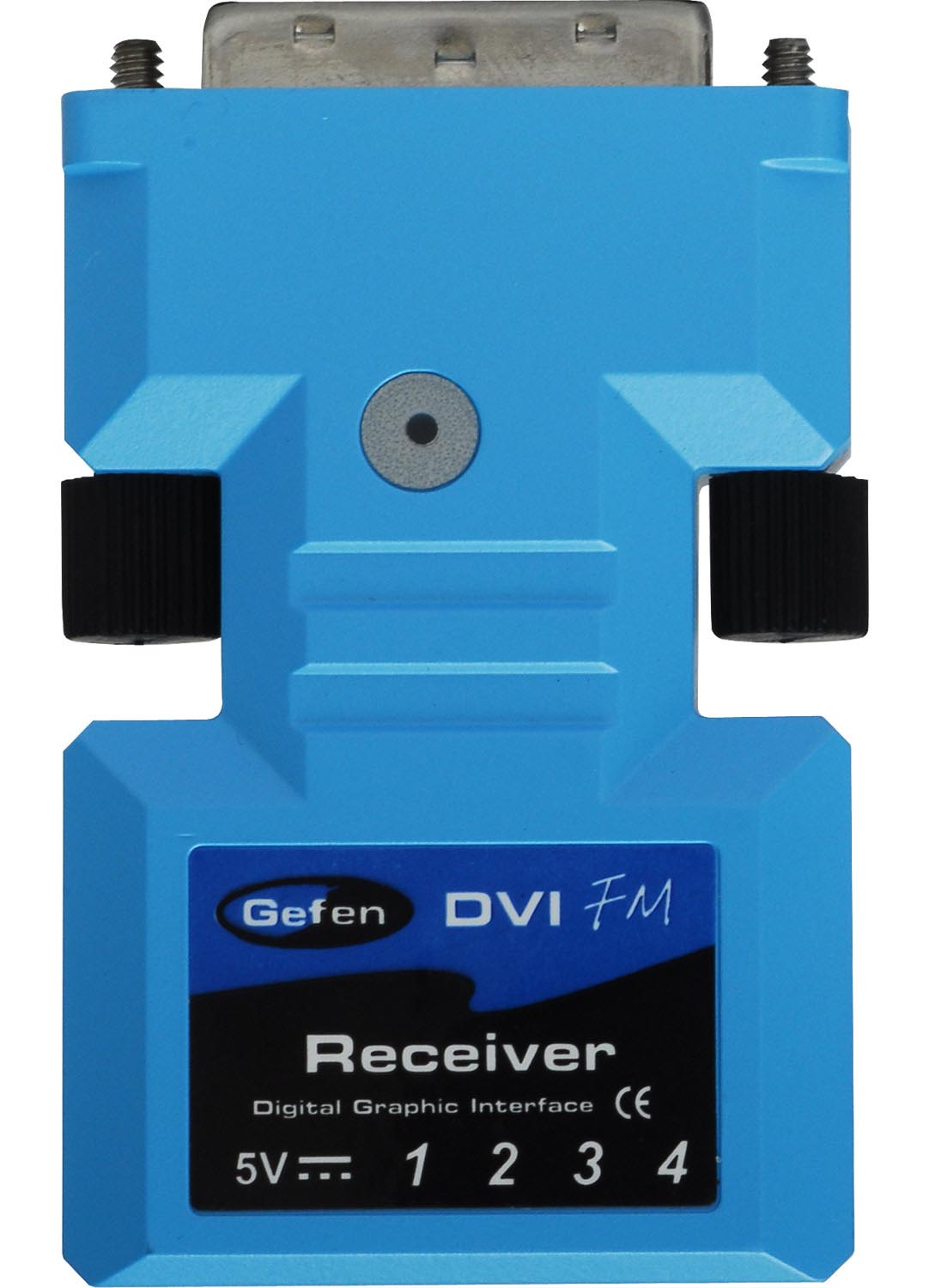

DVI FM Receiver unit (EXT-DVI-FMPR)	1
5V Power Supplies (EXT-PS51AIP-1.3)	2
Quick-Start Guide ( QSG-DVI-FMP)	1
