Gefen EXT-DVI-CP-FM10

Pigtail module DVI extension using a single-strand multimode fiber optic cable with HDCP support

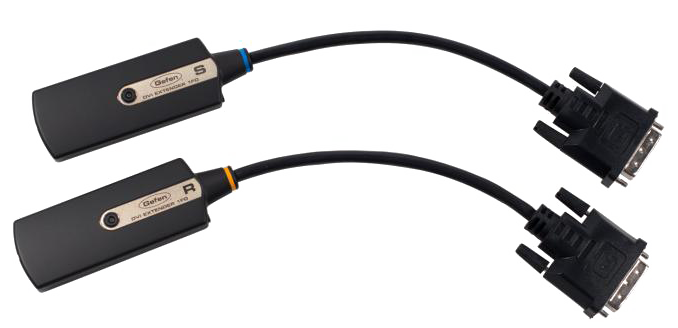

The Gefen DVI fiber optic pigtail module extender with HDCP support extends DVI up to 3300 feet (1000 meters) using single-strand 50/125 µm multimode (OM2/OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DVI.


Video Support

Supports resolutions up to 1920 x 1200 (WUXGA)

Specifications

Maximum Pixel Clock:
165 MHz

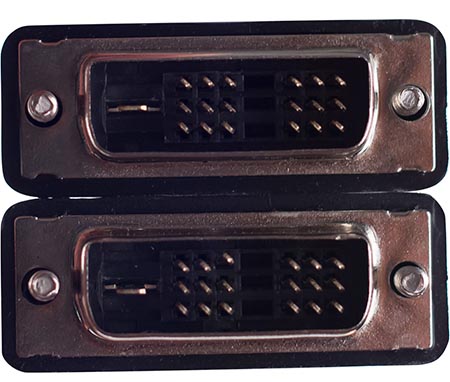

Video Input Connector (Sender):
(1) DVI-D, 19-pin, male

Video Output Connector (Receiver):
(1) DVI-D, 19-pin, male

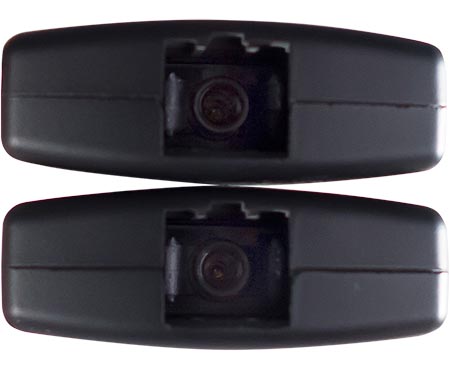

Link Connector (Sender/Receiver):
(1) Type SC fiber (50 /125°m)

Power Supply (Sender):
5V DC (not needed for most applications)

Power Supply (Receiver):
5V DC

Power Consumption (Receiver):
1.5W (max.)

Operating Temperature:
+32 to 122 °F (0 to +50 °C)

Storage Temperature:
-4 to 158 °F (-20 to +70 °C)

Relative Humidity:
10% to 80%

Dimensions (W x H x D):
1.54" x 0.63" x 11.49" (39.11mm x 16mm x 291.84mm)

Shipping Weight:
1 lb. (0.45 kg)

In The Box

DVI Fiber Optic Modular Extender with HDCP (Sender Pigtail) (EXT-DVI-CP-FM10S)	1
DVI Fiber Optic Modular Extender with HDCP (Receiver Pigtail) (EXT-DVI-CP-FM10R)	1
5V DC Power Supply (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)	1
Quick-Start Guide (QSG-DVI-CP-FM10)	1
