Gefen GEF-UHD-89-HBT2
4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT, & POH
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Routes eight 4K sources to nine displays
- Supports resolutions up to:
- 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz)
- 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space)
- 1080p Full HD
- 1920x1200 WUXGA
- HDCP 2.2 and 1.4 compliant
- Extends:
- HDMI
- Ethernet
- RS-232
- 2-way IR up to 100 meters (330 feet)
- Supports 12-bit Deep Color (up to 1080p Full HD)
- 3D pass-through
- Lip Sync pass-through
- IR from viewing locations to sources can be routed along with or independent from video path
- Push button front panel controls
- Advanced EDID Management for rapid integration of sources and displays
- Pass-through of LPCM 7.1 and HBR (High Bit Rate) audio formats such as:
- Dolby Atmos®
- Dolby® TrueHD
- DTS:X™
- DTS-HD Master Audio™
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
- RS-232 Serial interface for use with an automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- IR remote control
- Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration
- Field-updatable firmware via web server interface
- Can be placed on a shelf or mounted in a standard 19-inch wide rack
The Gefen 4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT 2.0, and POH routes eight 4K sources to any combination of nine 4K displays. It features eight HDMI inputs, one HDMI output for local viewing/monitoring, and eight HDBaseT™ 2.0 outputs. The matrix comes in a rack-mountable enclosure with detachable rack-ears for shelf-top placement. Low profile, surface-mountable Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.
HDBaseT Support
The HDBaseT™ 2.0 outputs extend AV and controls up to 100m at 4K to eight receivers installed at remote viewing locations. Gefen’s implementation of the new HDBaseT 2.0 Colligo™ platform ensures an even more robust and resilient connection than the industry standard HDBaseT™. HDBaseT™ extension between the matrix and the eight included receivers supports HDMI, 2-way IR, RS-232, and Ethernet. IR from viewing locations to the sources can be routed independent from video if need be. POH (Power Over HDBaseT™) technology provides power to the receiver units and other POH-class-compliant devices, using the same CAT-5 cable that extends the HDMI and control signals.
Video Support
Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. The Gefen 8x9 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution)and is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
Audio Support
The GEF-UHD-89-HBT2 supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio.
Syner-G™ Support
The Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration. This matrix can be controlled via front panel buttons, a handheld IR remote, electrical IR, RS-232, Telnet, UDP, and Gefen’s intuitive and user-friendly web server interface. An easy-to-read, super-bright OLED front panel display indicates routing status and IP settings.
Specifications

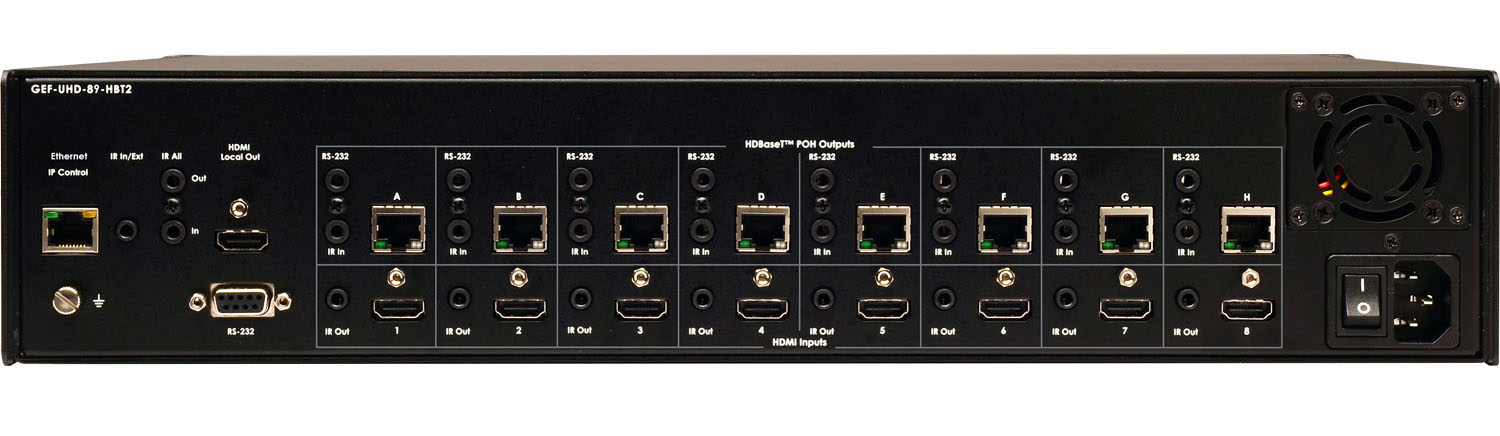

- Maximum Pixel Clock:
300 MHz
Matrix:
- HDMI Input Connectors:
(8) Type A 19-pin female, locking
HDMI Output Connector:
(1) Type A 19-pin female, locking
HDBaseT¬ 2.0 POH Output Connectors:
(8) RJ-45
RS-232 serial port - control:
(1) DB-9, female
RS-232 serial ports - extension:
(8) 3.5mm mini-stereo jack
IR In/Ext Ports - extension:
(9) 3.5mm mini-stereo jack
IR In/Ext Port - control:
(1) 3.5mm mini-stereo jack
IR Out Ports - extension:
(9) 3.5mm mini-mono jack
Ethernet Port - IP Control & extension:
(1) RJ-45
AC Power Inlet:
(1) IEC type
IR Extender type:
EXT-RMT-EXTIRN (not included)
IR Sensor:
(1), located on front panel
Display:
OLED, 2 rows, 20 characters per row
Power Button/Indicator:
(1) tact-type, bi-color blue/orange backlight
Control Buttons/Indicators:
(7) tact-type, blue backlight
Power Supply:
100V to 240V AC
Rack mounting requirements:
Standard 19" rack, 2U high
Dimensions (excluding rack ears and connectors, W x H x D):
17.25" x 3.5" x 15.75" (440mm x 89mm x 400mm)
Net Unit Weight:
22 lbs. (10.0 kg)

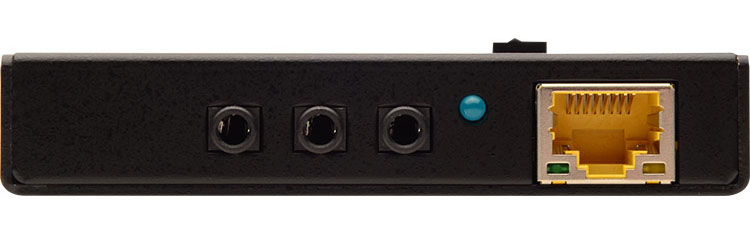

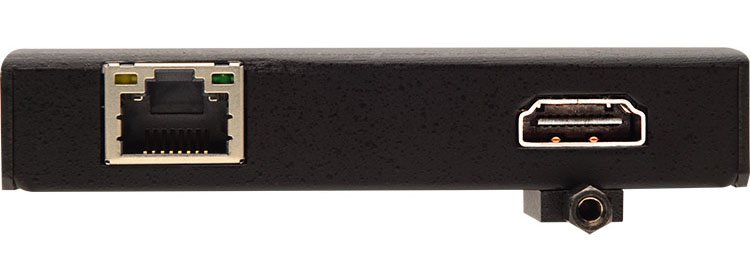

Receiver:
- HDMI Output Connector:
(1) Type A 19-pin female, locking
HDBaseT 2.0 POH Input Connector:
(1) RJ-45
RS-232 serial port - extension:
(1) 3.5mm mini-stereo jack
IR In/Ext Port - extension:
(1) 3.5mm mini-stereo jack
IR Out Port - extension:
(1) 3.5mm mini-mono jack
Ethernet Port - extension:
(1) RJ-45
IR Extender type:
EXT-RMT-EXTIRN (not included)
Dimensions (excluding brackets and connectors, W x H x D):
3.50" x 0.65" x 5.65" (88mm x 16mm x 143mm)
Net Unit Weight:
0.6 lbs. (0.25 kg)
System:
- Power Consumption:
175W
Operating Temperature:
+32 to +122 °F (0 to +50 °C)
Operating Humidity:
5% to 90% RH, non-condensing
Storage Temperature:
-4 to +140 °F (-20 to +60 °C)
Storage Humidity:
5% to 95% RH, non-condensing
MTBF:
50000 hours
In The Box
| 4K Ultra HD 8x8 Matrix for HDMI w/ HDCP 2.2, HDBaseT, & POH (GEF-UHD-89-HBT2) | 1 |
| 4K Ultra HDBaseT Receiver HDCP 2.2 & POH w/ Ethernet, RS-232, & 2-way IR (GEF-UHD-HBT2) | 8 |
| IR Remote Control (RMT-89) | 1 |
| Mini Phone to DB9 adapter (M-F) (ADA-MP-2-DB9-MF-AB) | 8 |
| Mini Phone to DB9 adapter (M-M) (ADA-MP-2-DB9-MM-AB) | 8 |
| IEC-type AC Power Cord (CAB-POWERCORD-xx) | 1 |
| Set of Rack Ears (RACK-AB-2U-BLK) - attached | 1 |
| L-shaped Brackets (BKT-L-401510-AB) | 16 |
| Screws for BKT-L-401510-AB (SCR-M3-05-06-PFH-ZP-AB) | 40 |
| Brackets for Locking HDMI (BKT-HD-LCK-100418-BZP-AB) | 8 |
| Quick-Start Guide (QSG-GEF-UHD-89-HBT2) | 1 |
