Gefen EXT-DVIKA-LANS

Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DVIKA-LANS-TX & RX support VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz).

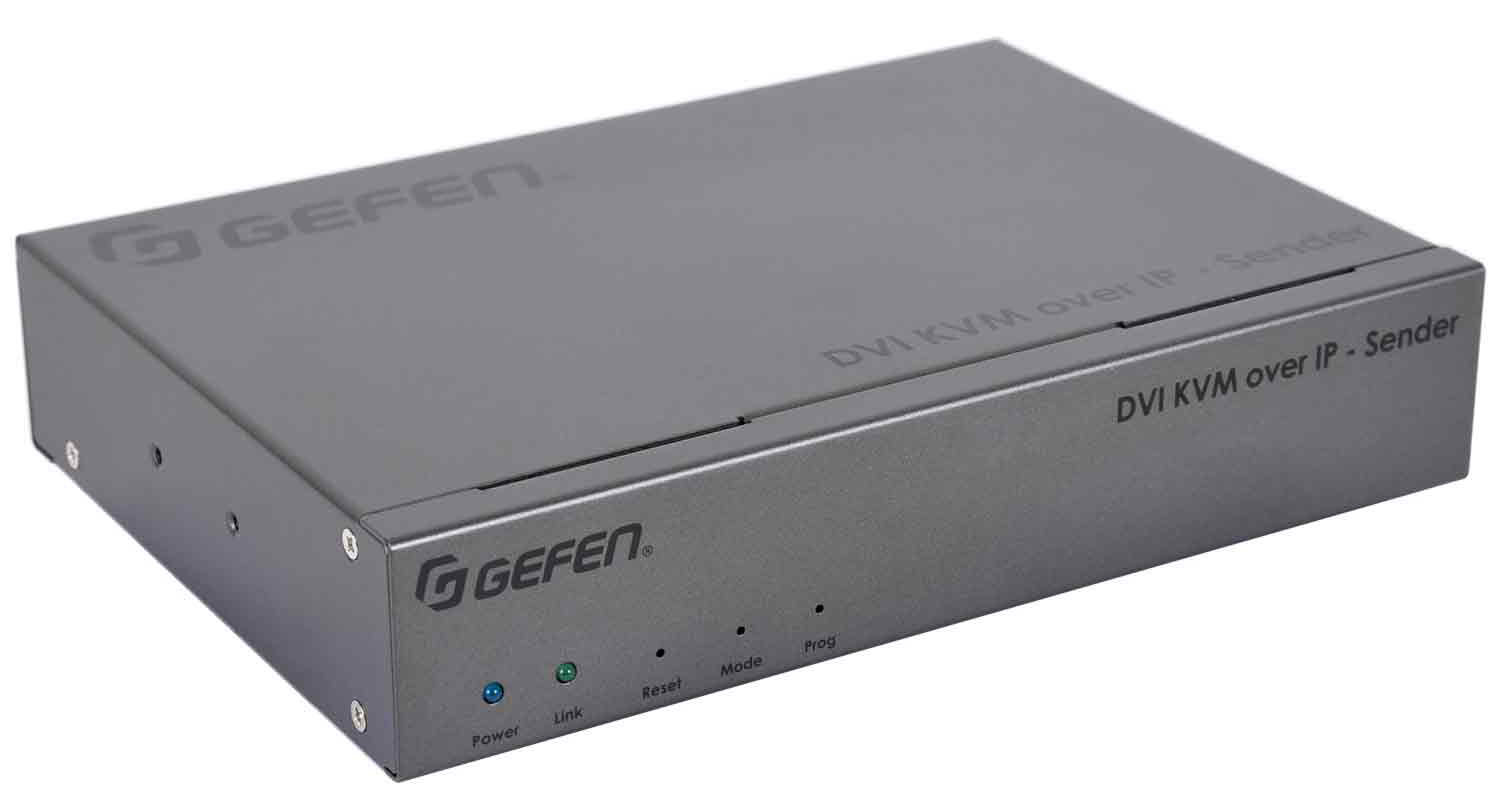

The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. When used in HDMI mode, digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system, enhancing the impact of presentations. The Receiver’s integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels, keyboard and mouse, and a variety of supported devices. This feature, along with analog audio inputs and outputs, make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility, the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers.

The new KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations, eliminating the inherent limitations of earlier systems. Power-over-Ethernet allows the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies. When used in conjunction with the EXT-CU-LAN Matrix Controller, system configuration is automated and quick. Its MFU (Mass-Firmware-Update) feature keeps the entire system up-to-date without the need to access and upgrade each unit separately. Enhanced network security by separating the control and AV networks is also made possible with the EXT-CU-LAN. Other control options include front panel buttons, web server interface, Telnet, UDP, and the Gefen Keyboard Switching Controller software (available for download at www.gefen.com). Gefen’s Enhanced API provides added functionality and facilitates use with third party controllers. The Gefen Gen 2.0 AV over IP products have been specifically designed for use with the Gefen Syner-G™ software, available for download at www.gefen.com. The Gefen Syner-G™ Discovery and Show-Me features greatly simplify initial IP configuration. Each cable run from a Sender to a Receiver or from a Sender or Receiver to the network switch can be up to 100 meters (330 feet). A built-in 2-port Gigabit switch on the Receiver allows daisy-chaining of additional Receivers or other IP-enabled devices. In applications such as digital signage, where there is a need to replicate content on multiple displays, the ability to cascade Receivers removes the requirement for each cable to be run directly to the main network switch, thereby extending the range of these units far beyond the limits of a point-to-point video distribution system. The Sender and Receiver can be used as KVM extenders in a one-to-one system, or as nodes in a virtual matrix environment where any source can be routed to any or all displays, supporting up to 39,900 Senders and a combination of over 65,000 units. Applications include high performance AV and signage systems in sports bars, clubs, restaurants, board and huddle rooms, command and control centers, museums, airports, classrooms, auditoriums, hotels, and retail establishments. The Sender features a 1U tall and half-rack-width enclosure, perfect for rack-mounting using the Gefen EXT-RACK-1U-GRY rack tray (available separately). It can also be surface-mounted or be placed on a shelf. The low-profile Receiver unit is also rack-mountable using the rack tray, and it can be surface-mounted or placed on a shelf. When used with a Gefen EXT-RMT-EXTIRN IR Extender module, it can be hidden away behind a display or inside the equipment closet.

Specifications

Video Input connector (Sender)
(1) DVI 29-pin, female, digital only

Video Output connector (Sender)
(1) DVI 29-pin, female, digital only

Video Output connector (Receiver)
(1) DVI 29-pin, female, digital only

Line Input (Sender)
(1) 3.5mm mini-stereo jack

Line Output (Sender)
(1) 3.5mm mini-stereo jack

Mic Input (Receiver)
(1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver)
(1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver)
(1) TOSLINK®

USB Host Interface port (Sender)
(1) USB Type B, female

USB Device ports (Receiver)
(2) USB 2.0 Type A, female
(2) USB 1.1 Type A, female

RS-232 port (Sender)
(1) DB-9, female

RS-232 port (Receiver)
(1) DB-9, male

IR Sensor (Receiver)
(1) Located on front panel

IR In/Ext (Sender/Receiver)
(1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver)
(1) 3.5mm mini-mono jack

IR Extender type
EXT-RMT-EXTIRN

Ethernet port (Sender)
(1) RJ-45, shielded, PoE

Ethernet ports (Receiver)
(2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver)
(1) tact-type

Channel Down button (Receiver)
(1) tact-type

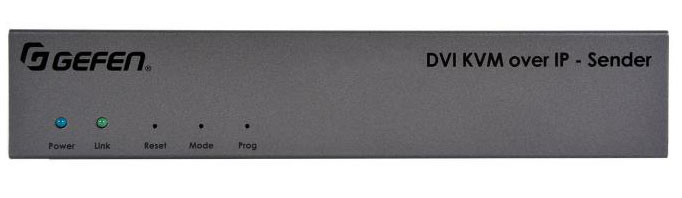

Mode button (Sender)
(1) tact-type, recessed

Reset button (Sender/Receiver)
(1) tact-type, recessed

Program button (Sender/Receiver)
(1) tact-type, recessed

Program Select switch (Sender/Receiver)
(1) slide-type, recessed

Link Indicator (Sender/Receiver)
(1) LED, green

Power Indicator (Sender/Receiver)
(1) LED, blue

Power Supply jack (Sender/Receiver)
5V DC, 2.5mm pin and 5.5mm barrel, locking

Power Requirement (Sender/Receiver)
5V DC, or PoE (802.3af standard)

Power Consumption Sender:
TBD
Receiver: TBD

Operating Temperature (Sender/Receiver)
+32 to +122°F (0 to +50°C)

Operating Humidity (Sender/Receiver)
5% to 90% RH, non-condensing

Storage Temperature (Sender/Receiver)
-4 to +185°F (-20 to +85°C)

Storage Humidity (Sender/Receiver)
0% to 95% RH, non-condensing

MTBF
Sender: 50000 hours
Receiver:50000 hours

Dimensions (W x H x D, without connectors or feet)
Sender: 8.4" x 1.7" x 5.9" (214mm x 43mm x 150mm)
Receiver: 8.4" x 1.0" x 5.9" (214mm x 25mm x 150mm)

Unit Weight
Sender: TBD
Receiver TBD

Shipping Weight
Sender: TBD
Receiver: TBD

* Features and specifications are subject to change without notice
** Pending features to be activated via an upcoming firmware update



Ordering Information

• EXT-DVIKA-LANS-RX


  DVI KVM over IP - Receiver Package


  In The Box




  Receiver unit (EXT-DVIKA-LANS-RX)	1
  5V 4A Power Supply (EXT-PS54AULPN-6)	1
  AC Power Cord (CAB-POWERCORD-xx)	1
  Self-Adhesive Rubber Feet	4
  L-Shaped Mounting Brackets	2
  Machine screws for L-Shaped Mounting Brackets	4
  Machine screws for EXT-RACK-1U-GRY (sold separately)	2
  Quick-Start Guide	1





• EXT-DVIKA-LANS-TX


  DVI KVM over IP - Sender


  In The Box




  Receiver unit (EXT-DVIKA-LANS-RX)	1
  5V 4A Power Supply (EXT-PS54AULPN-6)	1
  AC Power Cord (CAB-POWERCORD-xx)	1
  Self-Adhesive Rubber Feet	4
  L-Shaped Mounting Brackets	2
  Machine screws for L-Shaped Mounting Brackets	4
  Machine screws for EXT-RACK-1U-GRY (sold separately)	2
  Quick-Start Guide	1
