S-CONNECT - Beacon AV-9525

Support HDMI 1080p or DVI 1920 x 1200 resolution.
Based on Gigabit Ethernet Switch, easy cabling, easy installation, easy maintain.
Support one-to-one (Unicast), one-to-many (Multicast) for AV real time broadcasting.
Support many-to-many Group Broadcasting if the Ethernet switch enabled the IGMP.
Support USB for KVM PC control, you can attach keyboard, mouse, touch screen, storage at the Receiver site to control the PC at the Transmitter site.
The Encoder/Decoder engine built with Scaler function, multiple RXs are flexible to be configured as Video Wall displays with 180, 270KRotation.
Tx Supports HDMI loop out for local display.
Support 3.5 mm stereo audio, you can use speaker/microphone at the Receiver.
Support IR option, you can use the IR remote control at Receiver site to control the set-top box at the Transmitter site.
Support RS-232 bridge option, you can send RS-232 data in between PC and screens.
Pure hardware design, plug-and-play, no any additional software installation required.
Built-in HTTP for the IP address, device name, Multi/Unicast, Baud Rate, c settings.
Provide Connection Manager Software for Transmitters/Receivers Connection Management.
Provide Video Wall Manager Software for Video-Wall Configuration and Operation Management.
Support DC 9 ~ 32V power supply for industrial application.
FCC, CE, RoHS compliant.

The AV-9525 is a perfect extension solution for HDMI/DVI with USB 2.0 and Stereo Audio, RS232, IR over Gigabit IP Ethernet.

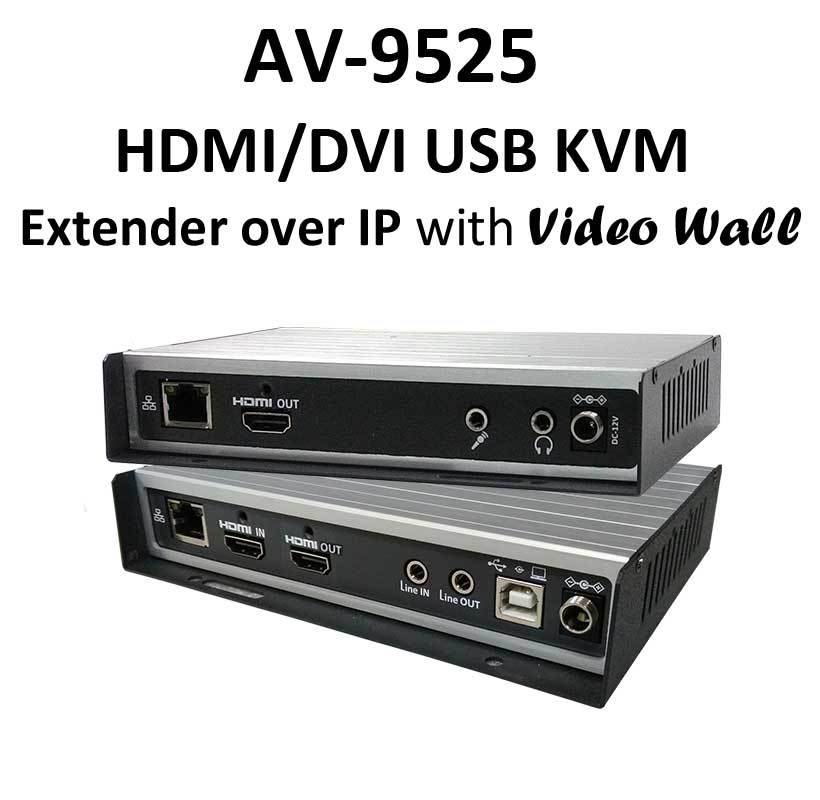

The AV-9525 is a perfect solution for HDMI/DVI with USB 2.0 and Stereo Audio, RS232, IR over Gigabit IP Ethernet. The system includes AV-9525T Transmitter (TX) and AV-9525R Receiver (RX). The TX connects to PC or Blu-ray player for the HDMI source, connects to a HDMI screen for the local loop out display. The RX connects to display, speaker, microphone, and USB devices.

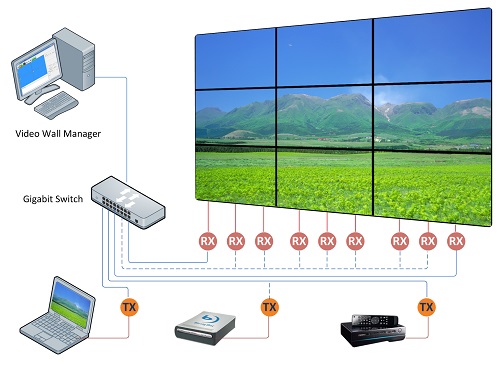

The solution is based on the standard IP technology, the TX converts input signals (video, Audio, USB, c) to IP packets and Multicast/Unicast to Gigabit Ethernet switch. On the other end of RXs, receiving IP packets from Ethernet switch then converts back to HDMI/DVI, Stereo Audio, USBc and send to display, speaker, USB devices. The Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be configured as Video-Wall displays. Perfect for AV Broadcasting, KVM Matrix Control, Video-Wall applications like informational displays, entertainment, boardrooms, courtrooms, medical, military, and education digital signage.

SPECIFICATION

Model No.		Transmitter	Receiver
Model No.		AV-9525T	AV-9525R
Connectors	HDMI connector for HDMI/DVI input	1	N/A
	HDMI connector for HDMI/DVI output	N/A	1
	HDMI Loop Out	1	N/A
	Power	DC 9~32V, 15W	DC 9~32V, 20W
	Network Port	1 x RJ45 Gigabit
	USB Upstream (to PC)	1 x USB-B	N/A
	USB to Devices	N/A	2 x USB-A 2.0 + 2 x USB-A 1.1
	Mounting Holes	Yes
	3.5mm Line-In	1	N/A
	3.5mm Mic-In	N/A	1
	3.5mm Line-Out	1
	IR remote control (option)	1 x IR Blaster	1 x IR Receiver
	RS-232	Yes
Resolution		1080p or PC 1920 x 1200 @ 60Hz
Inter-connect Cable		CAT 6 / 7
Environment	Operation Temp.	0 ~ 50°C
	Storage Temp.	-20 ~ 85°C
	Humidity	0 ~ 80% Non-condensing
Physical Properties	Material	Metal
	Weight	453g	453g
	Dimension (L x W x H)	150 x 110 x 28 mm	150 x 110 x 28 mm

Beacon AV-9525 Datasheet (1115.3 kB)
