- Support 1080p or 4K2K HDMI (3840 x 2160) resolution..
- All TX/RX are based on Gigabit Ethernet Switch, easy cabling, easy installation, easily maintain.
- Support one-to-one (Unicast), one-to-many (Multicast) for Audio/Video real time broadcasting.
- Support many-to-many Group Broadcasting if the Ethernet switch enabled the IGMP.
- Support USB for KVM PC control, you can attach keyboard, mouse, touch screen, storage at the Receiver site to control the PC at the Transmitter site.
- The 4K2K Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be configured as Video-Wall displays with 180, 270KRotation.
- Support both HDMI and 3.5mm stereo audio, you can use speaker/microphone at the Receiver.
- Support IR option, you can use the IR remote controller at Receiver site to control the set-top box at the Transmitter site.
- Support RS-232 bridge option, you can send RS-232 data in between PC and screens.
- Pure hardware design, plug-and-play, no any additional software installation required.
- Built-in HTTP for setting the IP address, Multi/Unicast, Baud Rate, °c.
- Provide Connection Manager Software for Transmitters/Receivers connection Management.
- Provide Video-Wall Manager Software for Video-Wall Configuration and Operation Management.
- FCC, CE, RoHS. compliant
The AV-9521 4K video wall controller supports HDMI and VGA for signal input and output. It offers the best video quality (1080p ~ 4K) and the most flexible scalability (8x8 display).
It supports KVM functions in addition, which is suitable for Multi-User, Multi-Server management.

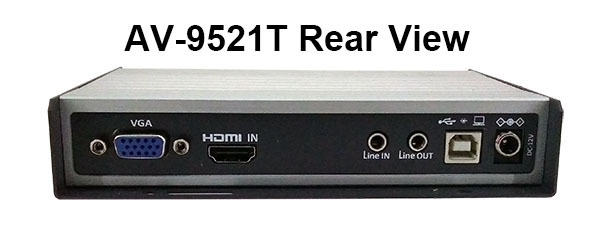

The AV-9521 is a perfect solution for 4K2K HDMI and 1080p VGA with USB/IR/RS232 over IP Ethernet. The system includes AV-9521T Transmitter (TX) and AV-9521R Receiver (RX). The TX connects to PC or Blu-ray player for the 4K2K HDMI/VGA source, the RX connects to display, speaker, microphone, and USB devices.

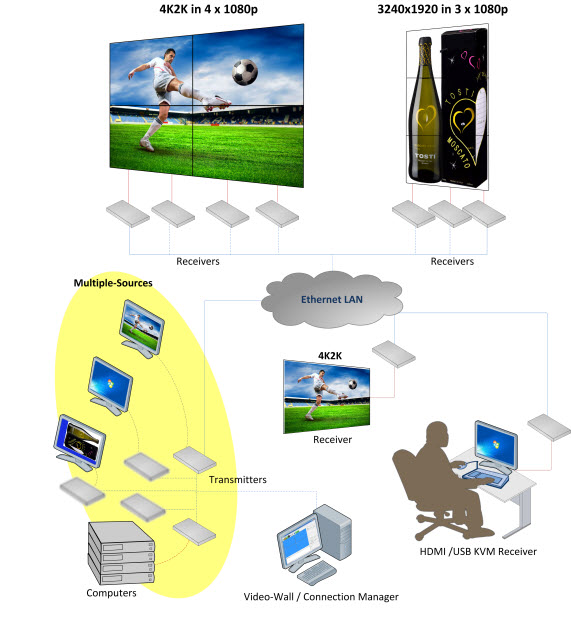

The solution is based on the standard IP technology, the TX converts input signals (HDMI, VGA, Audio, USB, c) to IP packets and Multicast/Unicast to Gigabit Ethernet switch. On the other end of RXs, receiving IP packets from Ethernet switch then converts back to HDMI, Audio, USBc and send to display, speaker, USB devices. The 4K2K Encoder/Decoder engine built with Scaling function, multiple RXs are flexible to be configured as Video-Wall displays. Perfect for AV Broadcasting, KVM Matrix Control, Video-Wall applications like informational displays, entertainment, boardrooms, courtrooms, medical, military, and education digital signage.
| SPECIFICATION |
| Model No. | Transmitter | Receiver | |
| AV-9521T | AV-9521R | ||

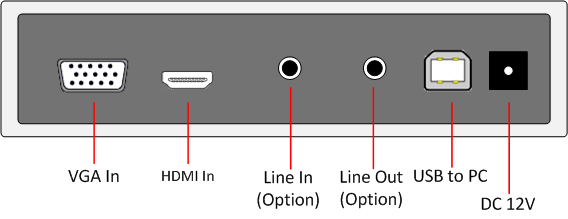

| Connectors | HDMI Input | 1 | N/A |
| VGA Input | 1 | N/A | |
| HDMI Output | N/A | 1 | |
| VGA Output | N/A | 1 | |
| Power | DC 9~32V, 15W | DC 9~32V, 20W | |

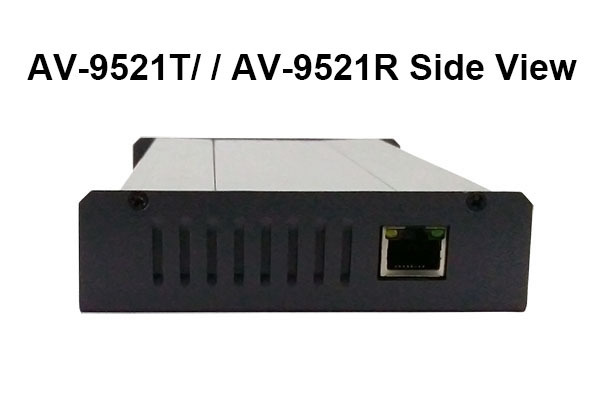

| Network Port | 1 x RJ45 Gigabit | ||
| USB Upstream (to PC) | 1 | N/A | |
| USB to Devices | N/A | 2 x USB 2.0 + 2 x USB 1.1 | |
| Mounting Holes | Yes | ||
| 3.5mm Line-In | 1 | N/A | |
| 3.5mm Mic-In | N/A | 1 | |
| 3.5mm Line-Out | 1 | ||
| IR remote control (option) | 1 x IR Blaster | 1 x IR Receiver | |
| RS-232 | Yes | ||
| Resolution | 1080p or 4K2K (3840 x2160@30Hz) | ||
| | CAT 6 / 7 | ||
| | | 0 ~ 50°C | |
| Storage Temperature | -20 ~ 85°C | ||
| Humidity | 0 ~ 80% Non-condensing | ||
| Physical Properties | Material | Aluminum | |
| Weight | 453g | 458g | |
| Dimension (L x W x H) | 150 x 110 x 28 mm | 150 x 110 x 28 mm | |
