Beacon DV-814T / DV-811R
DVI extender over Cat6
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Supports PC resolutions up to 1920 x 1200, or Full HD 1080p.
- Extend one DVI-D source to 4 displays.
- ECE R10 (CISPR25) approval which is a certification for European Bus Transportation.
- Auto-Equalize and quantize the DVI-D signals over single CAT6 cable for zero signal loss.
- Supports HDCP pass through.
- Designed for industrial and noisy environment operation.
- Easy install, without any software or driver installation.
- 12 ~ 24V DC power input.
- Metal case with mounting holes.
- Pure hardware, plug and play design.

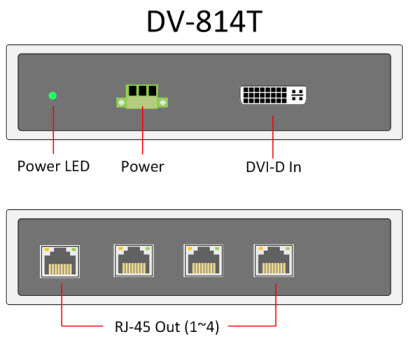

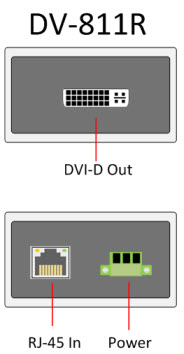

The DV-814T is a 4-port DVI over Cat6 Transmitter that can link to 4 x DV-811R Receivers for sending one DVI-D source to 4 displays at the same time. The products have been passed EN 50498:2010 and ISO 7637-2:2004 of European Bus Transportation certification for industrial and noisy environment operation.
| SPECIFICATION |
| Model No. | Transmitter | Receiver DV-811R | |
| Connector | DVI In | 1 | N/A |
| DVI Out | N/A | 1 | |
| Power | External DC 12V IN | ||
| Unit to Unit | 4 x RJ-45 Out | 1 x RJ-45 In | |
| Power LED | 1 (Green) | N/A | |
| Signals | DVI with HDCP support | ||
| Video supports | Up to WUXGA 1920 x 1200, HD 1080p | ||
| Distance | HDTV (1920 x 1200): 40M (131 ft.) | ||
| Certification | EN 50498:2010 12 VDC, ISO 7637-2:2004 (European Bus Transportation Certification EN 55025:2008) | ||
| System Cable | CAT6, 23 AWG, Solid Wire 4 pairs, TIA568B RJ-45. | ||
| Power Consumption | DC 12V 1A | DC 12V 0.5A | |
| Environment | Operating Temp. | 0 ~ 70°C | |
| Storage Temp. | -20 ~ 85°C | ||
| Humidity | 0 ~ 80% RH,NC | ||
| Physical properties | Housing | Metal (Black) | |
| Dimensions (L x W x H) | 150 x 111 x 25mm | 63 x 55 x 20mm | |
| Weight | 563g | 110g | |
