Beacon DV-961F
HDMI/DVI with Audio Extender over single Optical Fiber
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Support PC HDMI 1080p or DVI-D 1920x1200@60Hz resolution with Low Latency.
- Support both Single- (1500m) and Multi-Mode (550m) Optical Fiber cable.
- Only One Fiber Cable Required for DVI + Audio + RS232.
- Support bi-directional audio, you can have speaker and microphone at Receiver site.
- Support 2-way RS-232 extension for display or system control.
- Pure hardware design, plug-and-play, no additional software installation is required.

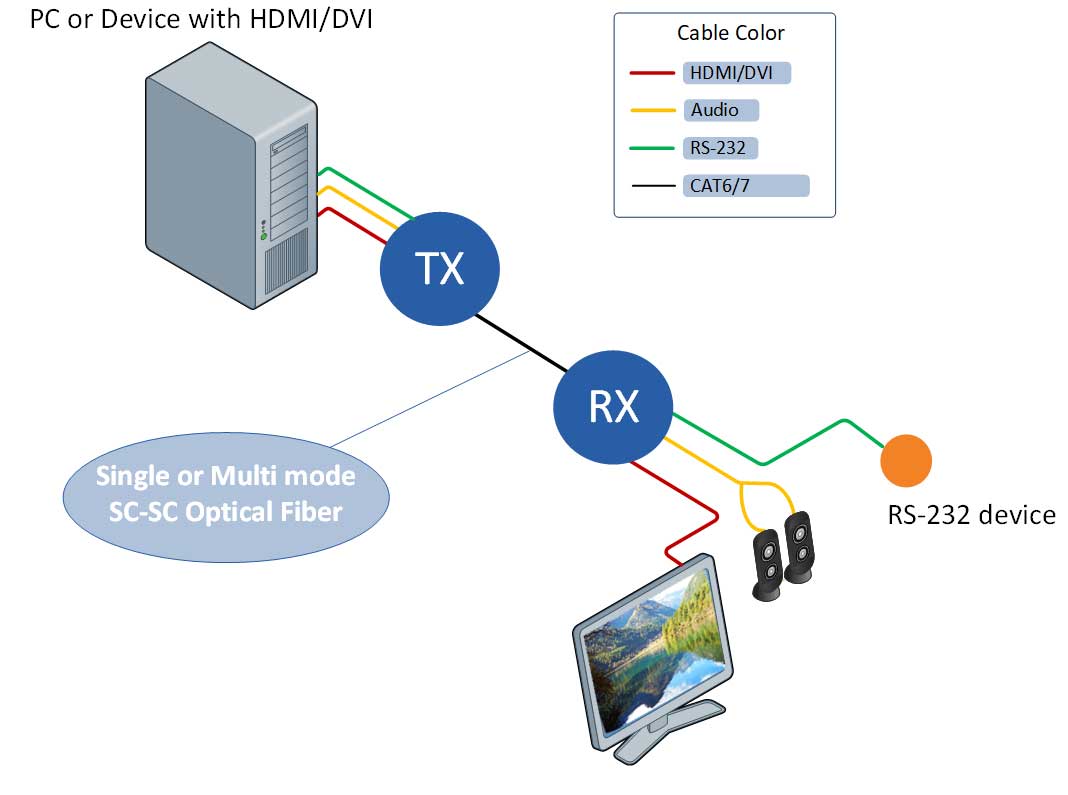

The DV-961F is a perfect solution that extends WUXGA (1920 x 1200) DVI-D with 3.5mm stereo audio across single Optical Fiber. The extender contains a DV-961FT transmitter and a DV-961FR Receiver. Based on single-core Optical Fiber Module Transceiver with adopt visually lossless video compression algorithm technology, the device achieves razor sharp video and audio quality in noisy environments. It also supports 2-way RS-232 extension.
| SPECIFICATION |
| Model No. | Transmitter | Receiver | |||
| DV-961FT | DV-961FR | ||||
| Connectors | HDMI/DVI-D Input | 1 | N/A | ||

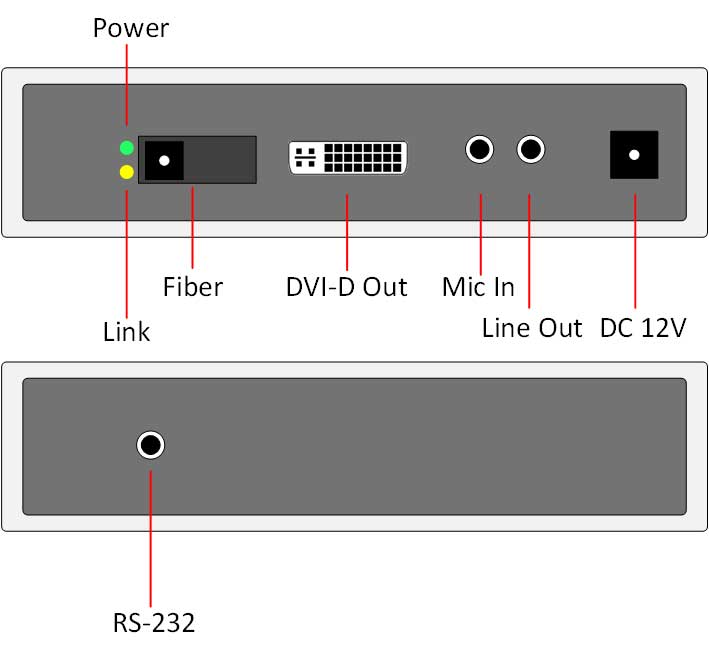

| HDMI/DVI-D Output | N/A | 1 | |||
| Audio | 1 x Line-in and 1 x Line-out | 1 x Line-out and 1 x Mic-in | |||
| Power | 12V/2A | ||||
| System Port | SC connector | ||||
| RS-232 | 3.5mm-to-DB9 adapter cable provided | ||||
| Resolution | 1920 X 1200 @60Hz (or 1080p) | ||||
| Inter-connect Cable | Single or Multi mode SC-SC Optical Fiber | ||||
| Environment | Operation Temperature | 0 ~ 70°C | |||
| Storage Temperature | -20 ~ 85°C | ||||
| Humidity | 0 ~ 80% Non-condensing | ||||
| Physical Properties | Material | Metal with standard 100 x 100 VESA mount support | |||
| Weight | 449 g | 457 g | |||
| Dimension (L x W x H) | 152 x 110 x 29 mm | ||||
