Beacon BE-608S

The BE-608S CAT5 KVM Switch lets you access and control 8 separate servers and combine with innovative KVM Transmitter Dongles directly connects to each server, eliminating cable clutter and the need for multiple consoles. A single BE-608S can access and control up to 8 PCs. Multiple BE-608S can be linked together and control/access up to 128 PCs.

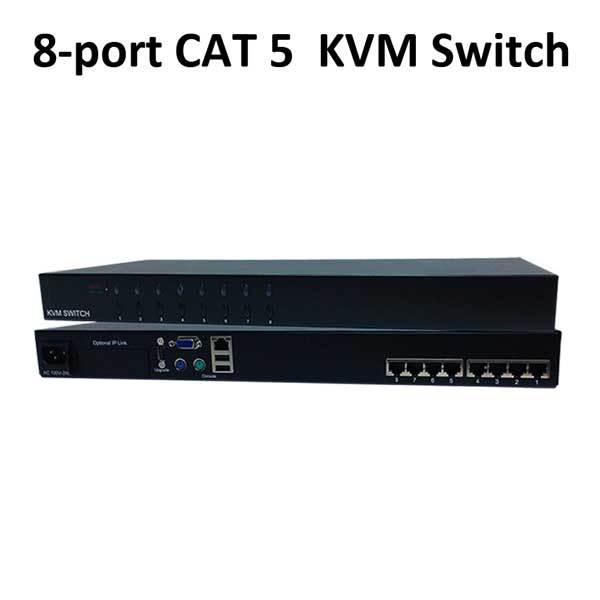

The BE-608S 8-port CAT5 KVM Switch is a powerful, compact, cutting-edge, cost-effective rack mountable KVM switch. The 1U sized design features CAT5 cable to eliminate cable clutter, and powerful on-screen display (OSD) control and management. You can access and control up to 8 separate servers, or you can leverage installation by connecting to existing KVM units.

SPECIFICATION

Model No.		BE-608S KVM Switch

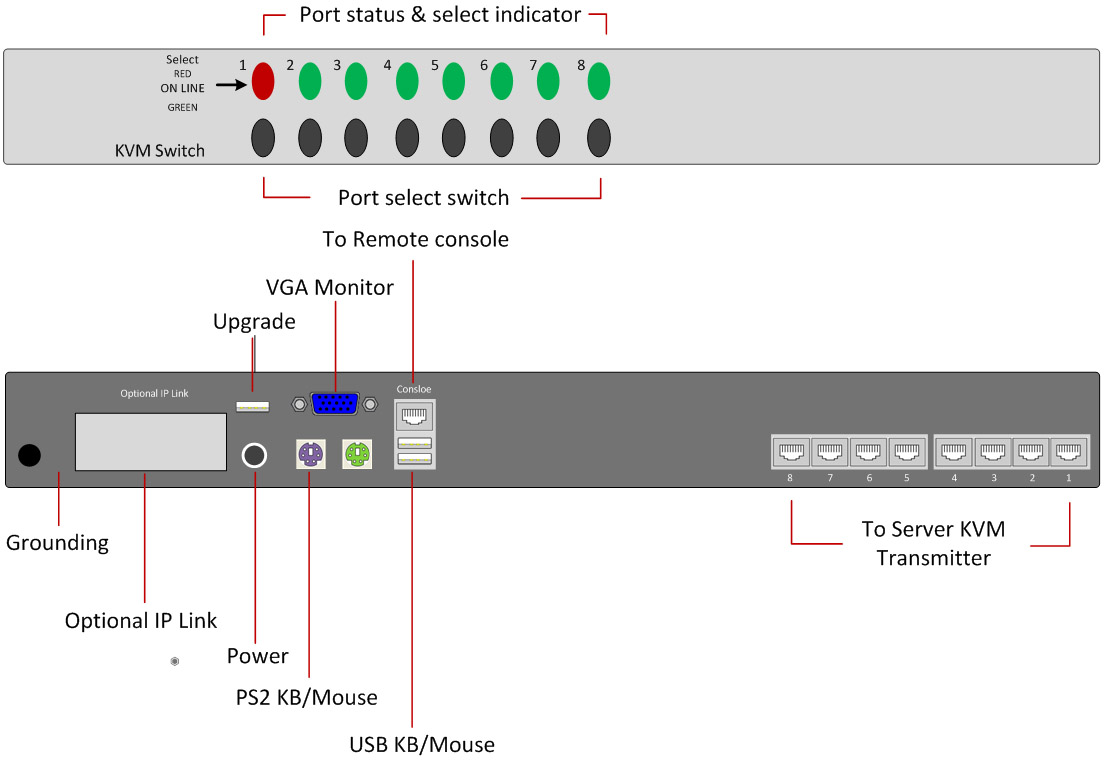

Connector	Monitor	HDD15F x1
	Keyboard	MiniDin6F x1
	Mouse	MiniDin6F x1
	USB Upgrade	Type B F x1
	System In	RJ-45 x 8
	Remote Console Link	RJ-45 x1
	Power	Jack x1
	LED Indicator	Dual color LED x 8
	Switch button	x 8
Control		OSD/KB
Inter-connect Cable		CAT5
System Cable		CAT5 (minimum), FTP Solid Wire 2x4x24 AWG, Standard 568B RJ-45 connector

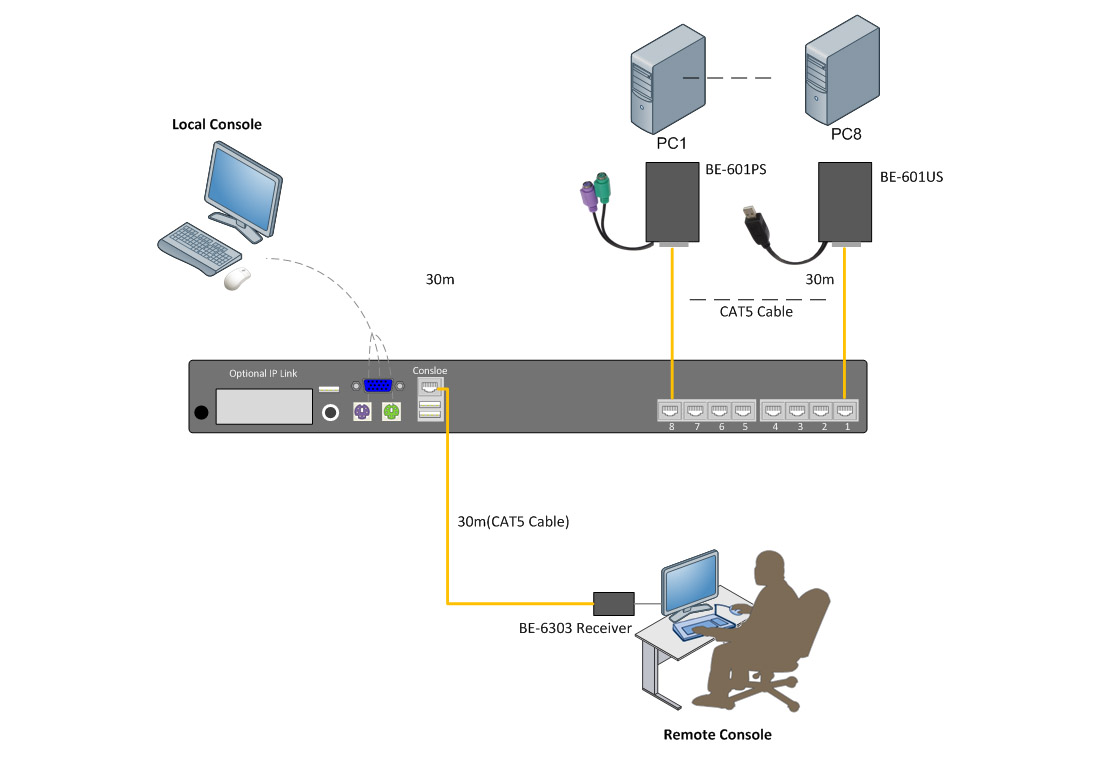

Distance		Server to KVM Switch: Up to 20 m (up to 66 ft.) KVM Switch to Remote Console: Up to 300 m (up to 1000 ft.)
Video		1600 x 1200 @ 60 Hz (Subject to cable and VGA signal quality)
Environment	Operation Temperature	0~60°C
	Storage Temperature	-40~70°C
	Humidity	0~80% Non-condensing
Physical Properties	Material	Metal
	Weight	1375 g
	Dimensions (L x W x H)	Dimension 430 mm x 158 mm x 45 mm
