Beacon HV-814
4-port 3D HDMI Splitter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Supports PC resolutions up to 1920 x 1200 @60Hz, HD: 1080p
- Supports 1080p digital signals transmission without any compression
- Single HDMI system cable for HDMI and HDCP pass through
- HDMI 1.4a /HDCP Compliant
- 3D display support
- Operation frequency up to 340MHz (10.2Gbps)
- Easy install, without any software or driver installation

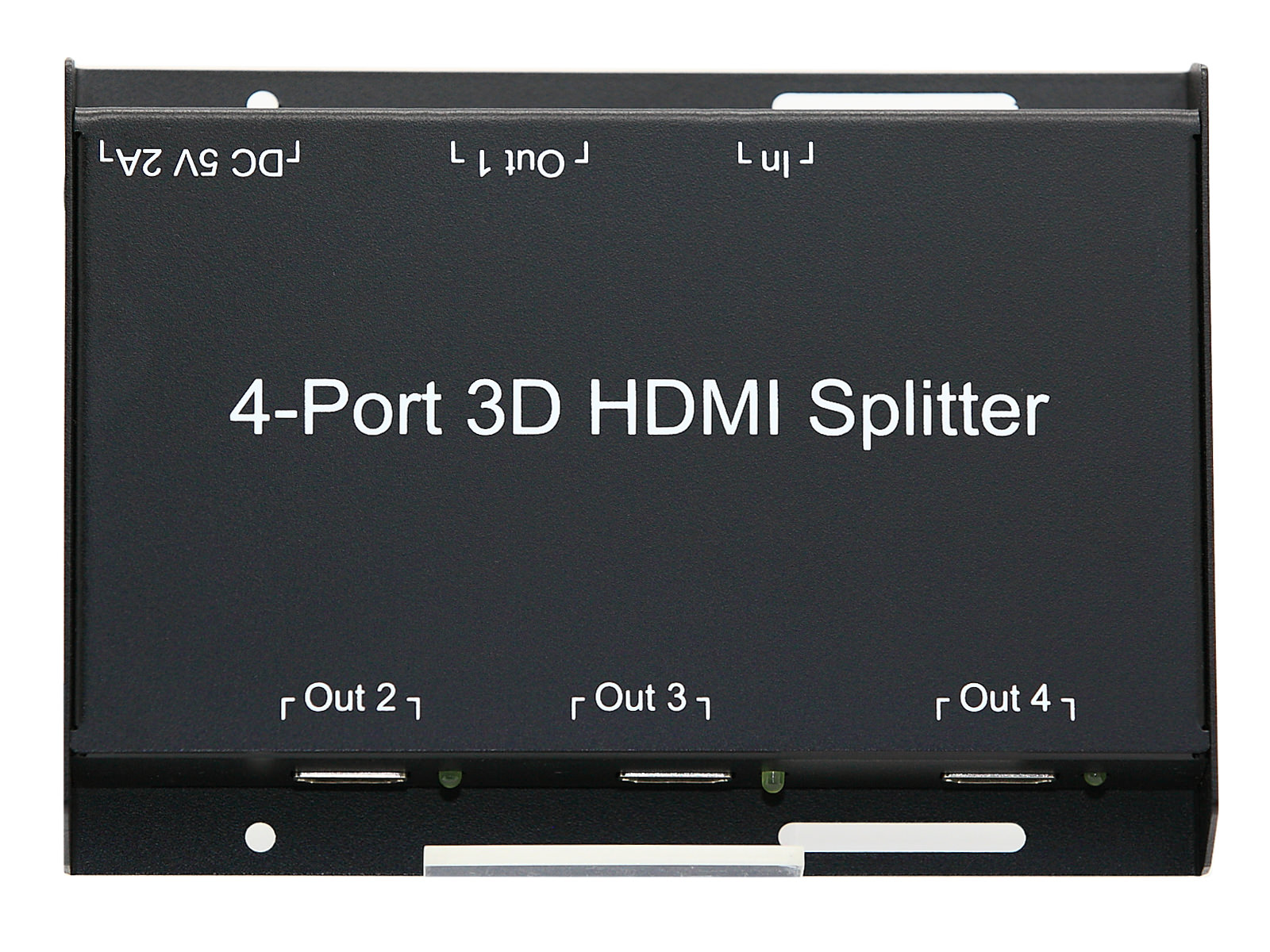

The HV-814 is a 4-port HDMI Splitter which consists of 1 HDMI input port and 4 HDMI output port. The HV-814 is a perfect solution for sending one HDMI source to 4 multiple displays at the same time. It fully compliant with HDCP and 3D supports all HDMI Display, such as Blu-Ray players, Sony PlayStation 3 (PS3), 3D display, satellite set-top boxes and all type of HDMI display. It can also support HDMI format 1.4a.
| SPECIFICATION |
| Model No. | HV-814 | |
| Connectors | HDMI IN | 1 |
| HDMI OUT | 4 | |
| Plug LED | 4 x Yellow | |
| Unit to Unit | 4 x HDMI | |
| LED | Power | 1 x Green |
| Signals | HDMI 1.4a | |
| 3D | Yes | |
| Video supports | Up to 1920x1200 @ 60Hz or 1080p | |
| Cables | HDMI Cable | |
| Power Consumption | DC 5V; 2A | |
| Operation Temperature | 0 ~ 70°C | |
| Storage Temperature | -20 ~ 85°C | |
| Humidity | 0 ~ 80% Non-condensing | |
| Material | Metal (Black) | |
| Weight | 413g | |
| Dimension (L x W x H) | 15.2 x 11 x 2.5 cm | |
